Form P-UEAS, P/N 269865R4, Page 4
Disconnect
Switch,
page 3
Door Switch,
page 3
25 - Venter Motor
and Wheel Assy
(See exploded view.)
(8) Screws,
P/N 221178
20 - Flue Wrapper Side Gaskets
21 - Flue Wrapper Top/Btm Gaskets
22 - Flue Wrapper Assy
23 - Venter Inlet Gasket
24 - Venter Housing Assy
CODE Description 130 180 260 310
20 Flue Wrapper Side Gaskets (2) 221198 (2) 221199
21 Flue Wrapper Top/Bottom Gaskets (2) 221200
22 Flue Wrapper 220823 220824
23 Venter Housing Gasket 221164
24
Venter Housing Assembly (includes CODE 24A and CODE
3, Vent Temperature Limit
221520
24A Static Pressure Tap 116043
25 Venter Motor and Wheel Assembly 222648 221240
25A Venter Motor, A.O. Smith F48Y67A13 221159
25B Flat Washer (4) 204323
25C Motor Plate 221162
25D Motor Plate Gasket 221163
25E Slinger (smooth side must be flush against the motor plate) 221861
25F Venter Wheel 221172
25G Venter Wheel Housing 221173
25H Shaft Protector Gasket 221161
25J Shaft Protector 221160
25K Setscrew 222077
25C
25C/D
“B”
25D
25F/25G
25F
25H
25J
Stainless Nut,
(4) P/N 221179
25A
25B
(Size 130 only)
25E
25A

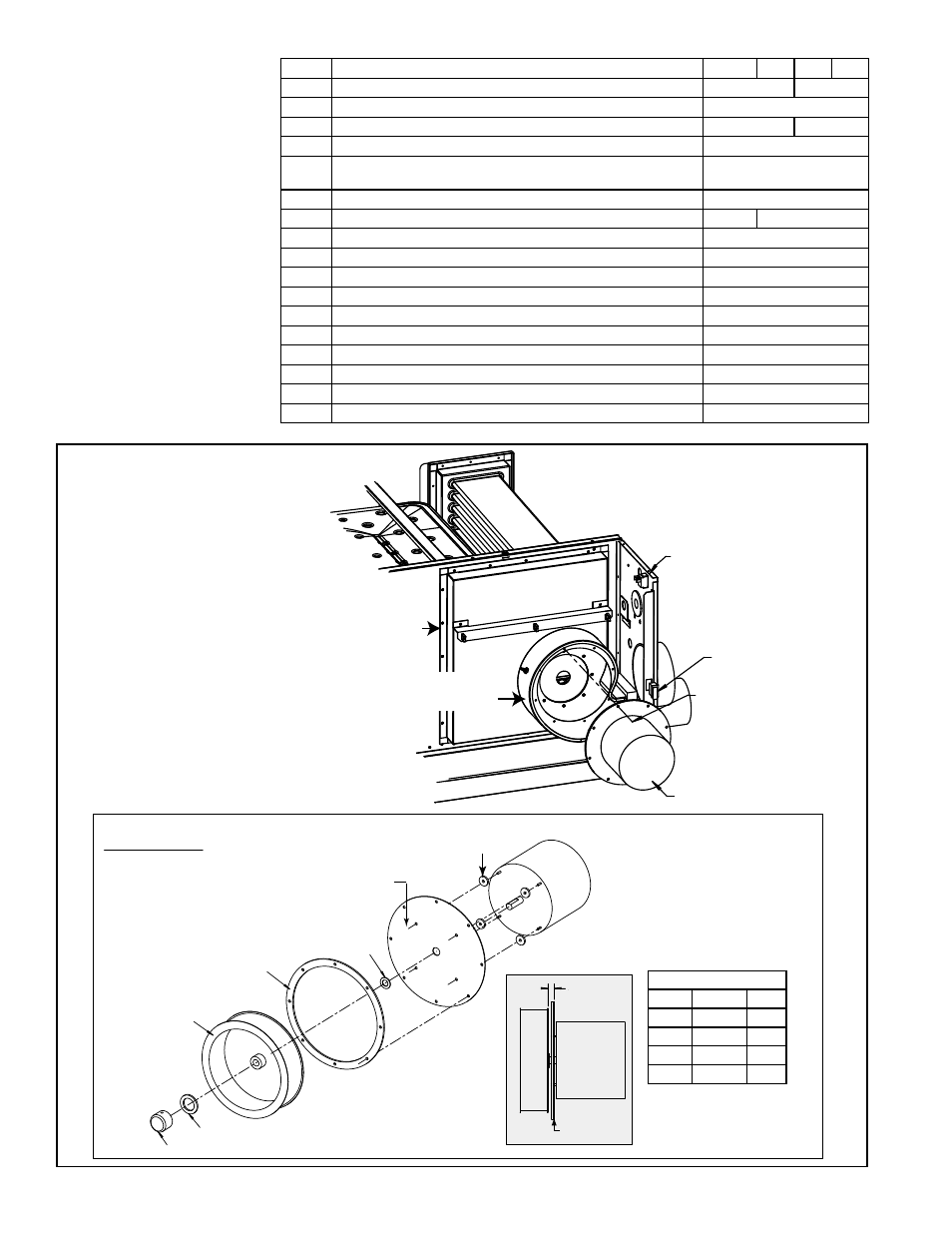

Exploded View of
CODE 25 - Venter Motor
and Wheel Assy
Dimension B
Size Inches mm
130 .312 7.9
180 .5 12.7
260 .5 12.7
310 .5 12.7
Flue Wrapper
and Venter
Components
