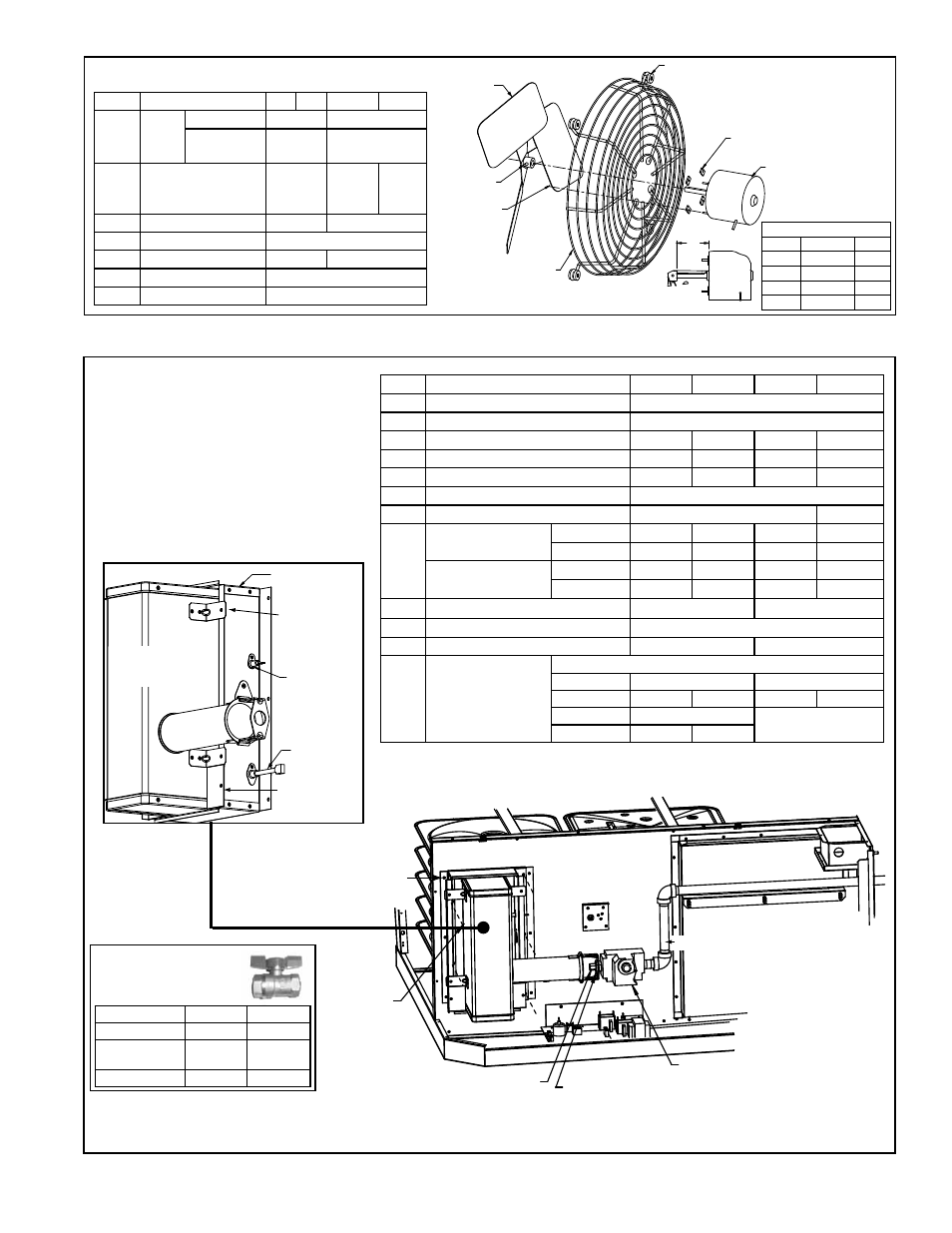

Form P-UEAS, P/N 269865R4, Page 5
Fan and Motor Components
CODE Description 130 180 260 310
30 Fan
Motor
115V 196246 196247
115V, AL14
(enclosed) 196824
196825
31
Fan Blade
(Setscrew torque
130±10 in/lbs)
195680 195683 209121
32 Fan Guard 170084 170086
33 Isolator (4) 196348
34 Motor Spacer N/A 204321
35 Flat Washer (4) 204323
36 Nut (4) 216942
30 -
Fan
Motor
31 - Fan
Blade
32 - Fan Guard
33 - Isolator
34 - Motor
Spacer
35 - Flat
Washer
36 - Nut
Setscrew
A
Dimension A
Size inches mm
130 2-3/8 60
180 2-3/8 60
260 2 51
310 1-3/8 35
CODE Description 130 180 260 310
38 DSI Electrode 175272
39 Flame Sensor 195292
40 Burner Inlet Plate 221165 221166 221167 221168
41 Burner Body Assembly 221476 195238 195241 195243
42 Burner Shield Assembly 195528 195529 195532 195534
43 Burner Supports (4) 196598
44 Burner Baffle (2) 197238 N/A
45
Natural Gas Orifice
P/N 211851 221263 196894 221264
Marking #3 6.2MM 7.6MM 0
Propane Orifice
P/N 120415 221265 196902 196903
Marking 3.3MM 25 14 8
46 Orifice Adapter 165701 194809
47 Pipe Nut, 1/2" 165702
48 Natural Gas Valve 260603 196981
49 Natural to Propane
Conversion Kit
Select Kit by Size & Valve Code - See page 2.
Valve Code Y2 or Z7 Y3 or Z8
Kit P/N 221442 221443 221444 221445
Valve Code 6E
Kit P/N 261647 261648
44 - Burner
Baffle
38 - DSI
Electrode
42 - Burner
Shield Assy
39 - Flame
Sensor
43 - Burner
Support
41 - Burner
Body Assy
Screws,
P/N 195638
40 - Burner
Inlet Plate
48 - Gas Valve
Manifold Assembly
45 - Orifice
46 - Orifice Adapter
47 - Pipe Nut
Burner and
Components and
Conversion Kits
Size 130, 180 260, 310
Option Pkg 15971 15972
Manual Shutoff
Valve
196910,
1/2”
196911,
3/4”
Union 1224, 1/2” 1101, 3/4”
CODE 50 - Manual
Shutoff Valve (Same
as Option CE1)
