table 6. P8Se Shipping Weight info
Model
nuMber
P8Se -
unit
SHiPPing
WeigHt
center oF gravitY
HeigHt -c-
(in incHeS)
-a- -b-
WitH baSe railS WitHout baSe railS
X36 375 29 20.5 35.0 30.76
X48 398 29 20.5 35.0 30.76
X60 437 27.25 23.5 43.0 39.3
note: To determine unit weight, subtract 21lbs from unit shipping weight.
top view
24.9
13.5
16
12
13.3
13.5
16
12
CG
A
47.5
.75" NPT Female
Drain Connector
B
DOWNFLOW
SUPPLY DUCT
OPENING
DOWNFLOW
RETURN DUCT
OPENING
23.5
back view
131/2
16
13 7/10
13 1/2
16
12 9/20
11 3/4 22 3/4
55 4/5
C
HORIZONTAL
SUPPLY DUCT
OPENING HORIZONTAL
RETURN DUCT
OPENING
4
CONDENSING
COIL
5
8
4
Side view
1 1/4 Ø Power Entry
1 3/4 Ø Power Entry (Capped)
22/25 Ø Control Wiring Entry
23 3/5
27 1/5
30
1 4/5
4

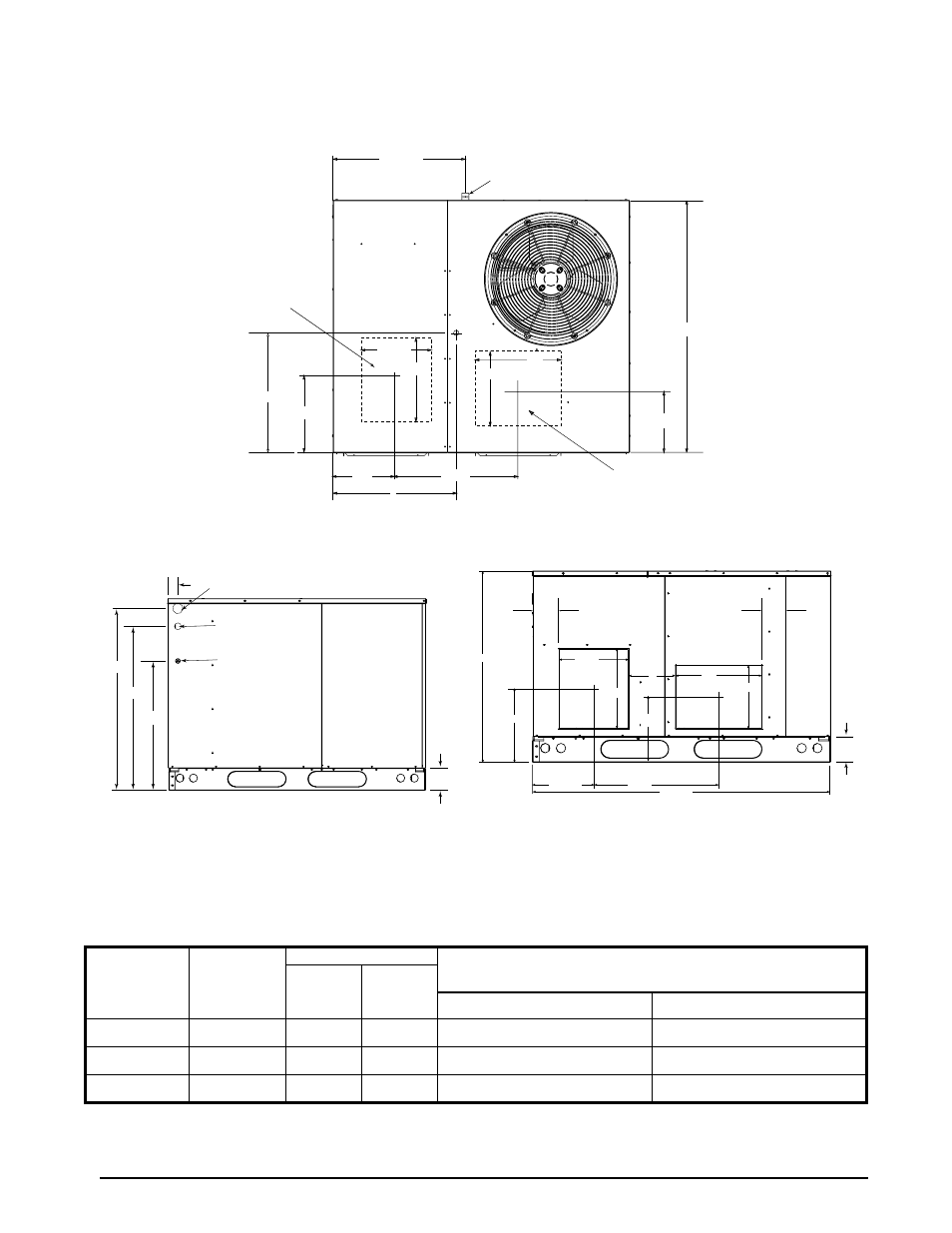

Figure 9. P8Se air conditioner dimensions
P8Se PHYSical & electrical data
