FIGURE 8 -
Re-position
pump/
junction box
assembly.
For shipping, pump/
junction box is
attached at the top.
Remove pump/
junction box from shipping
position (above) and re-attach
in “working” position
(illustrated).
45°
Airflow
to Space
Outside
Airflow
IMPORTANT: Cooling media is made
up of two different sheets of cooling
material. Each has its own unique
angle. When replacing the cooing
media, BE CERTAIN the 45° angle
slopes downward toward the incoming
outside air. If the media is not installed
properly, water blowoff from the
media pads will occur.

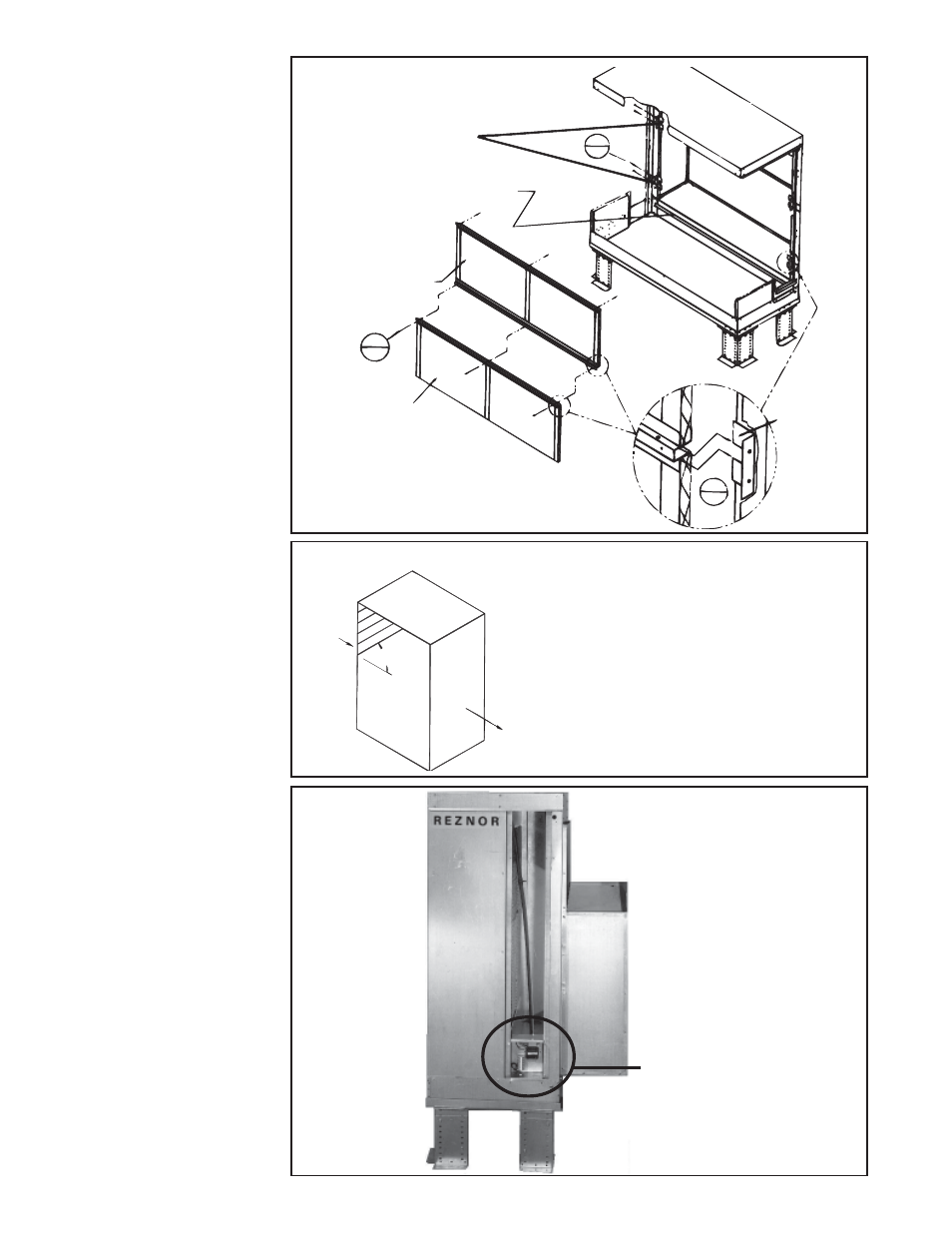

FIGURE 7 - Airflow Direction through the Media Pads
Install clamps on
one side of cooler
Catch Pad Mounting Trough
Catch Pad
Catch Pad
Catch Pad
Clamp
Step
3
Step
2
Step
1
FIGURE 6 - Installation
of Optional Moisture
Elimination Catch Pads,
Option ASA1
5. Installing
Optional
Moisture
Elimination
Pads (cont’d)
6. Re-Position
Pump/
Junction Box
Assembly
To avoid shipping damage, the
pump/junction box assembly is
attached to the top of the side
panel for shipment. Support the
pump and remove the four
screws that hold the assembly
in position. Re-position the as-
sembly as shown in FIGURE
8
and attach using the same
screws.
Replace Media
Pads (See FIGURE
5 and FIGURE 7,
page 5.)
Reverse procedure in FIG-
URE 5
to replace the media.
Media must be installed as
shown in FIGURE 7.
