APPLIES TO:
Models RGBL,RPBL,SSCBL,PGBL;
Models ADF/ADFH 700/1200; Model RBL
OPTIONS AS3, AS4, AS5, AND AS8
EVAPORATIVE COOLING MODULE
INSTALLATION/OPERATION/MAINTENANCE
FORM RZ/NA I-OPT-EC
OBSOLETES FORM 400EC
®
NOTE:
After installation, keep this
booklet with the makeup air system
installation/operation manual.
1. Description/
Application

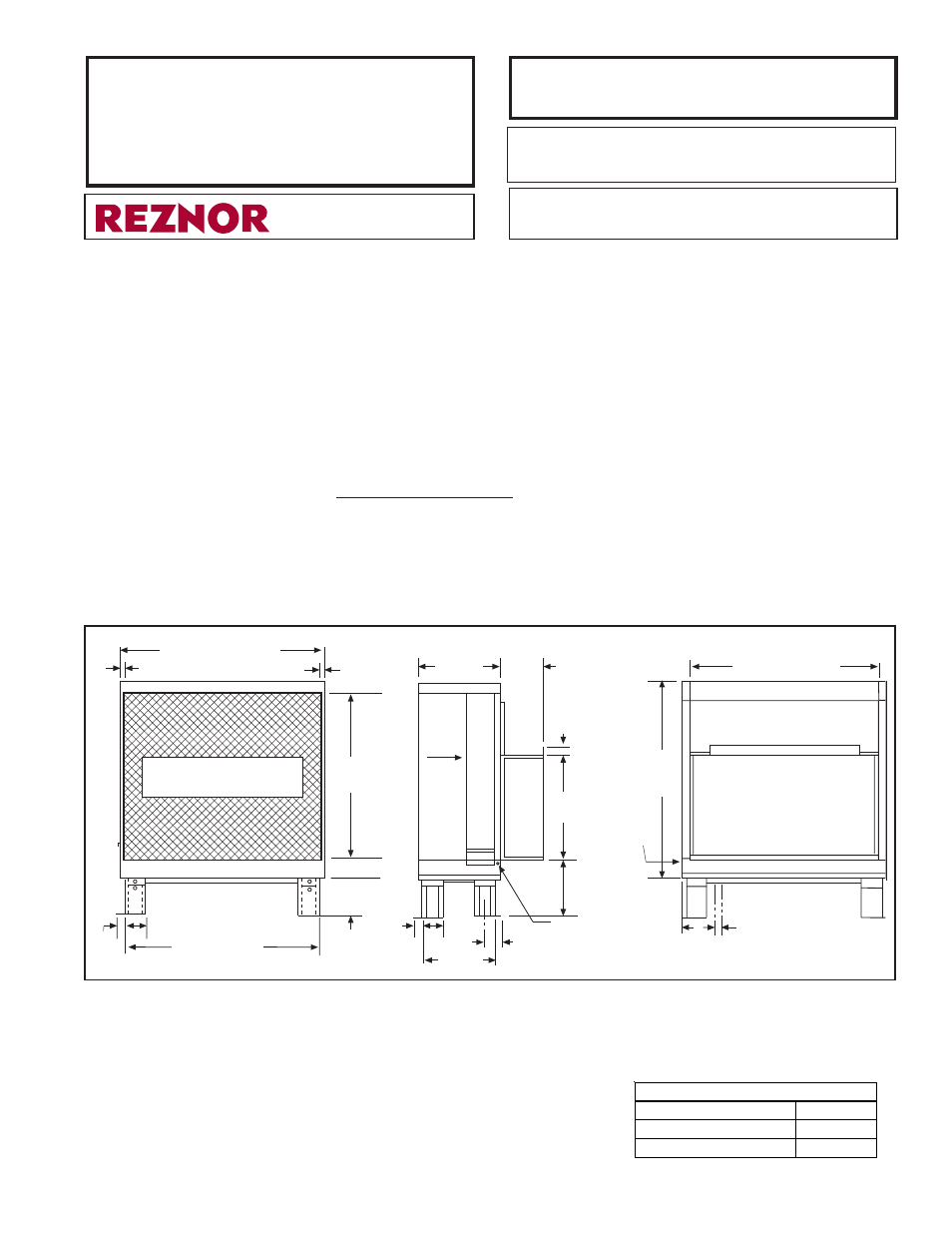

2. Dimensions
The optional evaporative cooling module for packaged indirect-fired system Model
Series RGBL, RPBL, SSCBL, PGBL, blower cabinet Model RBL, and direct-fired
makeup air Models ADF/ADFH 700/1200 is factory assembled but requires field
installation. Evaporative cooling module Option AS3 includes 6” rigid cellulose
media; Option AS4 includes 12" rigid cellulose media; Option AS5 includes 6"
rigid glass fiber media; and Option AS8 includes 12" rigid glass fiber media. The
base parts for supporting the evaporative cooling module and the transition duct for
connecting it to the unit are shipped with the module for field assembly and instal-
lation. If optional moisture elimination pads, a drain and fill kit, and/or a water
hammer arrestor are to be included in the installation, they also require field instal-
lation.
Indoor Installation Note:
The evaporative cooling module cannot be suspended;
it must be placed on a platform. If the installation is not conducive to providing a
platform for the optional evaporative cooling module to attach directly to the cabi-
net, install a compatible Reznor
®
Model REC evaporative cooling module which
also must be mounted but requires a field-fabricated transition duct and can be
located further away. All evaporative cooling modules require outside air.
3. Installation
Preparation
Check List:
o Make certain the installation complies with all local, utility and federal build-
ing and safety codes and regulations.
o Check module for shipping damage. If damage is found, document the damage
with the transporting agency and immediately contact your Reznor Distributor.
56-5/8
(1438)
12
(305)
AIR
FLOW
58-3/4 (1492mm)
1 (25mm)
47-3/4
(1213)
1 (25mm)
Opening Size
56-3/4 (1441) x 48 (1219)
2(51)
6 (152)
47-3/4 (1213)
5-1/2 (140)
Adjustable Legs
16 (406) maximum
9 (229) minimum
6 (152)
21-1/2
(546)
24
(610)
Drain/Overflow Connection
(centerline)
Water Connection
(1/4 tubing)
Adjustable
21-9/16 (548)
maximum
14-9/16 (370)
minimum
29-3/4
(756)
2(51)
5-1/32
(128
)
3 (76)
Contr
ol Pump
Access P
anel
Control
Side
View
Inlet View
54-1/16 (1373)
Transition Duct Opening
for Reznor Model Series
RGBL, RPBL, SSCBL, and
PGBL; Blower Model RBL;
and Model ADF/ADFH
Sizes 700 and 1200.
Water
Connection
(Control
Side)
Outlet View
9-1/2
(241)
2(51)
Drain/Overflow
Connections
Transition Duct Hardware Package
#10x1/2” Screws
(58) 11813
1/4 - 20 Hex Head Bolts (10) 16246
1/4 - 20 Nuts
(10)16050
o Check fabricated parts in the duct kit
package against parts list shown in
FIGURE 2
, page 3. The package
also includes the hardware listed
here.
