Form I-CAUA-FC, Page 12

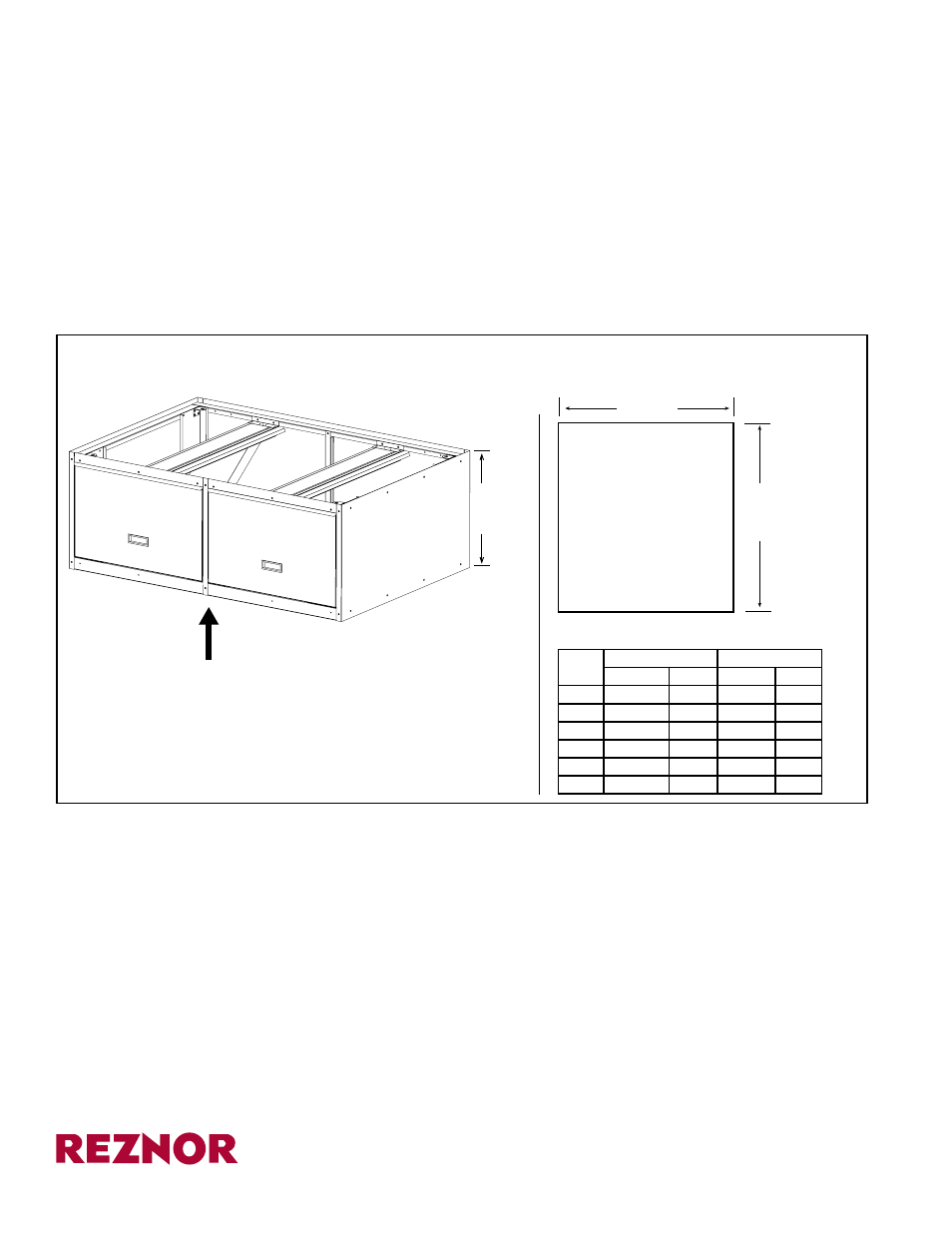

FIGURE 10 - Bottom Filter Cabinet with Bottom Duct Connection, Options CW13, CW14,
CW15, and CW16, supports the heater providing a filtered path for vertical return air.
Return air enters through the bottom of the filter
cabinet. See duct opening dimensions on right.
Cabinet may be placed with filter access doors
on either front or rear of heater.
www.ReznorHVAC.com; 1-800-695-1901
©2014 Reznor LLC, All rights reserved.
Trademark Note: Reznor
®
is registered in at least the United States.
05/14 (Serial No. Date Code BNE) I-CAUA-FC (Version .2)
Installation
Instructions -
Options CW 13, 14,
15, and 16
Option CW 13, 14, 15, and 16 return air filter cabinets are shipped factory assembled.
Position the filter cabinet in its final location being careful to allow sufficient clearance
on the filter access side.
After the filter cabinet is secure, set the Model CAUA on
the filter cabinet. (
NOTE: Be sure hole has been cut in bottom of CAUA before placing
it on the filter cabinet; see Installation Preparation on page 11.) The filter cabinet is
designed so that there is no mechanical attachment required between the filter cabinet
and the heater.
Attach return air duct to the duct flange on the bottom of the filter cabinet; see dimen-
sions in
FIGURE 10. This completes installation of a bottom filter cabinet.
Sizes of field-supplied or replacement filters are listed in the component table on page
11.
After heater installation is complete, turn on the electric and the gas and check for
proper operation.
Size
A
B
inches
mm
inches
mm
150
25-1/2
648
32
813
200
25-1/2
648
32
813
250
37-1/2
953
32
813
300
37-1/2
953
32
813
350
37-1/2
953
46
1168
400
37-1/2
953
46
1168
18
(457mm)
A
B
Front of Heater
Filter Cabinet
Bottom Duct
Opening
®
