BEST BOY 4000
®
SPOT LUMINAIRE FIELD SERVICE MANUAL

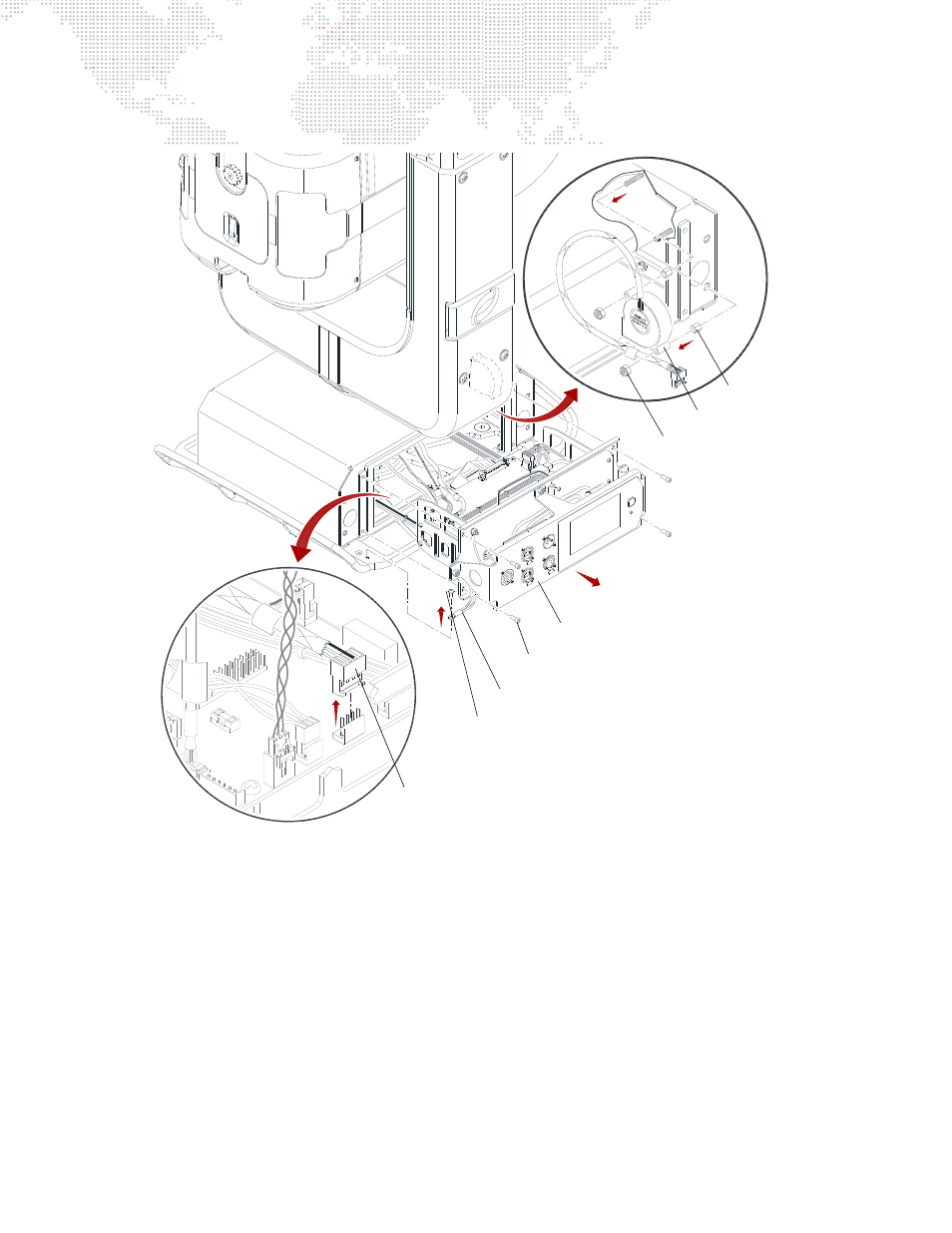

Figure 3-45: Removing Upper Enclosure Fan
FA
N
J8
CH
AS
J8
FAN 2
MAIN
CO
NTROL
J2
FAN
J8
CHA
S
Upper Enclosure Fan
Fan Cable
8-32 Hex Nut (2)
1/4" Hex Standoff (2)
10-32 x 3/4" Socket Screw (4)
10-32 x 3/8" PPB Screw
Ground Wire
Interface/LVS Assembly
