BEST BOY 4000

SPOT LUMINAIRE FIELD SERVICE MANUAL

Cleaning Lenses

Tools & Supplies:

(2) Micro Fiber cloths (06.6085.0001.0)
OptiMax™ Ultra Pure Cleaning Solution (06.6084.0001.0)
Cotton gloves or finger cots
#2 Phillips screwdriver
3/16" flat screwdriver

To clean lenses:

CAUTION:

Use caution when handling lenses. Avoid scratching optical surfaces.

CAUTION:

Use ONLY OptiMax™ Ultra Pure Cleaning Solution to clean optical components. DO NOT use

Window Cleaner on lenses! Wear cotton gloves or finger cots when handling lenses/glass.

Step

1. Apply power to luminaire and set intensity to 20%. (A beam will be necessary to see dirt and dust on the

lenses.)

Step

2. Remove R2/Designer Head Cover to access Zoom Lens Assembly. (Refer to

"Removing Head Covers"

page 24.)

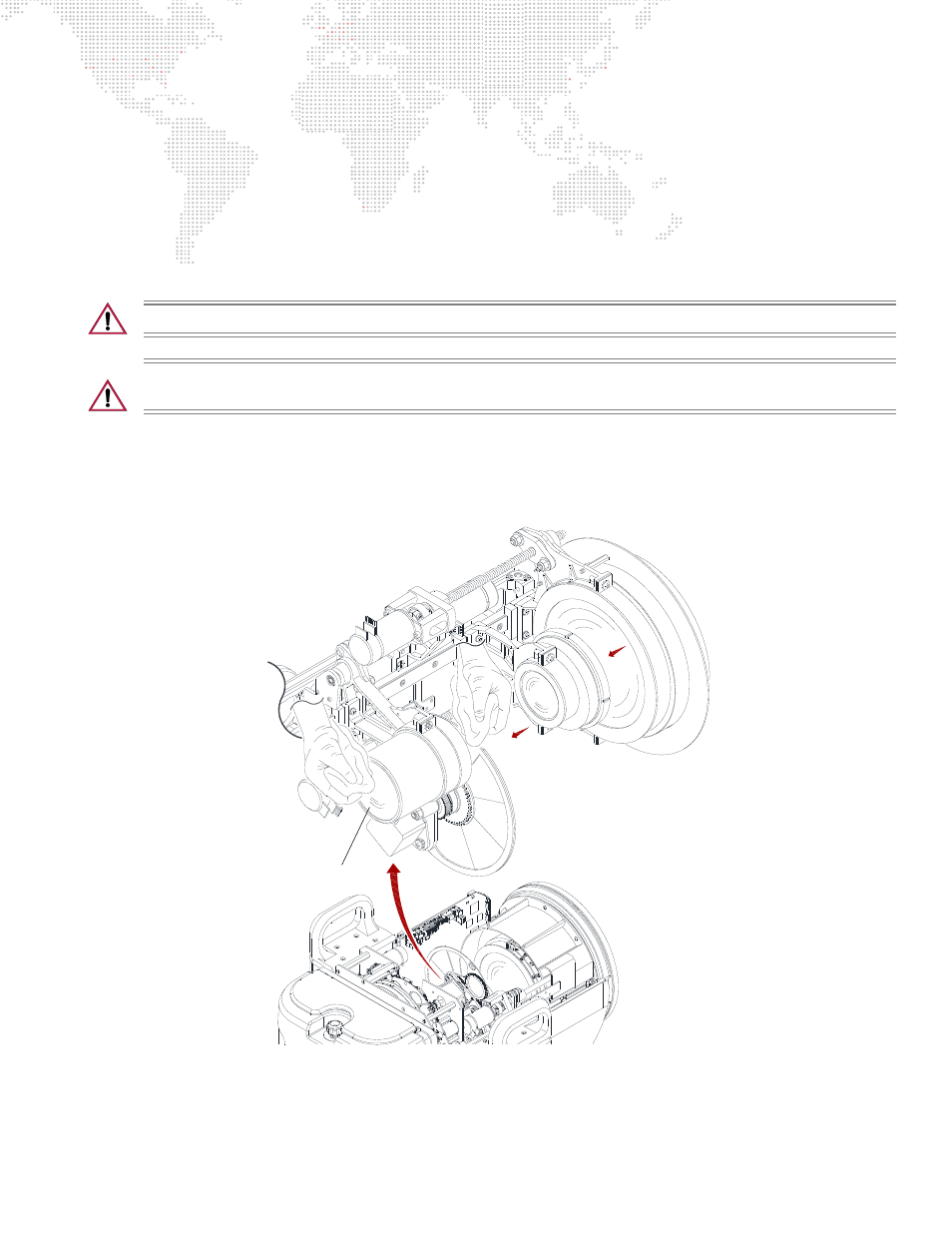

Figure 3-7: Accessing Zoom Lens Assembly

ZOOM LENS ASSEMBLY DETAIL

Lenses
