BEST BOY 4000

SPOT LUMINAIRE FIELD SERVICE MANUAL

Step

9. Using a flat screwdriver, press down on sharp edges of belt (left by the cutter) as shown in Detail B. (This

should remove the cutting hazard.)

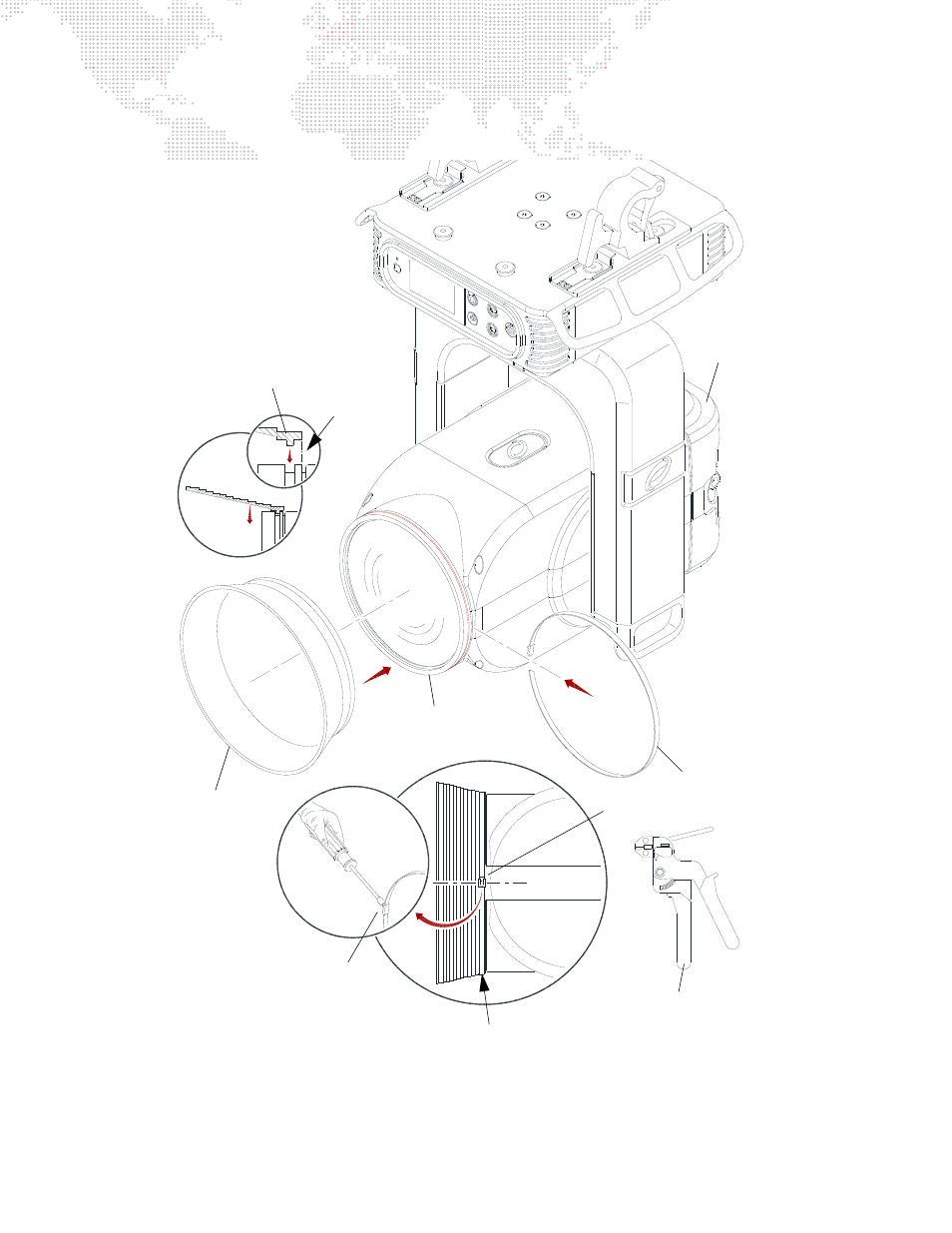

Figure 3-18: Installing Light Shield with Steel Band

Light Shield

Steel Band

Installation Tool

Front Ring

DETAIL A

DETAIL B

Light Shield

Fit notch

Press down on sharp corners

Wrap band around outside edge, flush with ridge

Side Rail

into groove

R2 / Designer Wheel
Head Cover

Fastener Clip
