BEST BOY 4000
®
SPOT LUMINAIRE FIELD SERVICE MANUAL
69
CAUTION:
Wear cotton gloves or finger cots while handling glass filters.

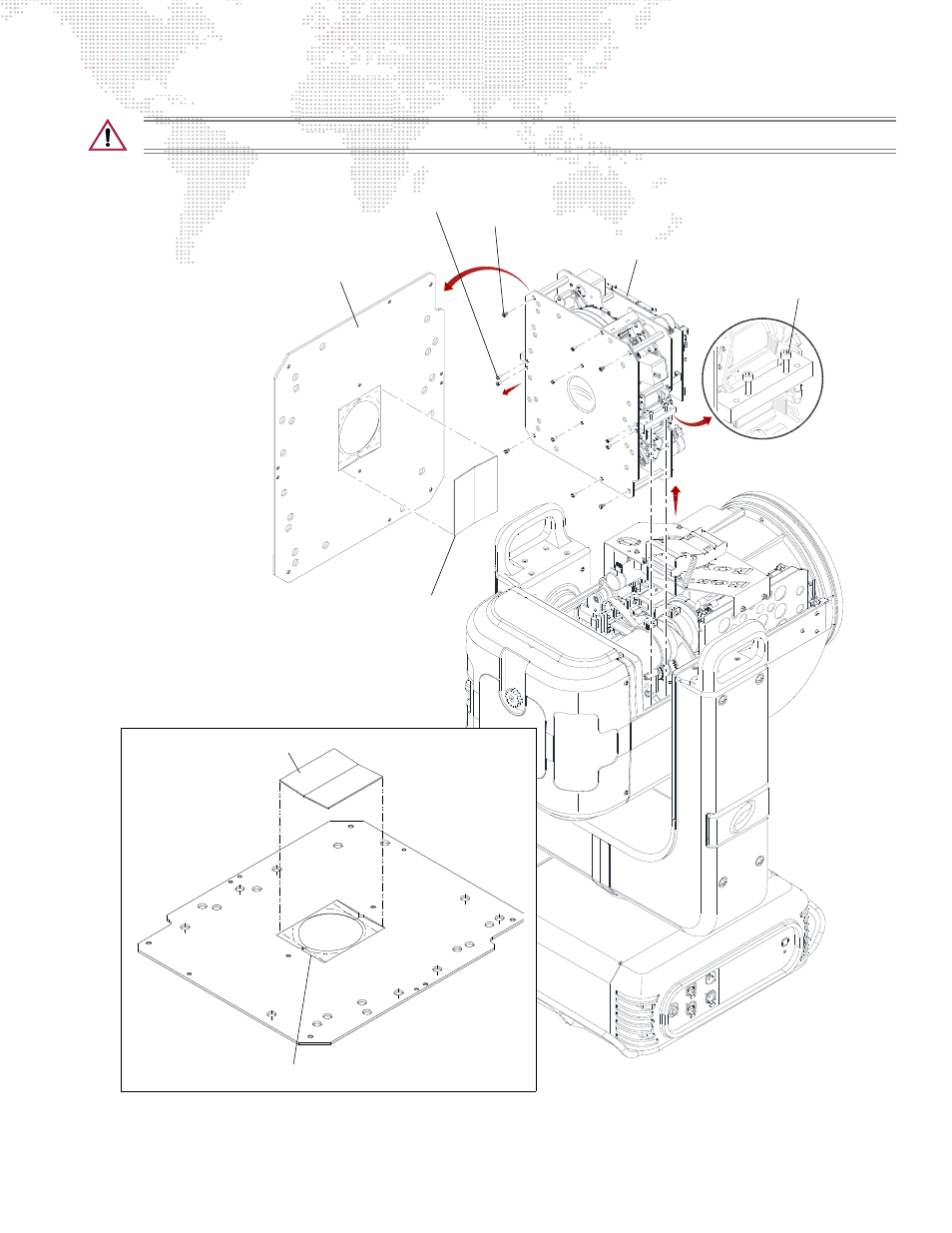

Figure 3-40: Removing UV/IR Filter
FA
N
J7
HE
AD
TE
MP
J6
EX
T
Wheel Stack
Rear Plate
UV/IR Filter (2)
8-32 x 5/16" PFSS Screw (4)
- Apply Loctite 242
6-32 x 3/8" Screw ( 8)
- Apply Loctite 242
Captive Screw
DETAIL
UV/IR Filter
RTV Adhesive
