ADSL IP DSLAM

Routing Table {Routing Table}

Routing Table is a matrix with a network control protocol, which gives the

hierarchy of link routing at each node.

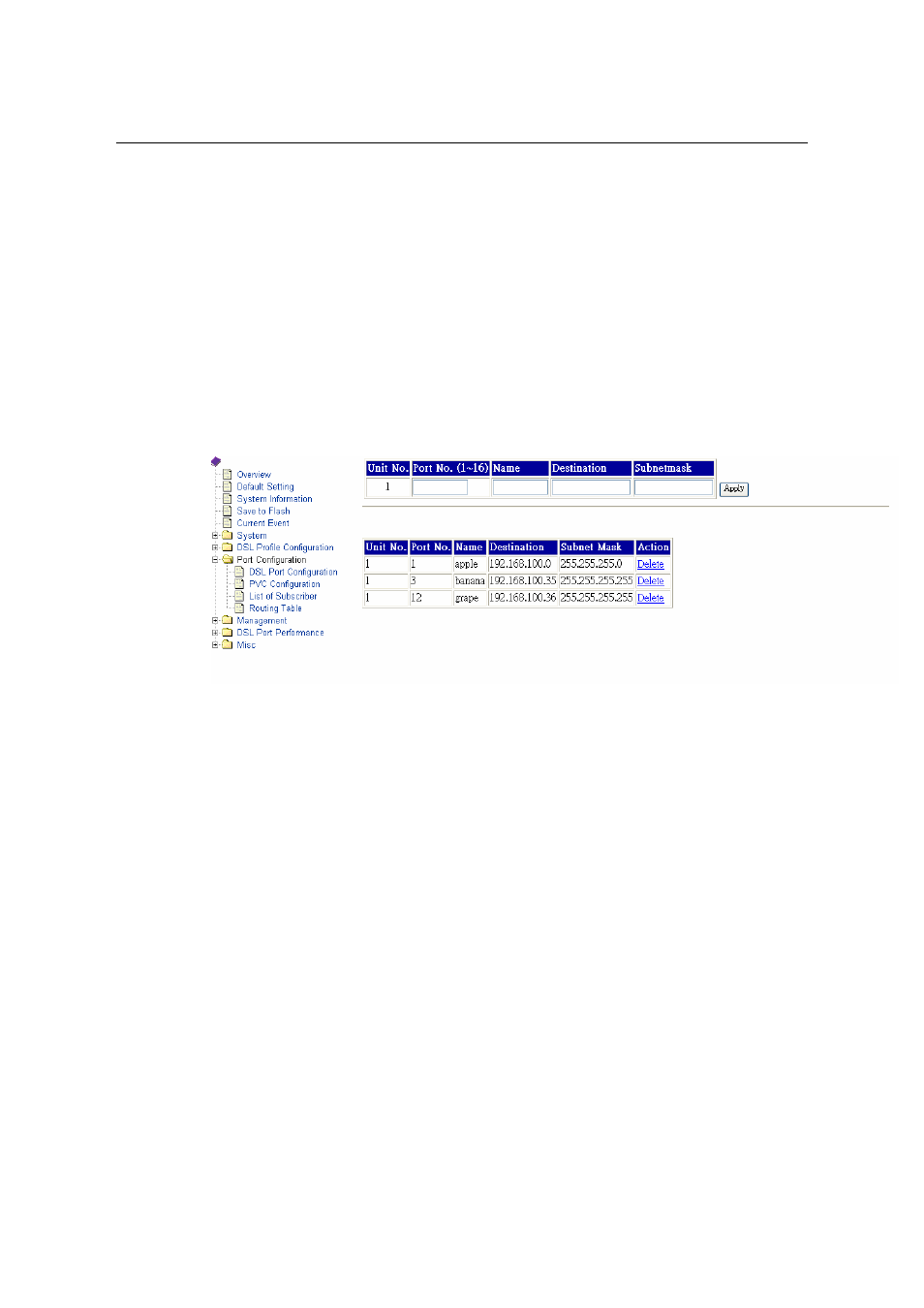

The Routing Table screen allows you to view the routing table built in the ADSL

IP DSLAM and modify them. The procedures are as follows:

1. Click on “List of Subscriber” of the Port configuration Menu. The Routing

Table screen appears with the default setting as follows:

2. Configure the Port No. (1~16), Name, Destinations and Subnet mask

separately, and then click on the Apply button.

3. The newly added routing node will be listed in the routing table. If to delete

one routing node, click on the Delete.

Note: only can the routing table be configurable, when the RFC-1483 mode is

configured as “Route”. Please refer to the setting in the PVC
Configuration, page 36.
