ADSL IP DSLAM

ADSL IP DSLAM Front Panel Connection

Connect the uplink port of ADSL IP DSLAM to internet by using the RJ-45
cable, and Connect the CID port to the console terminal by using the RS-232
cable(Null modem cable) in order to Administer your ADSL IP DSLAM
through CLI.

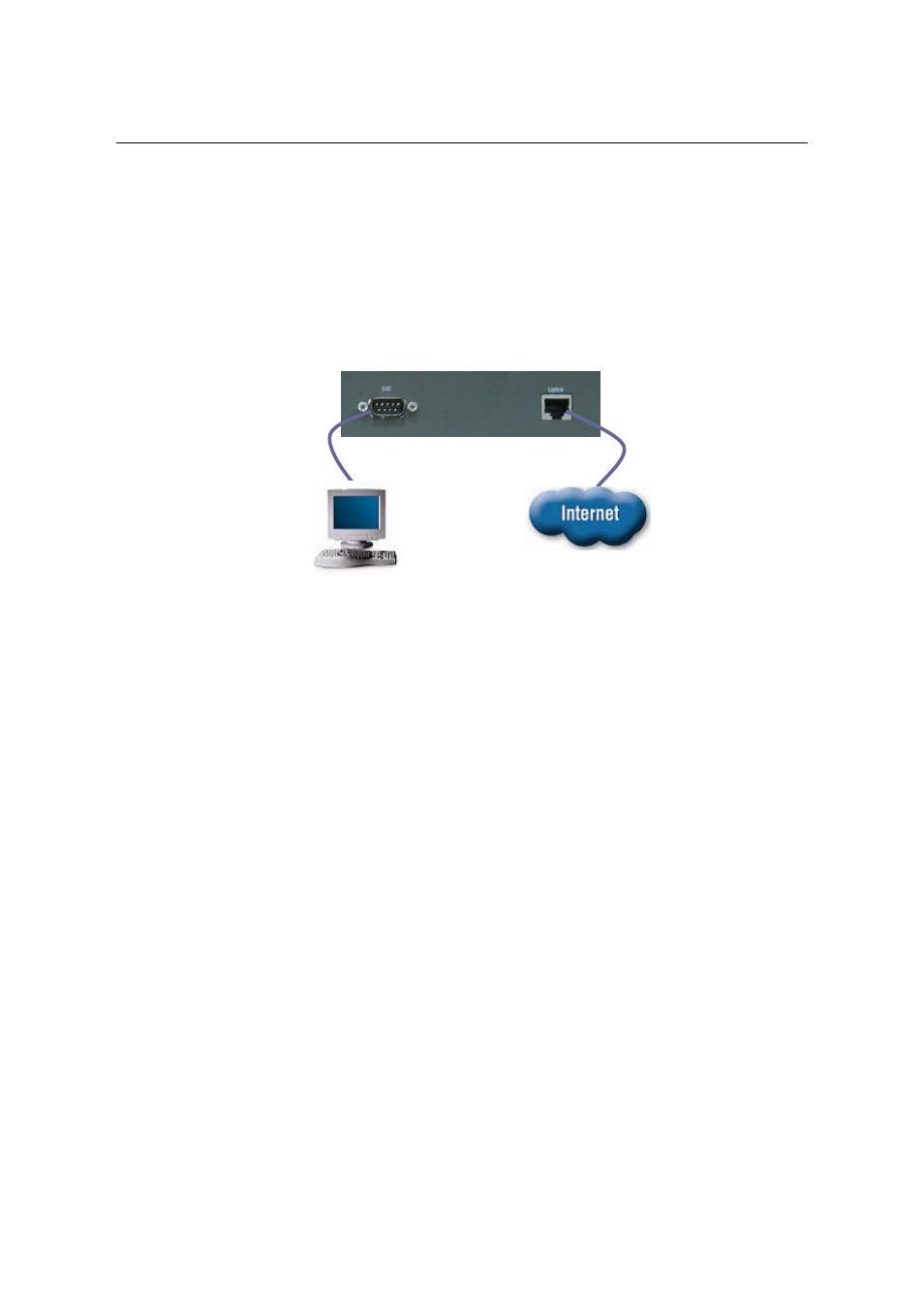

Figure 2-2 ADSL IP DSLAM Front Panel Connections

Note: Please refer to Appendix A: pin assignment of telco cable, RJ-45 and

RS-232 cable.

Uplink

Console

Console Terminal
For Manufacture
Maintenance Only
