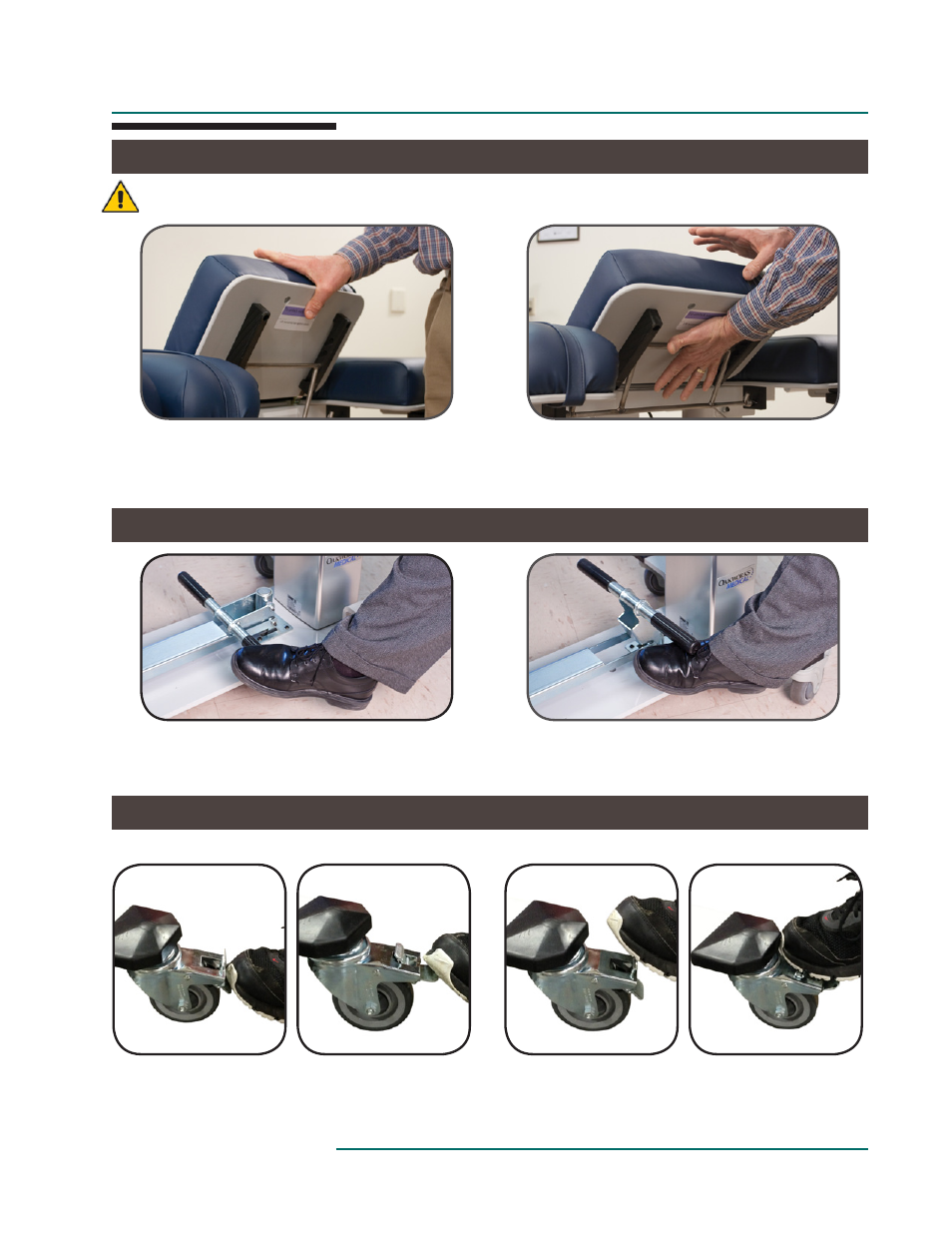

TO RAISE BACK SUPPORT
Lift panel to desired angle. Panel will
automatically lock into nearest set point.
Panel can be raised to a full 90º position.
TO LOWER BACK SUPPORT
Press support bar against plastic plate and hold
until back support is lowered to desired position.
LOCKING THE SYSTEM
Press down on locking arm with your foot to
lock table to the floor.
UN-LOCKING THE SYSTEM
Lift up on locking arm with your foot to unlock
table from the floor.
All four casters should be locked at all times during use with a patient.
DIRECTIONS FOR USE
CAUTION
ADJUSTABLE ANGLE BACK SUPPORT
Do not sit on the Adjustable Angle Back Support. (Max Capacity 150 lbs. (68 kg.))
CENTRAL BASE LOCKING SYSTEM
LOCKING CASTERS USE
LOCKING THE CASTERS
1. Place your shoe on the end of the casters locking tab.
2. Press firmly downward until you here a clicking noise
and the caster is locked.
UN-LOCKING THE CASTERS
1. Place your shoe on top of the casters locking tab.
2. Press firmly inward and downward until you here a
clicking noise and the caster is unlocked.
