Caution, Directions for use, Control operations - general – Oakworks Ultrasound / PG Series Rev.B User Manual
Page 18
15

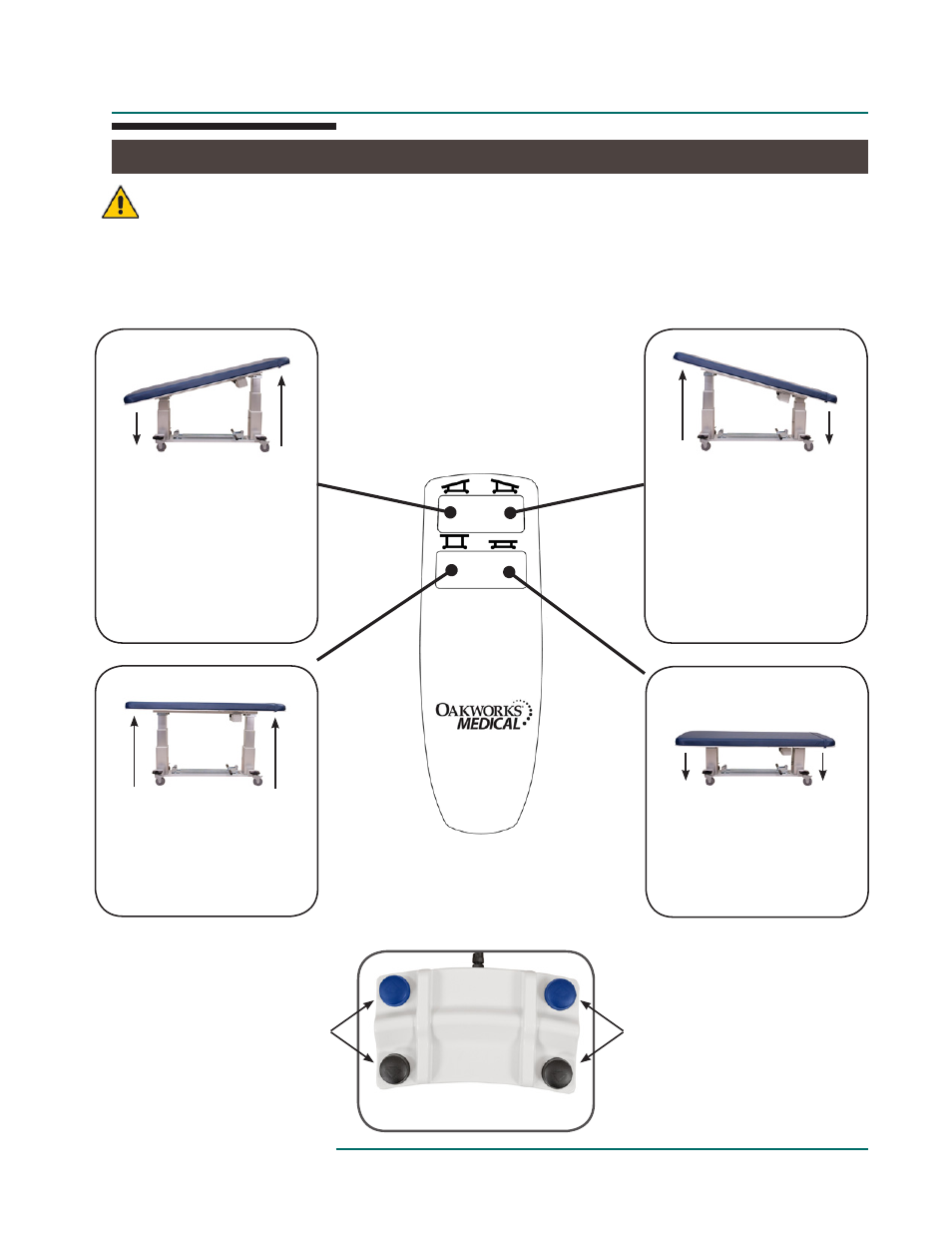

Height UP:
elevates tabletop
Trendelenburg functions are
preserved during elevation
Height Down:
lowers tabletop
Trendelenburg functions are
preserved during lowering
Reverse Trendelenburg:
activates tilt up to 15º
positioning stops when
table is level; press again
to continue
Trendelenburg:
activates tilt up to 15º
positioning stops when
table is level; press again
to continue
optional 2 function foot control
DIRECTIONS FOR USE
CAUTION
CONTROL OPERATIONS - GENERAL
Do not sit on the Fowler (Backrest) or Leg Rest sections.
Do not leave the patient unattended.
When lowering the table or using the Trendelenburg functions, make sure there is nothing
that can impede motion (like stools, cabinets, accessory parts, cleaners, etc.)
The Hand Control and optional Foot Control operate all functions of the table with the touch of a
button. Follow the directions below to access these functions.
Trendelenburg
function
Height
function
