PIT WIZARD INSTRUCTION MANUAL

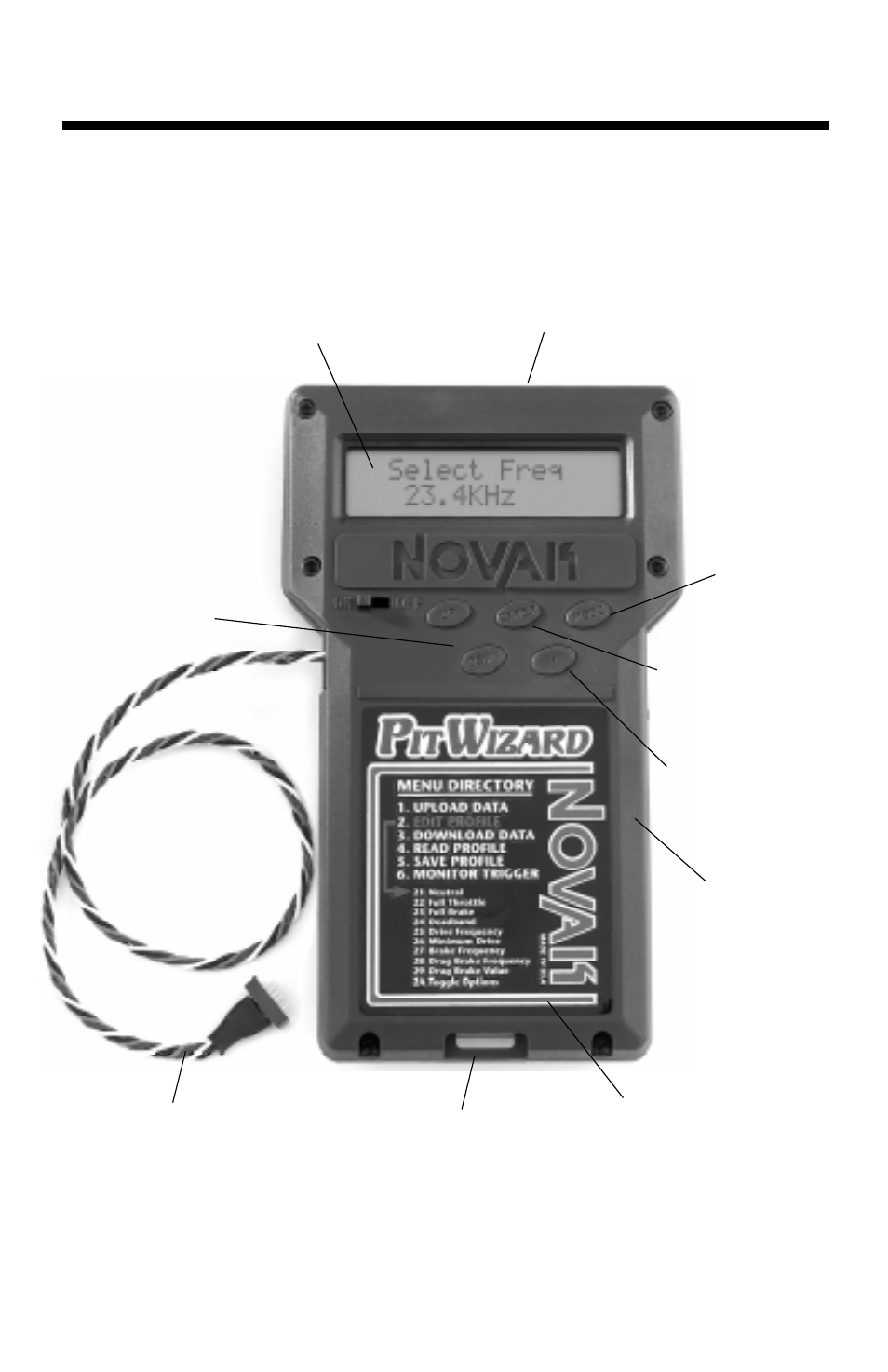

ABOUT THE PIT WIZARD
Molded-in loop for adding
a neck or wrist strap.
D•LINK harness for
c o m m u n i c a t i n g
with Cyclone ESC.
Label shows main menu
items and lists all of the
user-adjustable Cyclone
parameters.
2 Line/16 Character LCD
displays menu position and
options for easy navigation.
Novak’s exclusive ESC Profile
Software allows you to modify
the design parameters of your
Cyclone and store ten different
racing Profiles.
Ergonomic design
fits comfortably in
your hand and
sturdy nylon case
stands up to tough
environments.
{UP} & {DOWN} buttons
let you scroll thru the
main menu sub-screens
and the user-adjustable
parameter values.
{MODE} button
takes you through
the available main
menu selections.
{ENTER} button
makes your selection
once the menu mode
or parameter value
you want is displayed.
This button {•} is for
future growth and is
not currently used.
