Hardware connection – Novak Pit Wizard User Manual
Page 13
13
PIT WIZARD INSTRUCTION MANUAL
HARDWARE CONNECTION
1. Install four (4) 1.5 volt LR6 (AA) Batteries
–Remove the two (2) screws from bottom edge of the top-side
of Pit Wizard case with a number 1 Phillips screwdriver, turn
the unit over and remove the two (2) remaining Phillips-head
screws that secure the lower portion of the case bottom.
–Insert four (4) 1.5 volt LR6 (AA) batteries (Not included) into
the battery box––Cell orientation is illustrated in battery box.
–Replace the lower portion of the case bottom install all four
(4) Phillips-head screws––Be careful not to overtighten.
2. Connect the D•LINK harness
–Connect the Pit Wizard’s D•LINK harness to your Cyclone’s
DataLink socket (Figure 10) located on the top of the speed
control. The D•LINK connector can only clear the transistors
on the speed control if the “D•LINK” lettering is right side up.
If external heat sinks are installed, be sure that they do not
extend beyond the front edge of the transistors––You may
need to reposition heat sinks to gain proper access to connector.
Note: The motor will be disabled as soon as the Pit Wizard is connected.
Cyclone must be connected to a charged battery pack to supply power
during Uploading, Downloading, or Monitoring Transmitter Trigger.

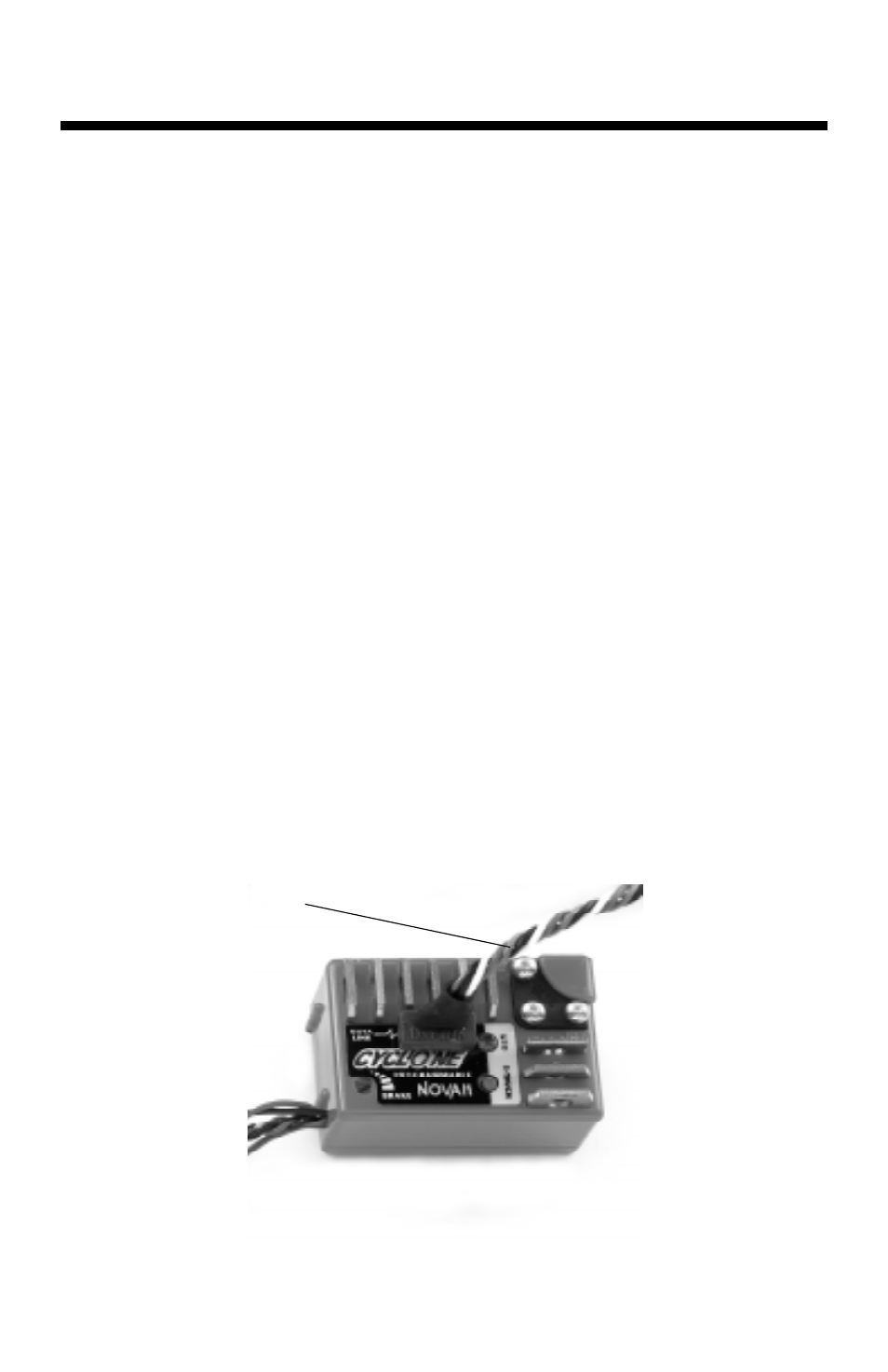

Figure 10:
Photo showing connection of D•LINK Harness.
D•LINK Harness
