Page 18
18
12 x 12 Flat Top Louvered Pergola

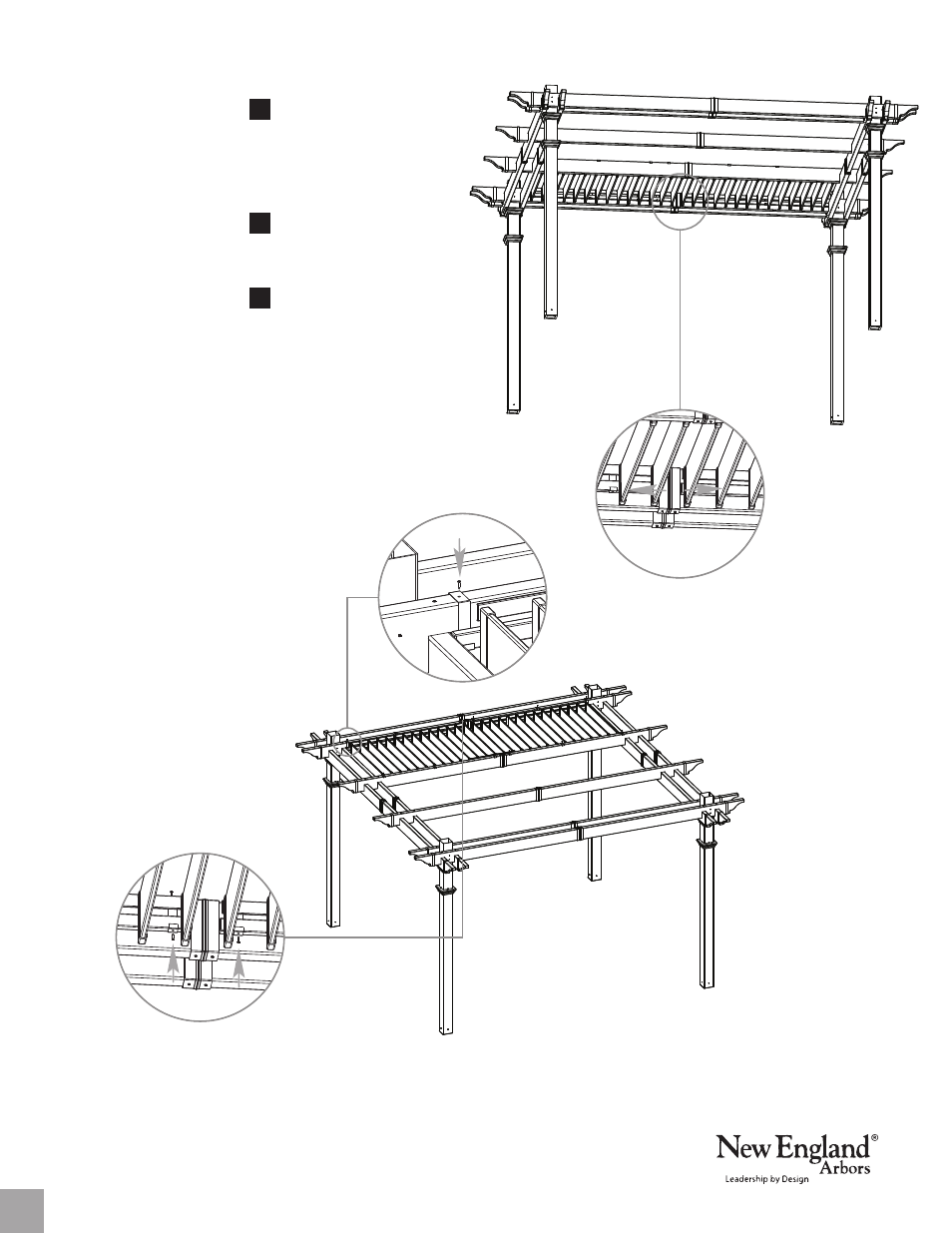

Slide the Steel Holder Brackets to a spot which will not
interfere with the operations of the louvers. ‘Open’ and
‘Close’ the louvers to test and make sure the steel
brackets are not constraining the operation.
From the top, fasten the steel brackets in place using
5/8” screws. A total of 12 screws will be needed.
Repeat for the underside of the steel brackets.
Another 12, 5/8” screws will be needed.
Louver Assembly
7
www.newenglandarbors.com
8
8
7
Bottom View
9
9
