Vinyl Beams & Rafter Placement
13
12 x 12 Flat Top Louvered Pergola
1
1
2
3

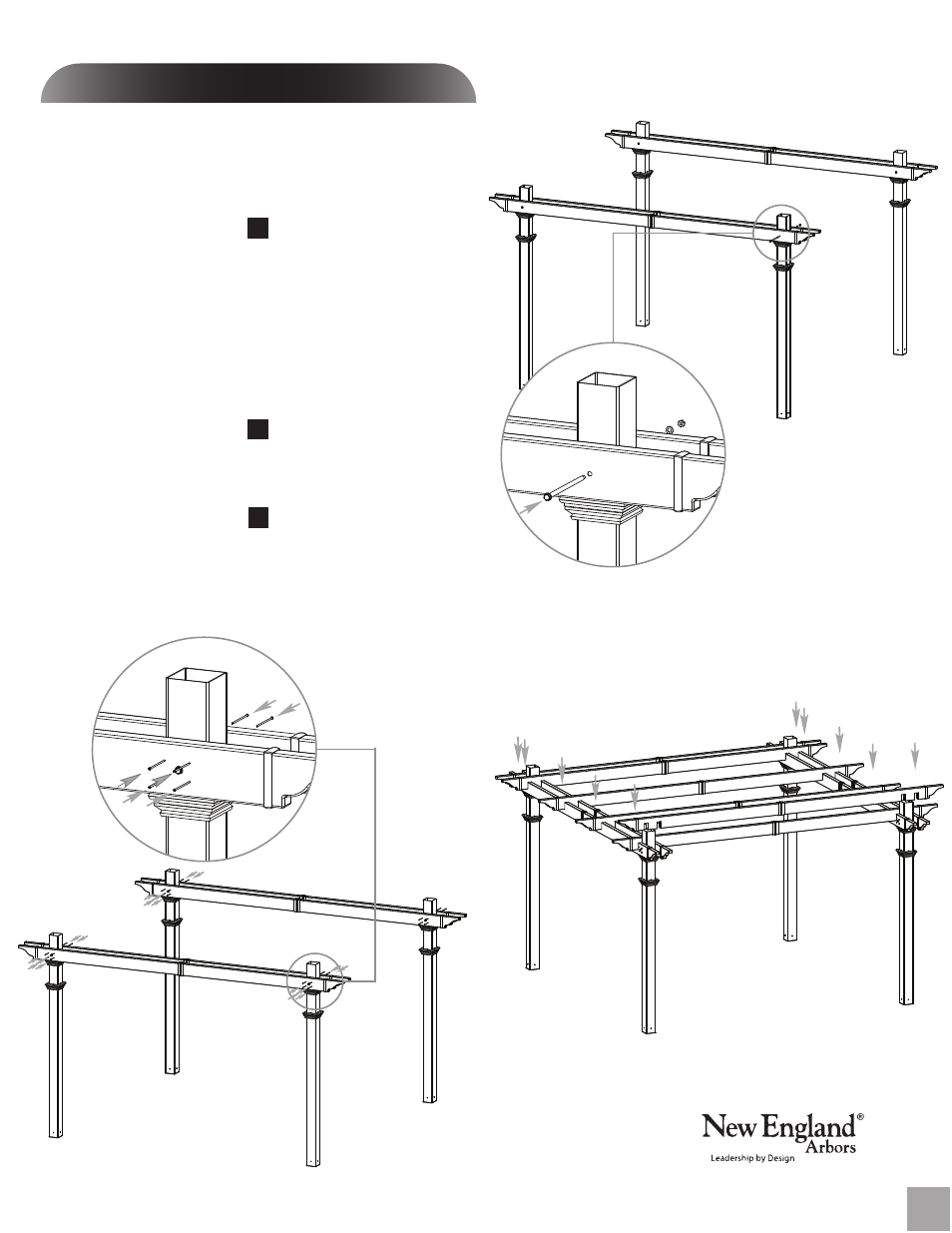

S T E P S I X
Using a helper and two ladders proceed to complete the
following steps:
Raise one Beam Assembly at a time and insert the Bolt
Assembly into the holes to hold into place as shown.
Some force may be required to get the bolt through.
Do not tighten the nuts until all four beams are in place,
instead, simply hand-tighten them.
Once all four beams are in position, use two wrenches
to lock the beams into place.
Fasten the Beams onto the Posts using the 4” screws provided.
(8 screws per post)
Place the rafters onto the beams as shown. Space the middle
two rafters 42” apart (Critical for louver placement)
2
3
