Vinyl Beam Assembly
1
1
2
S T E P F O U R
10
12 x 12 Flat Top Louvered Pergola

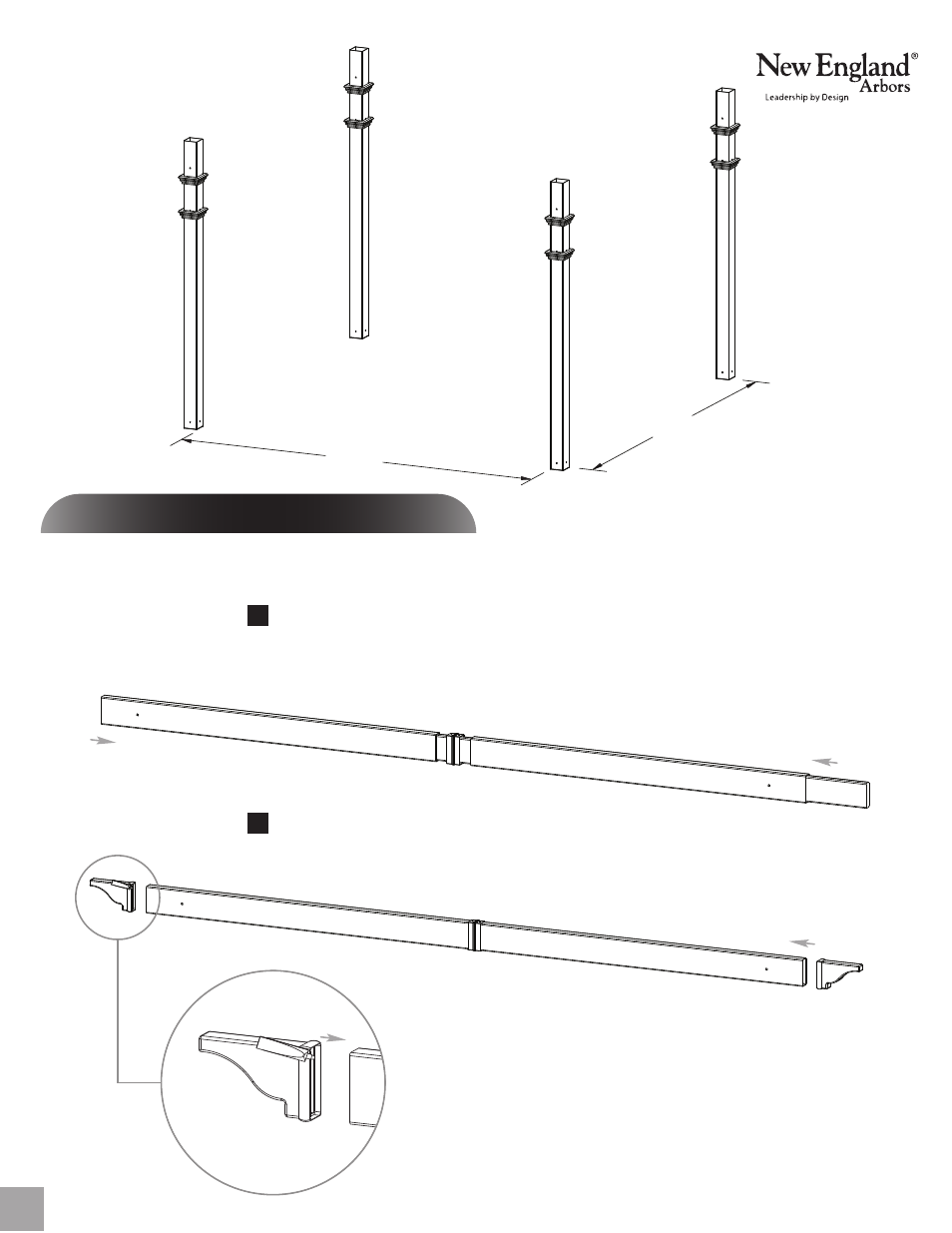

At this stage, the columns should be properly
installed as per the following illustration,
with the columns 134” in. (340.4 cm) apart.
Also, notice that the holes at the top of each
post should be facing the same direction.
www.newenglandarbors.com
134in.
340.4 cm.
134 in.
340.4 cm.
Critical Note:
Note the location of the pre-drilled hole on beams as pictured
aside. These holes will align with the hole on the posts.
Both ends of beam section should extend approximately 6” over
the pressure treated wood.
Insert one 2x6x12’ pressure treated wood into a beam section
followed by the joiner and another beam section.
Glue and attach the Decorative End Caps onto the ends as shown.
