Malone MPG113MD User Manual
Malone, Ss combo, Step 1: stinger pre-assembly
MALONE
R
SS Combo
SS Combo
TM
SEAWING KAYAK CARRIER with
STINGER LOAD ASSIST
Extension Frame
Mounting Plate
V-Block
70mm Bolts
TM
TM

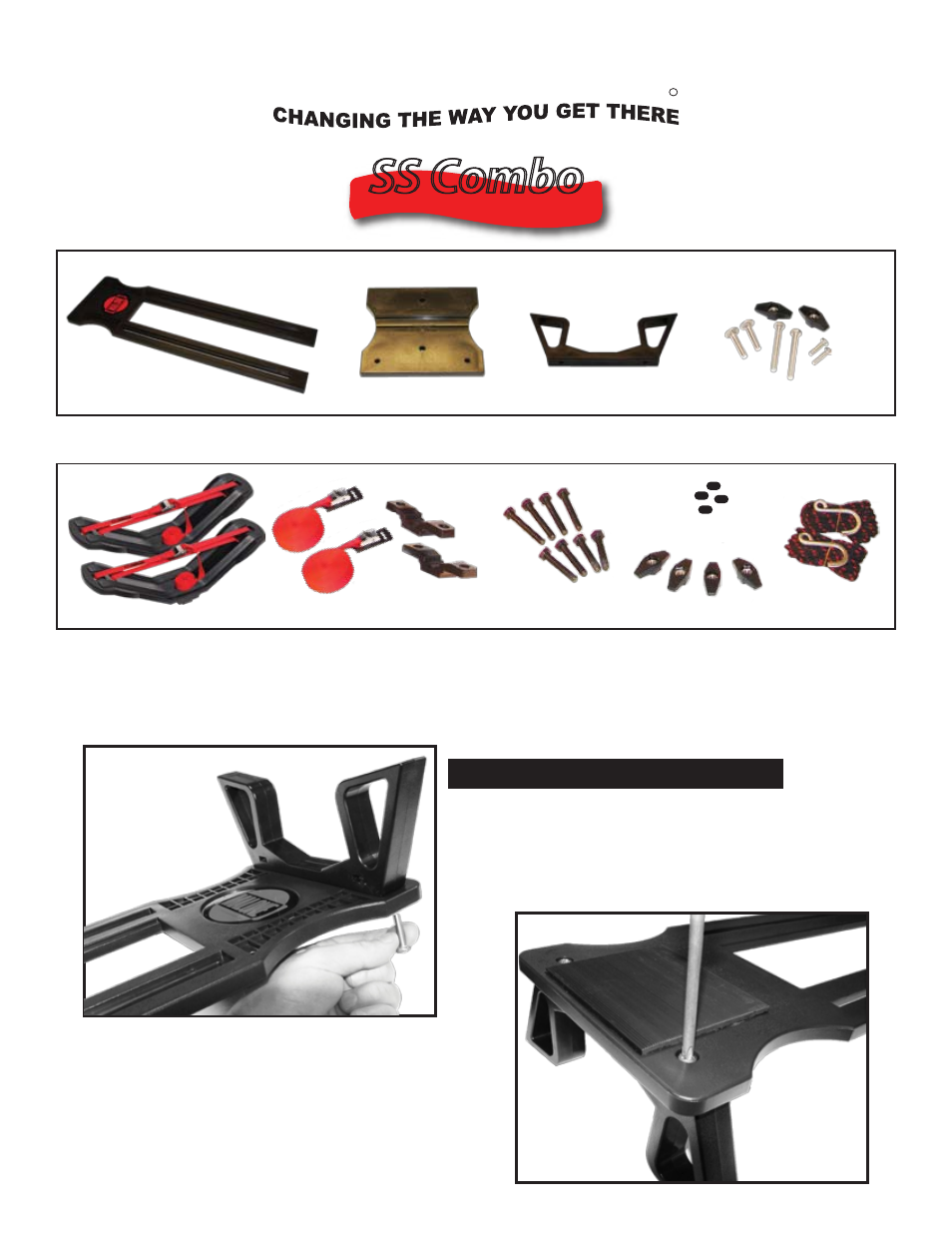

Stinger Load Assist Components
TM
Installation & Loading Instructions - Please Read Before Beginning
. Insert the two 1” bolts into the two holes
located on the bottom side of the Extension
Frame. Tighten with a phillips screwdriver.
See image 2.
Step 1: Stinger Pre-Assembly
. Place the V-Block into the channel located directly
behind the Malone logo on the Extension Frame.
See image 1.
1
2
12’ Safety Lines
MD Series Only
Jawz Universal Adapters
Mounting Bolts
60mm
50mm
SeaWing Kayak Carriers
12’ Load Straps
T-Knobs
Rubber Plugs
SeaWing Kayak Carrier Components
TM
T-knobs
1” Bolts
1 3/4” Bolts
TM
Table of contents
