Malone MPG115MD User Manual
Malone, Stax pro2, Cogs 1 2 3
MALONE
R
Installation & Loading Instructions - Please Read Before Beginning
12’ Tie-Downs
Jawz Adapters
Mounting Bolts
40mm
50mm
Stax Pro2 Kayak Carrier
12’ Load Straps
Cogs
1
2
3
. Insert a 100mm bolt into the square
hole located in the top of the base.
See image 2.

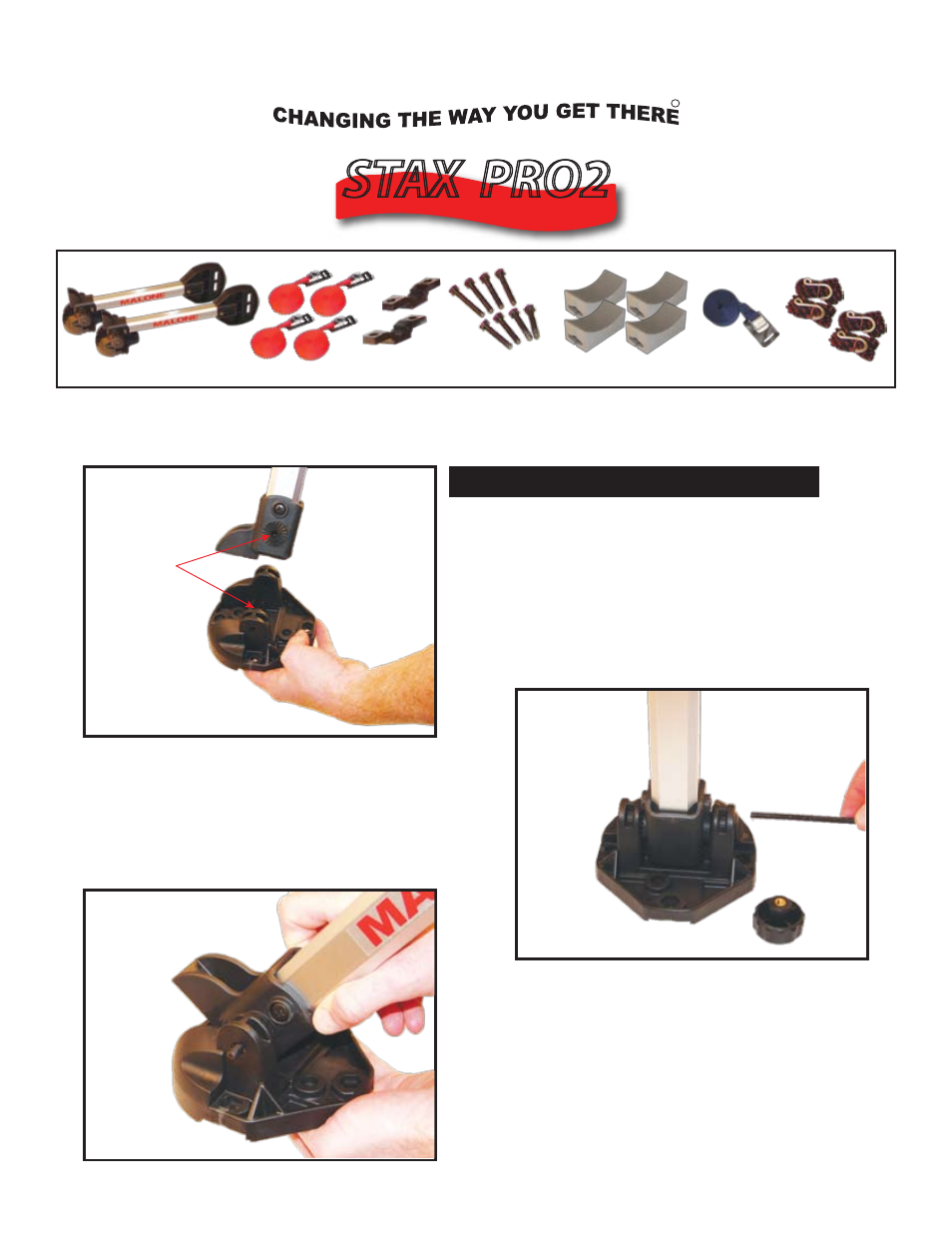

Step 1: Assembling the Stax Pro2
. Insert the bottom of the post into the
top of the base. Position so the cogs
on the post are in contact with the
cogs on the base. See image 1.
. With the holes in the base and post aligned,
push the bolt through the two assemblies
until the end of the bolt is exposed.
Note: Confirm that the head of the bolt is
fully seated into the base. See image 3.
TM
Foam Blocks
STAX PRO2
STAX PRO2
TM
VERTICAL FOLD-DOWN CARRIER
FOR TWO KAYAKS
9’ Safety Strap
