M4-LHS installation and Operation Manual
- EMS INPUT MODE -
Disable
Enable
BACK ▲ ▼ SAVE
-EMS 4ma SETPOINT -
70
o
F
[ ]
BACK ▲ ▼ SAVE
-EMS 20ma SETPOINT-
220
o
F
[
]
BACK ▲ ▼ SAVE
aLErT
To be able to change the M4-LHS
settings the Program/Run Switch must
be set to Program. The switch is located
under the Enclosure Wiring Cover for
security. The Enclosure Wiring Cover
can be secured using a lock.
-------- SETTINGS ----
Season
Winter
System Target 140
o
F
BACK ▲ ▼ SELECT
-- ARE YOU SURE? --
No
Yes
BACK ▲ ▼ SAVE
PROVE/DHW SHARING
Prove
DHW Priority
DHW No Priority
No Priority (Summer)
BACK ▲ ▼ SAVE
- DHW SETPOINT -
180
o
F
[
]
BACK ▲ ▼ SAVE
- SETBCK/SHUTDOWN -
Shutdown/Disable
Tstat/Enable
Setback
BACK ▲ ▼ SAVE
--- BOOST MODE ---
30 Minutes
Disable
BACK ▲ ▼ SAVE
--- SENSOR FAULT ---
All Off
All On
BACK ▲ ▼ SAVE
-- SENSOR TYPE --
Reset
o
F
Reset
o
C
Set Point
o
F
Set Point
o
C
BACK ▲ ▼ SAVE
Set Point
Enable
Disable
-- BOILER NUMBER --
2
[ ]
BACK ▲ ▼ SAVE
- MODULATING MODE -
Normal
Parallel
BACK ▲ ▼ SAVE
all DHW
Options
Yes
--- BACNET MODE ---
Disable
Enable
BACK ▲ ▼ SAVE
OUTPUT A TYPE --
4-20mA
0-10volt
0-5volt
2-10volt
1-5volt
BACK ▲ ▼ SAVE

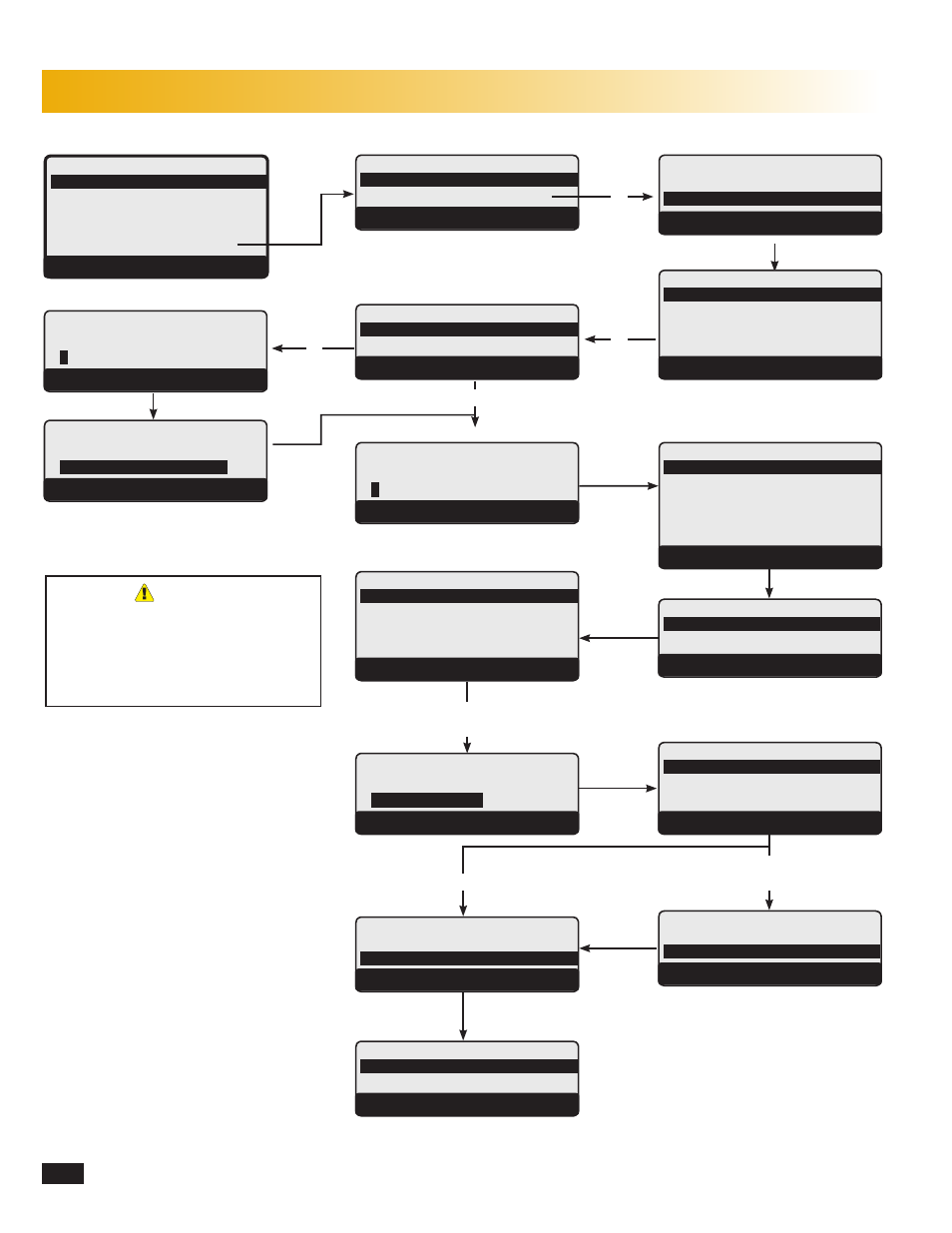

MODuLaTiNg STarTuP MENu
--- BOILER TYPE ---
Modulation
Hybrid
BACK ▲ ▼ SAVE
Shutdown
or Tstat
Setback
