M4-LHS installation and Operation Manual
13
• When the Shutdown input is enabled by closing the dry contact, or when the Tstat input is disabled by opening the
dry-contact, all active modulating boilers will immediately modulate down to low for the Soft-Off period, then turn
off. All staging boilers will turn off immediately.
• The System Output relay will remain active until the System Run-On Delay expires and then it will turn off.
• When Setback is selected in the Startup, a BMS/EMS or external clock can provide a Setback signal using these
input terminals. See "Shutdown/Tstat/Setback Mode" on page 24. No Day/Night Schedule will be available when
Setback is selected from the Shutdown/Tstat/Setback mode in the Startup menu.
• Bring the two wires from the dry contact to the terminals marked SHUTDOWN/TSTAT/SETBACK- 31,32.
• The signal must be a dry contact only. No voltage can be placed across the SHUTDOWN/TSTAT/SETBACK
terminals.

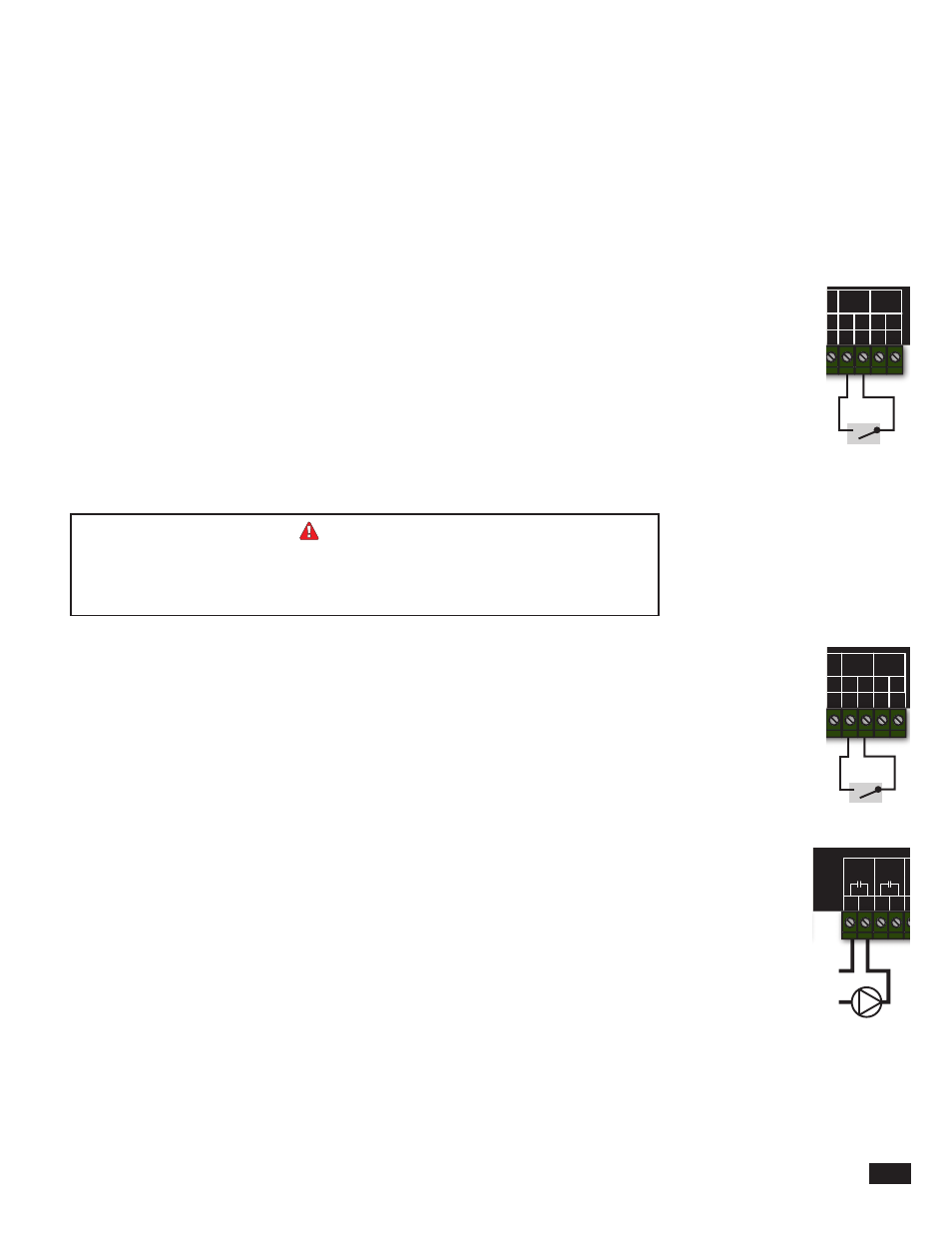

Wiring the Prove
(Terminals 29, 30)
• The Prove feature checks system component operation and must be selected in the Startup Menu from the Prove/
DHW Sharing menu. See "Prove/Indirect Domestic Hot Water (DHW) Priority" on page 24.
• A typical use of this feature is to check for pump flow or combustion air damper status before firing any boiler.
• If the PROVE input is open on a call for heat, the M4-LHS enables only the System Output. All boiler outputs
will be off when the PROVE input is open.
• A factory-installed jumper provides the System Prove signal. Do not remove the jumper unless it is replaced with
a System Prove signal or these terminals are to be used for DHW call input.
• Bring the two wires from the dry contact to the terminals marked PROVE - 29, 30.
• Prove Input terminals can accept a dry-contact signal only. No voltage can be placed across these terminals.
WarNiNg
The PROVE input cannot be used as a safety limit. All equipment must have its own
certified limit and safety controls as required by local codes. If Prove is selected in the
startup menu, no boiler stage will start unless Prove terminals are shorted. DO NOT remove
the PROVE jumper supplied unless replacing it with a Prove signal.
Prove Signal
SYSTEM
A
B
C
D
1 2
RUN PROGRAM
DO NOT APPLY ANY VOLTAGE
TO INPUT TERMINALS
3 4 5 6 7 8 9 10 11 12 13 15 14 17 16 18 20 19 21 24 23 29 25 27 26 28 32 30 31
L N
- + +
T T O O RS-485 mA GND VLT
SYS A B C D PWR
CUR / VLT
A
- + +
mA GND VLT
- + +
mA GND VLT
+ +
mA
22
-
GND VLT
+
mA
TEMP
OUTDOOR
O O
TEMP
SYSTEM EXTENSION
MODULE CUR / VLT
B
CUR / VLT
C
CUR / VLT
D PROVE
/DHW
SHUTDOWN
/SETBACK
FOR ALL CIRCUITS
120VAC, 6A RESISTIVE
OUTPUT RATINGS:
1A PILOT DUTY, 15A TOTAL
115VAC 60Hz , 30VA MAX
INPUT RATINGS:
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
CAUTION: RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
99RA
/TSTAT
M4-LHS
HYBRID CONTROL
Wiring the indirect Domestic Hot Water (DHW) Call
(Terminals 29, 30)
• DHW can be used to raise system Set Point to the DHW Set Point as well as manage the System Pump according
to the DHW Priority setting. One of the DHW options must be selected from the Prove/DHW Sharing Startup
menu. See "Prove/Indirect Domestic Hot Water (DHW) Priority" on page 24.
• Remove the existing jumper and wire an aquastat or a control to provide dry-contact closure to the DHW Call - 29,
30 terminals.
• DHW Call terminals can accept dry contact signals only. No voltage can be placed across these terminals.
Indirect
DHW Signal
SYSTEM
A
B
C
D
1 2
RUN PROGRAM
DO NOT APPLY ANY VOLTAGE
TO INPUT TERMINALS
3 4 5 6 7 8 9 10 11 12 13 15 14 17 16 18 20 19 21 24 23 29 25 27 26 28 32 30 31
L N
- + + T T O O RS-485 mA GND VLT
SYS A B C D PWR
CUR / VLT
A
- + +
mA GND VLT
- + +
mA GND VLT
+ +
mA
22
-
GND VLT
+
mA
TEMP
OUTDOOR
O O
TEMP
SYSTEM EXTENSION
MODULE CUR / VLT
B
CUR / VLT
C
CUR / VLT
D
PROVE
/DHW
SHUTDOWN
/SETBACK
FOR ALL CIRCUITS
120VAC, 6A RESISTIVE
OUTPUT RATINGS:
1A PILOT DUTY, 15A TOTAL
115VAC 60Hz , 30VA MAX
INPUT RATINGS:
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
CAUTION: RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
99RA
/TSTAT
M4-LHS
HYBRID CONTROL
Wiring the System Output
(Terminals 3, 4)
• The SYS output relay will energize and remain constantly energized whenever the outdoor temperature is below
the Outdoor Cutoff.
• When the outdoor temperature rises 2°F above the Outdoor Cutoff, the SYS output will remain energized for the
period set by the System Run-On then de-energize. See "System Run-On" on page 31.
• In addition, the System output will energize during summer DHW calls when DHW No Priority is selected. See
"Prove/Indirect Domestic Hot Water (DHW) Priority" on page 24.
• The SYS output has one Normally Open (N.O.) relay contact rated for (1/8 HP).
• The N.O. contacts are dry contacts only. They do not source any voltage.
• Class 1 voltages must enter the enclosure through a different opening from any Class 2 voltage wiring.
System Pump
or Pump Starter
L
N
SYSTEM
A
B
C
D
1 2
RUN PROGRAM
DO NOT APPLY ANY VOLTAGE
TO INPUT TERMINALS
3 4 5 6 7 8 9 10 11 12 13 15 14 17 16 18 20 19 21 24 23 29 25 27 26 28 32 30 31
L N
- + + T T O O RS-485 mA GND VLT
SYS A B C D PWR
CUR / VLT
A
- + +
mA GND VLT
- + +
mA GND VLT
+ +
mA
22
-
GND VLT
+
mA
TEMP
OUTDOOR
O O
TEMP
SYSTEM EXTENSION
MODULE CUR / VLT
B
CUR / VLT
C
CUR / VLT
D PROVE
/DHW
SHUTDOWN
/SETBACK
FOR ALL CIRCUITS
120VAC, 6A RESISTIVE
OUTPUT RATINGS:
1A PILOT DUTY, 15A TOTAL
115VAC 60Hz , 30VA MAX
INPUT RATINGS:
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
CAUTION : RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
99RA
/TSTAT
M4-LHS
HYBRID CONTROL
