Instruction Manual
FT
FT-BA-e-1110 2

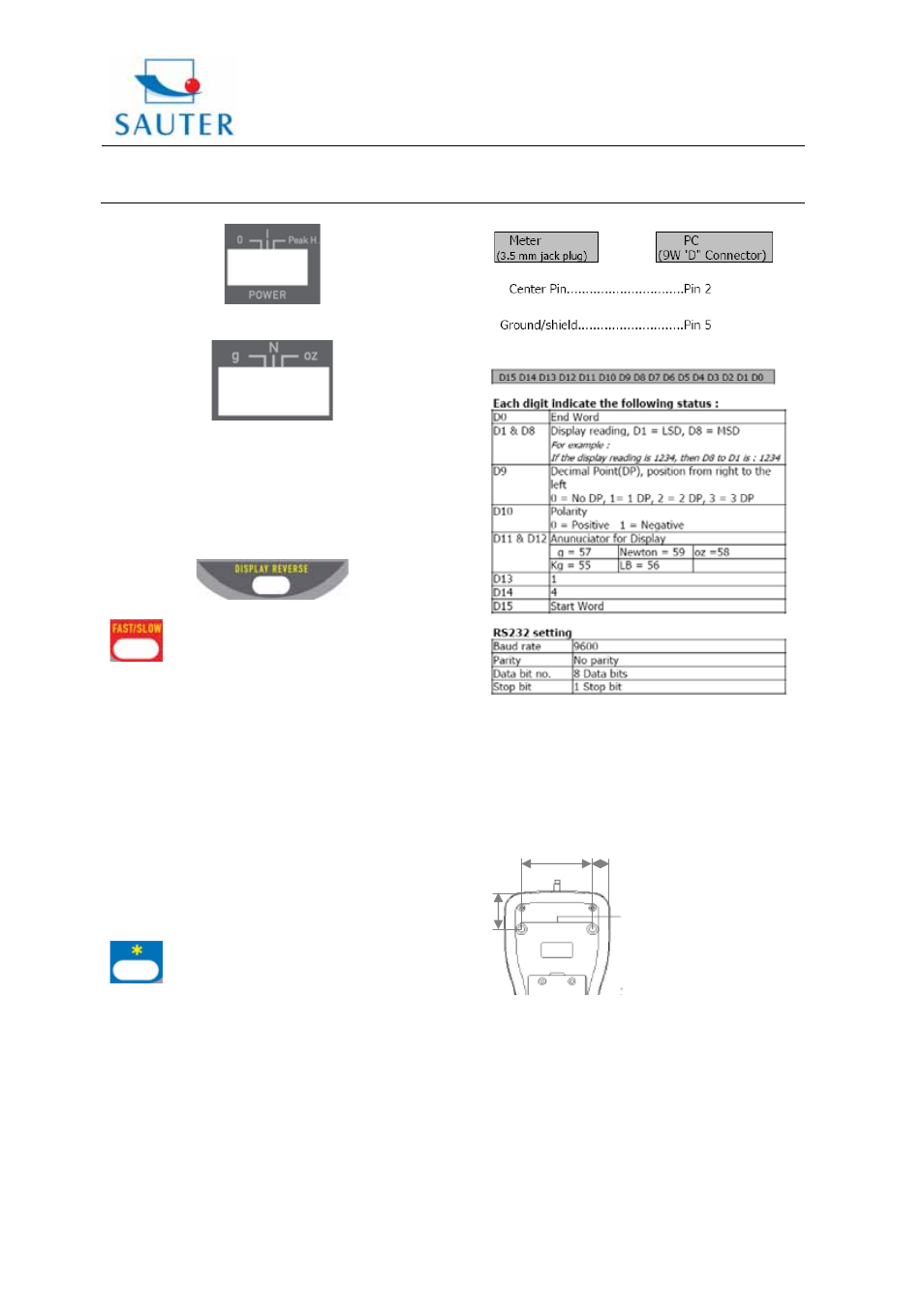

Choose unit and slide switch onto wanted unit
Put chosen attachment on
Zero adjusting by pushing Zero Button before all
measurements
Activate display reverse if needed
Changes from FAST to SLOW:
- FAST: about 0,2 Sek.
- SLOW: about 0,6 Sek.
In case of overload display is showing „-----„
6. Peak- Hold Measurement
Power-Switch onto „Peak-H“
Same as „Normale Measurement“
7. Backlight
Keep pressing for about 2 seconds
Turning off automatically after approx. 15 Sec.
8. RS 232 PC Serial Interface
The instrument features an RS232 output via 3.5 mm
terminal. The connector output is a 16 digit data stream
which can be utilized to the user´s specific application. An
RS232 lead with the following connection will be required
to link the instrument with the PC serial input.
16-digit-Signal:
9. Test Stand Mounting
This force gauge can be mounted to any test stands by
two M 5 screws on the back side
General body dimensions:
L x B x H: 215 x 90 x H 43 mm
2 x M 5 screw ccx 19 mm
60 mm 13 mm
31 mm
