FH External Sensor Attachement
AS, 23.05.2008
FH Sensor Outside Standard Attachm UK.doc
Page 2 of 2
SAUTER GmbH
Schumannstr. 33, D-72458 Albstadt
Tel: +49 (0) 7431 938 666
www.sauter.eu
-

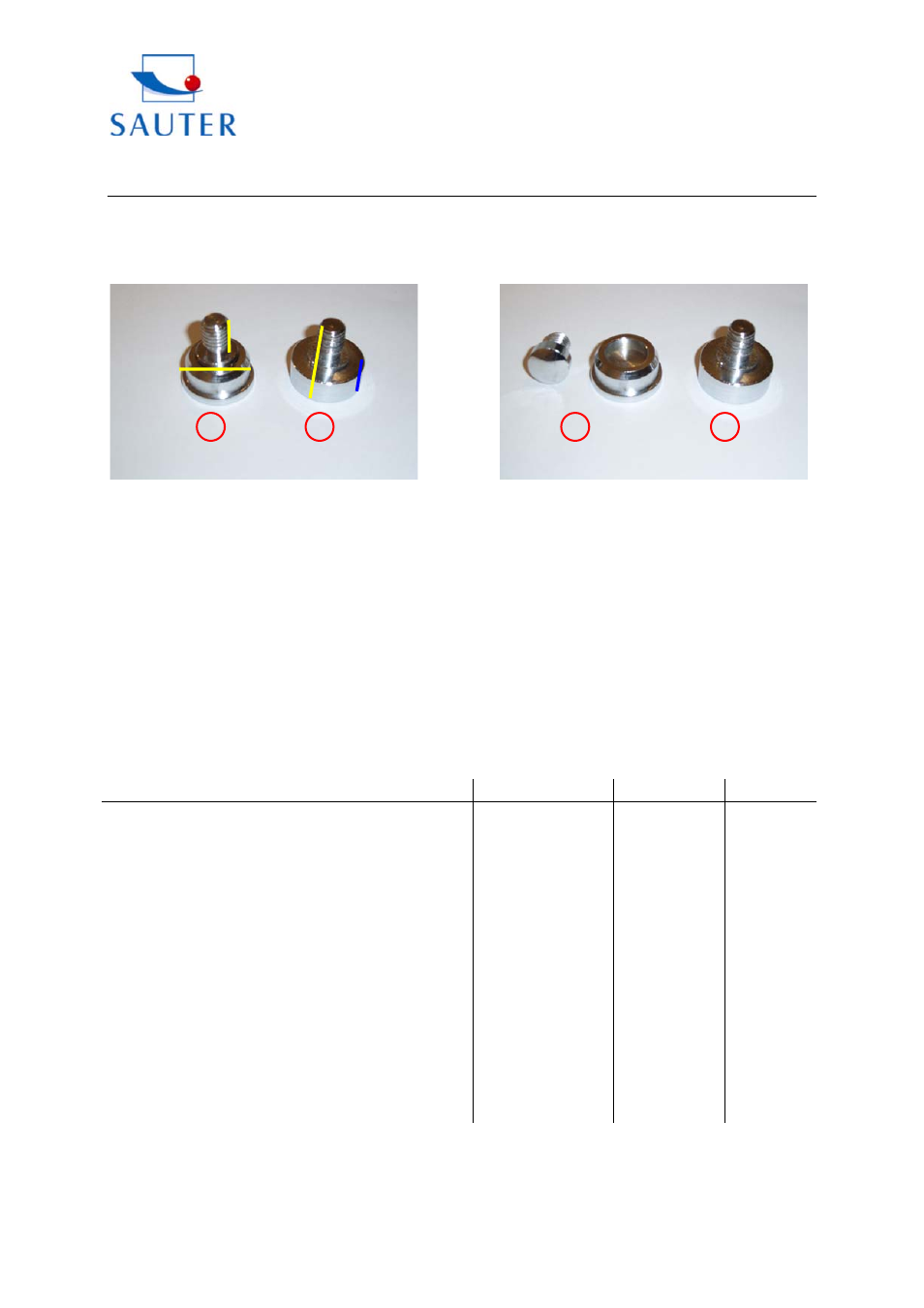

2 x Pressure plates for push-tests
(D)
(A)
(C)
(B)
1.
2.
1.
2.
1. Screw-body with moveable plate
The pressure-plate is placed freely on the screw body. The plate can twist to a certain degree against
the screw-body.
2. Fixed
screw-plate, screwable
The screw-plate and the screw body is one fix piece.
Model
FH 1k – FH 20K
FH 50K
FH 100k
Length of thread (D) for 1. and 2.
Total length incl. plate for 1. (A)
Total length incl. plate for 2. (A)
Diameter of plate for 1. (B)
Diameter of plate for 2. (B)
Thickness of plate for 1. (C)
Thickness of plate for 2. (C)
12 mm
34 mm
29 mm
31 mm
31 mm
18 mm
11 mm
15 mm
47 mm
35 mm
58 mm
48 mm
15 mm
15 mm
18 mm
51 mm
40 mm
58 mm
48 mm
27 mm
27 mm
