Instruction Manual
HMP
HMP-BA-e-1211
10

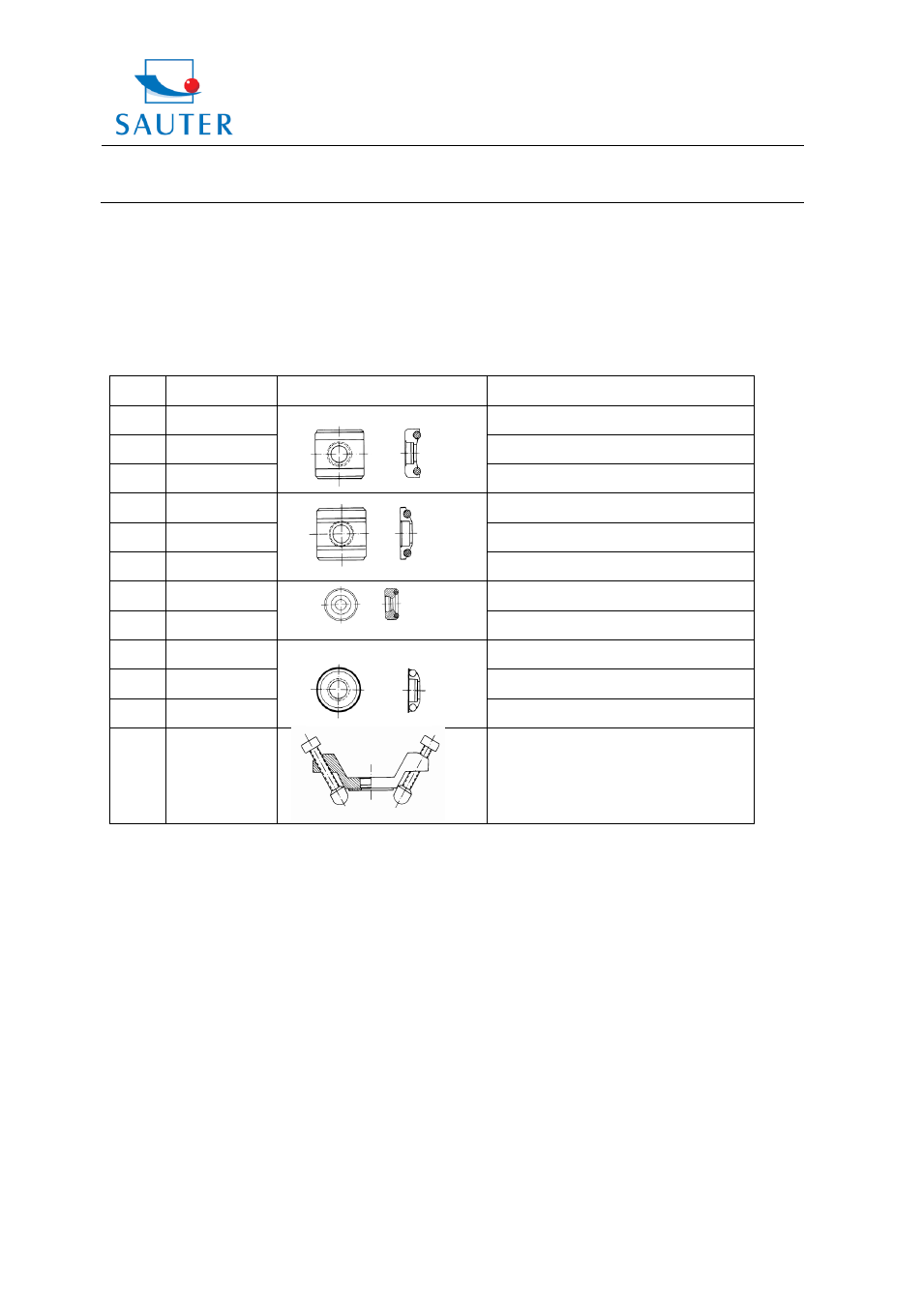

Table 4
Nr.
Type
Sketch
of
non-conventional
supporting ring
Remarks
1
Z10-15
For testing cylindrical outside
R10～R15
2
Z14.5-30
For testing cylindrical outside
R14.5～R30
3
Z25-50
For testing cylindrical outside
R25～R50
4
HZ11-13
For testing cylindrical inside
R11～R13
5
HZ12.5-17
For testing cylindrical inside
R12.5～R17
6
HZ16.5-30
For testing cylindrical inside
R16.5～R30
7
K10-15
For
testing
spherical
outside
surface
SR10～SR15
8
K14.5-30
For
testing
spherical
outside
surface
SR14.5～SR30
9
HK11-13
For
testing
spherical
inside
surface
SR11～SR13
10
HK12.5-17
For
testing
spherical
inside
surface
SR12.5～SR17
11
HK16.5-30
For
testing
spherical
inside
surface
SR16.5～SR30
12
UN
For testing cylindrical outside surface,
radius adjustable R10～
∞
