Juniper Systems RTK GPS Expansion Pack User Manual
Page 7
RTK GPS Expansion Pack
Attaching the Expansion Pack to the Handheld
Follow these instructions to attach the RTK GPS
Expansion Pack to the handheld:
1. Power off the handheld by holding down the power
button for a few seconds and selecting Power Off
from the Power Button menu.

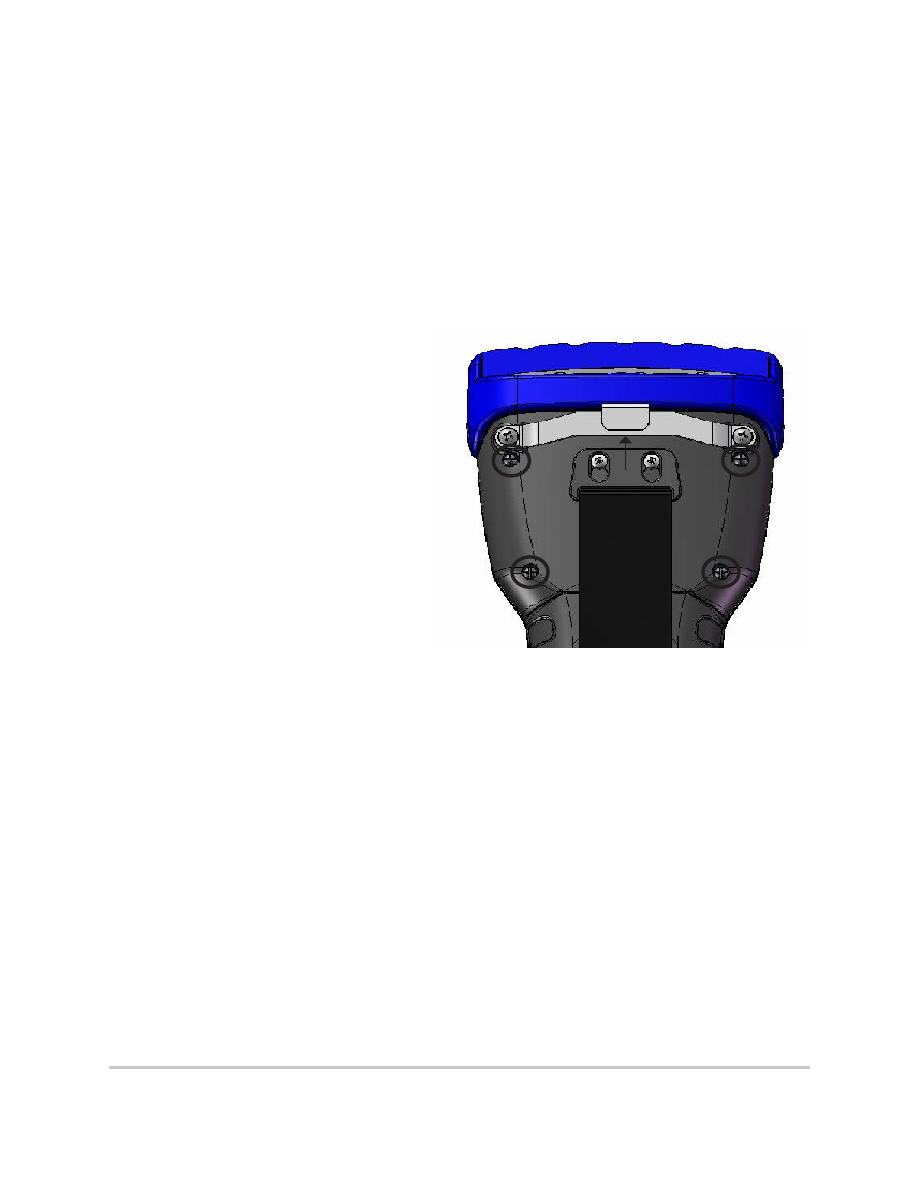

2. Loosen the top four
screws on the back
of the handheld as
shown.
3. Remove the cover
and screws from
the handheld. (The
cover is not used
with the pack.
Place the cover and
screws someplace where you can find them in the
future.)
4. Slide the top of the hand strap up to detach it from
the back. Remove the bottom of the hand strap. (The
hand strap is not used with the pack. Place the hand
strap someplace where you can find it in the future.)
5. Place the RTK GPS Expansion Pack on the back of the
handheld and insert the four screws included with it.
6. Tighten the screws to attach the pack.
