Items Needed
• Desiccant pack with two pieces of Velcro attached (included)
• Small flathead screwdriver
Installation Instructions
To install a desiccant pack in the Allegro, complete the following steps:

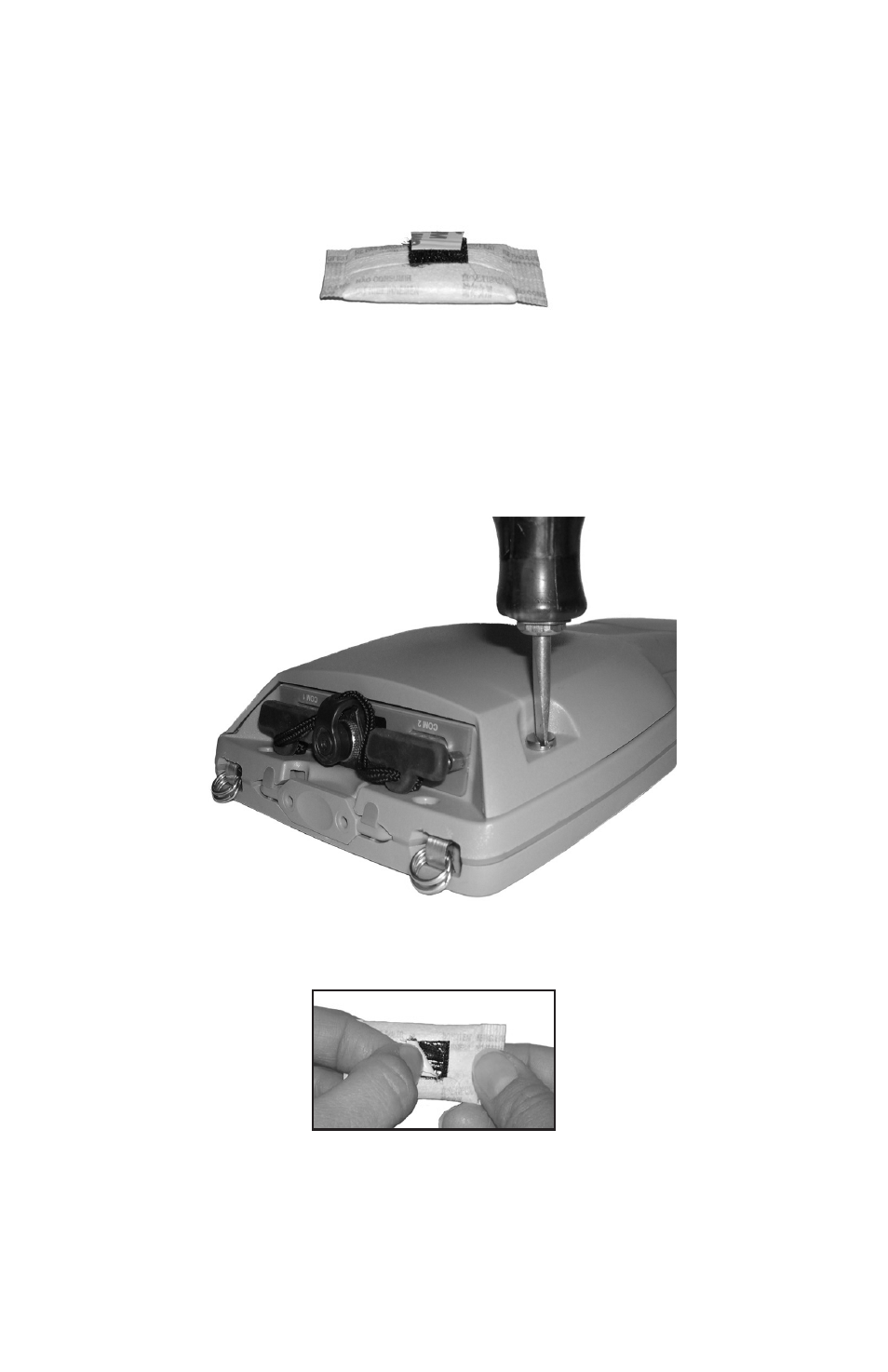

1. Using a small flathead screwdriver (or coin), turn the screws on the
PC Card door ¼ turn to the left to unlock the latches.
2. Remove the adhesive backing from the piece of Velcro attached to
the Velcro that is attached to the desiccant pack.
3. Attach the desiccant pack with the attached Velcro pieces so it is
about ¼ inch below the upper gasket rim and centered between the
PC card door holder tabs. Make sure the lower edge of the desiccant
pack sits directly above the PC Card holder tabs.
Make sure the transparent window is facing out so the color indicator is
visible.
Velcro with adhesive to attach to Allegro
Velcro attached to desiccant pack
