The circuit board controls all of the filter functions. These settings are programmed at the time of
installation. The following is a list of all the microprocessor functions, in the event that any of the
settings need to be adjusted.
Display Icons

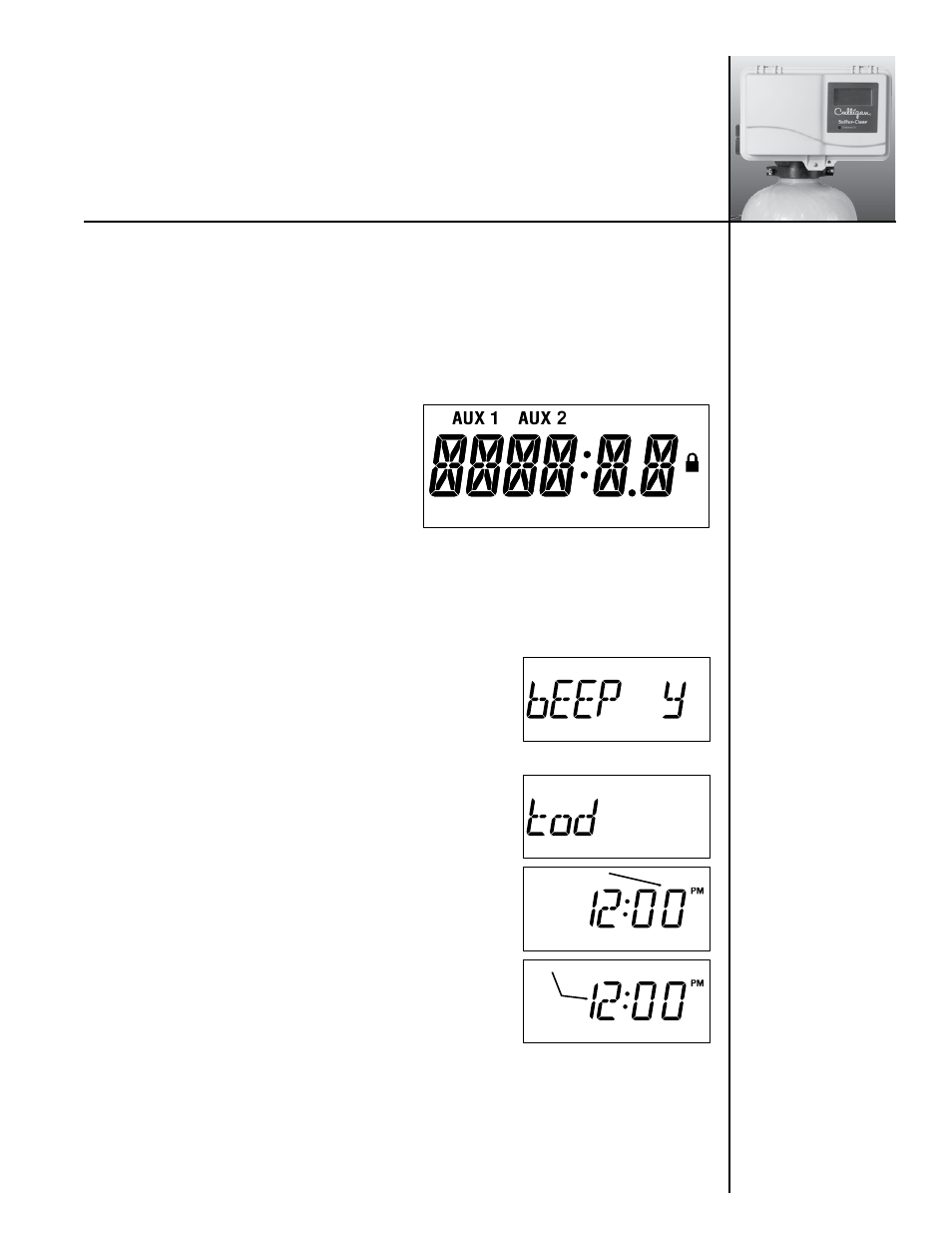

The display is to be backlit and have the icons as shown.
Custom LCD Display
Six standard 12-segment alpha-numeric characters,
a decimal separating the first and second character,
a colon separating the second and third character
positions.
A further description of each programming setting and the corresponding display is outlined below.
For a display that has an icon that is displayed solid for the 2 second time period prior to bringing up
the settings, the settings menu can be reached prior to the two second time out by pressing the “+” or
“-” key.
• Beeper Setting - Beeper Setting – This setting is used to turn
the beeper on or off for each key press actuation. The display will
show “bEEP X” where X is either “Y” or “N”. The “Y” or “N” will
be toggled with the “+” and “-“ keys.
Pressing the “Status” key will move to the next programming step.
• Time of Day - This setting is used to program the current time of
day. When in this step, the display will first show “tod” for two
seconds, then the time.
After “tod” is displayed, “12:00 PM” will display (or the current
set time if already programmed) and the minutes will flash. The
minutes are adjusted with the “+” or “-“ key until the correct value
is displayed. Press the “Regen” key to flash the hours. Adjust
with the “+” or “-“ key until the correct time is displayed.
Pressing the “Status” key will save the setting and move to the
next programming step. Pressing “Regen” will move back to the
minutes adjust.
Programming
Hours Flashing
Minutes Flashing
PM
AM
x10
x100
MASTER REGEN RECLAIM
