Modes of Operation
Manual Regeneration
Pressing and holding the regen button for 5 seconds will initiate an immediate regeneration. The
beeper is to give one beep at the start of manual regeneration (when the motor starts to turn). In delay
mode, pressing and releasing the regen button will light the regen icon for regeneration to occur at the
set delay time. Pressing and releasing the regen button again will turn off the regen icon.
Power Loss
The circuit board is equipped with a Hi-Cap Capacitor and EEPROM memory chip. The capacitor is
capable of maintaining the time, for at least one day, in the event of a power outage. The EEPROM
ensures that the individual programming parameters of your softener are not lost.
If the power outage lasts long
enough to drain the Hi-Cap
Capacitor, the control will flash
“12:00 PM” when power is
returned to the control. The
unit will continue to keep time
from the moment power is
restored, and will initiate a
full regeneration at the preset
regeneration time. The time
of day will need to be reset in
order to return the regeneration
to its preset time.
If you live in an area where
power outages occur with a
regular frequency, a battery
backup option is available for
ensuring that the time of day is
properly maintained. Contact
your Culligan Dealer for more
information.

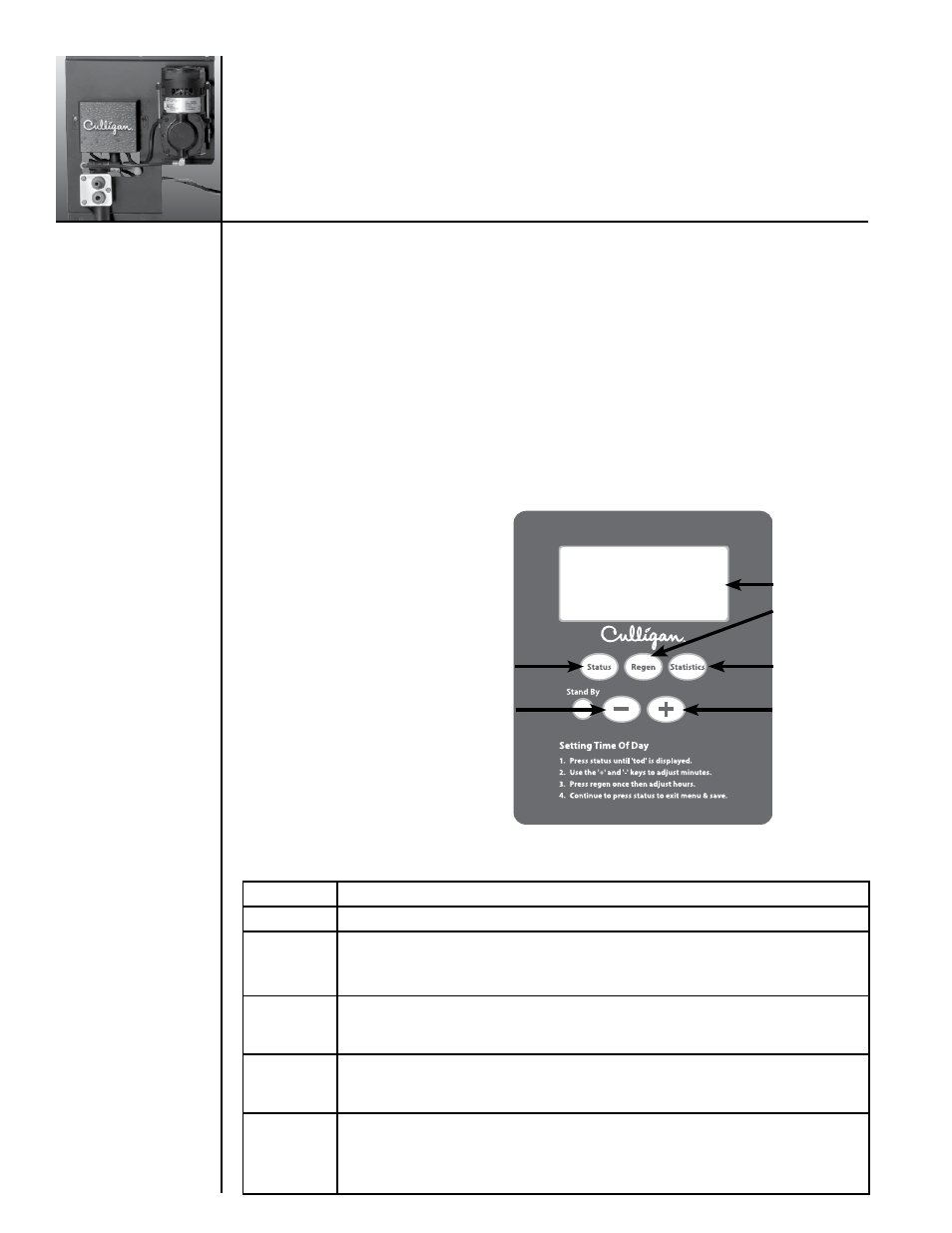

Display Back-lit LCD display.
Program Key Depress to enter and move through the programming steps.
Regeneration
Key
Press and hold the key for five (5) seconds to initiate an immediate regeneration.
When pressed during programming the time of day, this key will allow the user to
toggle between the hours and minutes setting of timing program segments.
Information
Key
Each time depressed, the Statistics key will display statistical information such a
flow rate, time of day. Use with the Toggle Down key to display other statistical
information.
Toggle (-)
Down Key
In the programming mode this key will move the user through the programming
function in a descending mode. If depressed for greater than three seconds, the rate
at which the display scrolls through data will increase.
Toggle (+)
Up Key
In the programming mode this key will move the user through the programming
function in an ascending mode. If depressed for greater than five seconds, the rate at
which the display scrolls through the data will increase.
This key will also allow the user to manually step through the cycles of regeneration.
Familiarization
(cont.)
6
Display
Status/
Program
Key
Toggle
(-) Down
Regeneration
Key
Statistics/
Information
Key
Toggle
(+) Up
