Port Statistics
The following chart provides the current statistic information, which displays the
real-time packet transfer status for each port. The user might use the information
to plan and implement the network, or check and find the problem when the
collision or heavy traffic occurs.

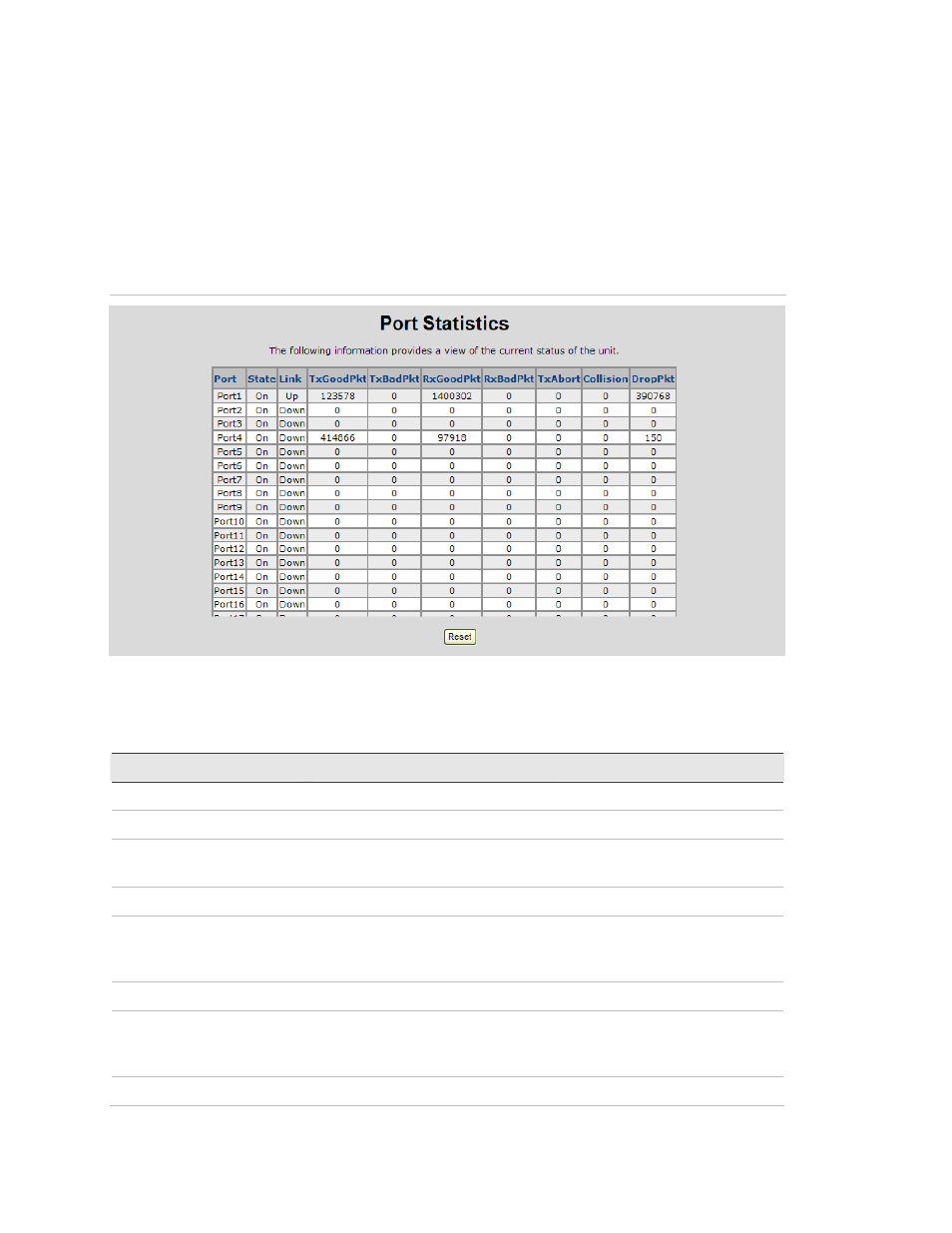

Figure 4-21: Port Statistics interface
This page includes the following fields:
OBJECT DESCRIPTION
Port The port number.
Link The status of linking-'Up' or 'Down'
State
Set by Port Control. When the state is disabled, the port will not
transmit or receive any packet.
Tx Good Packet The counts of transmitting good packets via this port.
Tx Bad Packet
The counts of transmitting bad packets (including undersize [less
than 64 octets], oversize, CRC Align errors, fragments and jabbers
packets) via this port.
Rx Good Packet The counts of receiving good packets via this port.
Rx Bad Packet
The counts of receiving good packets (including undersize [less
than 64 octets], oversize, CRC error, fragments and jabbers) via this
port.
Tx Abort Packet The aborted packet while transmitting.
