18

SIDE 1

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

SIDE 2

1 = White / Orange

2 = Orange

3 = White / Green

4 = Blue

5 = White / Blue

6 = Green

7 = White / Brown

8 = Brown

1 = White / Green

2 = Green

3 = White / Orange

4 = Blue

5 = White / Blue

6 = Orange

7 = White / Brown

8 = Brown

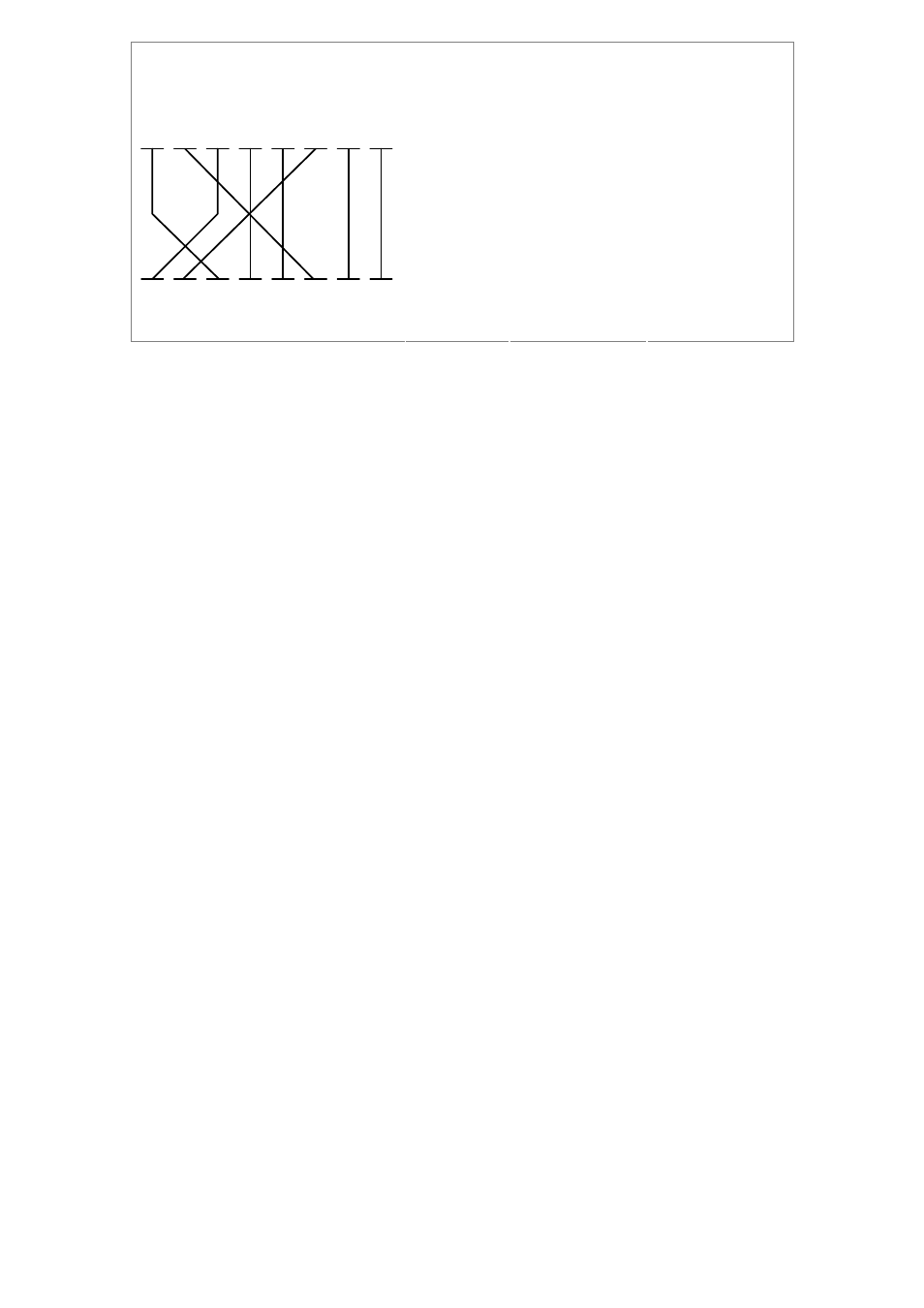

Figure A-1: Straight-Through and Crossover Cable

Please make sure your connected cables are with the same pin assignment and color as the above
picture before deploying the cables into your network.
