If there is no power socket in the network environment for Non-PoE networked device, the
MC252-1P-1CX can be of great help by conveniently and easily providing this Ethernet device
with DC power. Via the DIP switch configuration, the MC252-1P-1CX separates the power out
and provides two kinds of DC power output and its voltage and current are shown below:
 12V DC, 2A max.
 24V DC, 1A max.
 MC252-1P-1CX has two power output options; only one mode is available at
one time. It cannot use DC power output if power output of DIP switch is in
PoE output position.
 Disconnect “PoE IN” coaxial cable before changing 12/24V DIP Switch.
Incorrect voltage from “DC Out” might cause damage to connected device.

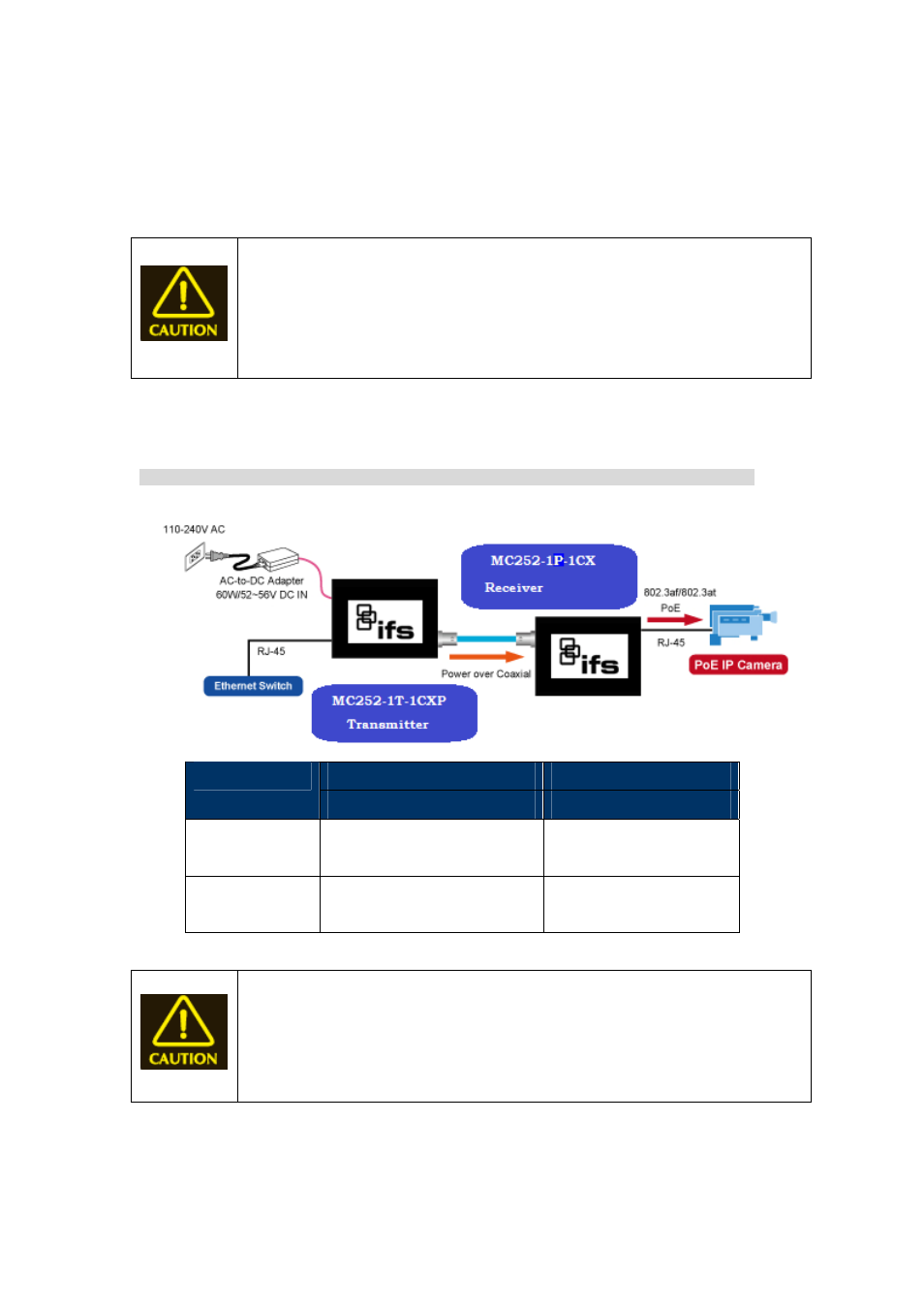

2.2 Applications of MC252-1T-1CXP and MC252-1P-1CX
Type 1 – MC252-1T-1CXP with 52~56V power adapter and MC252-1P-1CX with PoE power output
CPE CO
MC252-1T-1CXP MC252-1P-1CX
Power Input
Power adapter with 52~56V
DC in
BNC with DC power over
coaxial input
Power Output
BNC with DC power over
coaxial output
RJ-45 with 802.3at/af
PoE output
1. PoE Output Capacity is based on different DC Power Input / PoE Input.
2. MC252-1T-1CXP has two power input options; only one mode is available at
one time. It cannot use PoE power input if power input of DC 52V or 56V is
selected.
