14

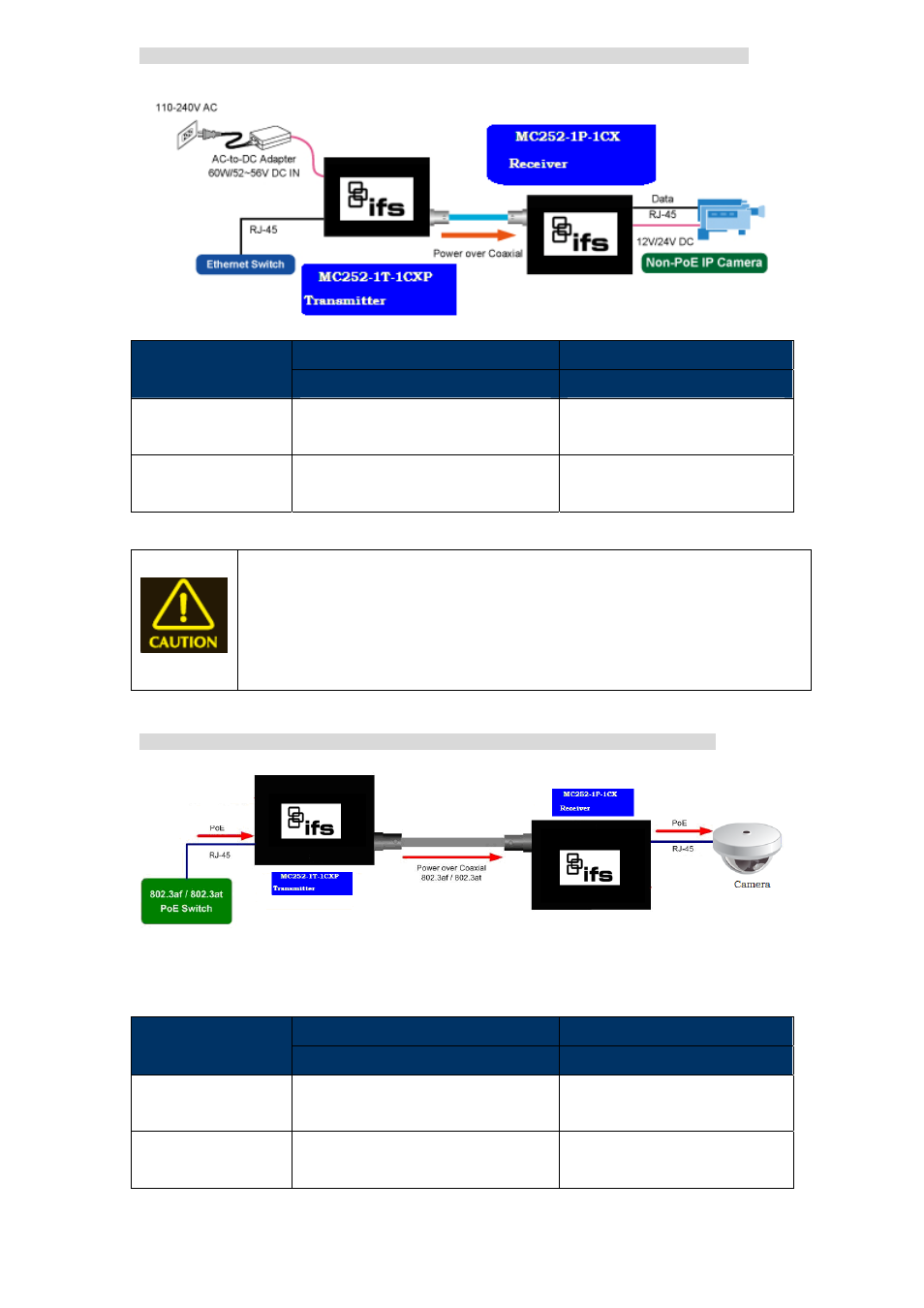

Type 2 – MC252-1T-1CXP with 52~56V power adapter and MC252-1P-1CX with DC power output
CPE CO
MC252-1T-1CXP MC252-1P-1CX
Power Input
Power adapter with 52~56V DC in BNC with DC power over
coaxial input
Power Output
BNC with DC power over coaxial
output
DC Terminal block with 12V or
24V DC output
1. Please ensure the MC252-1P-1CX output voltage is correct for remote
device.
2. Please plug off the PoE Coaxial cable from MC252-1P-1CX before switching
off the Power Voltage DIP during operation. Wait for 3 seconds until the “PoE
IN” LED is completely OFF. Otherwise, it might damage your devices.
Type 3 – MC252-1T-1CXP with PoE power input and MC252-1P-1CX with PoE power output
CPE CO
MC252-1T-1CXP MC252-1P-1CX
Power Input RJ-45 with 802.3at/af PoE input
BNC with DC power over
coaxial input
Power Output
BNC with DC power over coaxial
output
RJ-45 with 802.3at/af PoE
output
