ENCLOSURE DIAGRAM
Inside the can, several 2-holed insertion points
have been constructed. This allows for either
vertical or horizontal placement of the modules.
Notice that the insertion points have two
sizes of holes -- a larger hole and a smaller
hole.

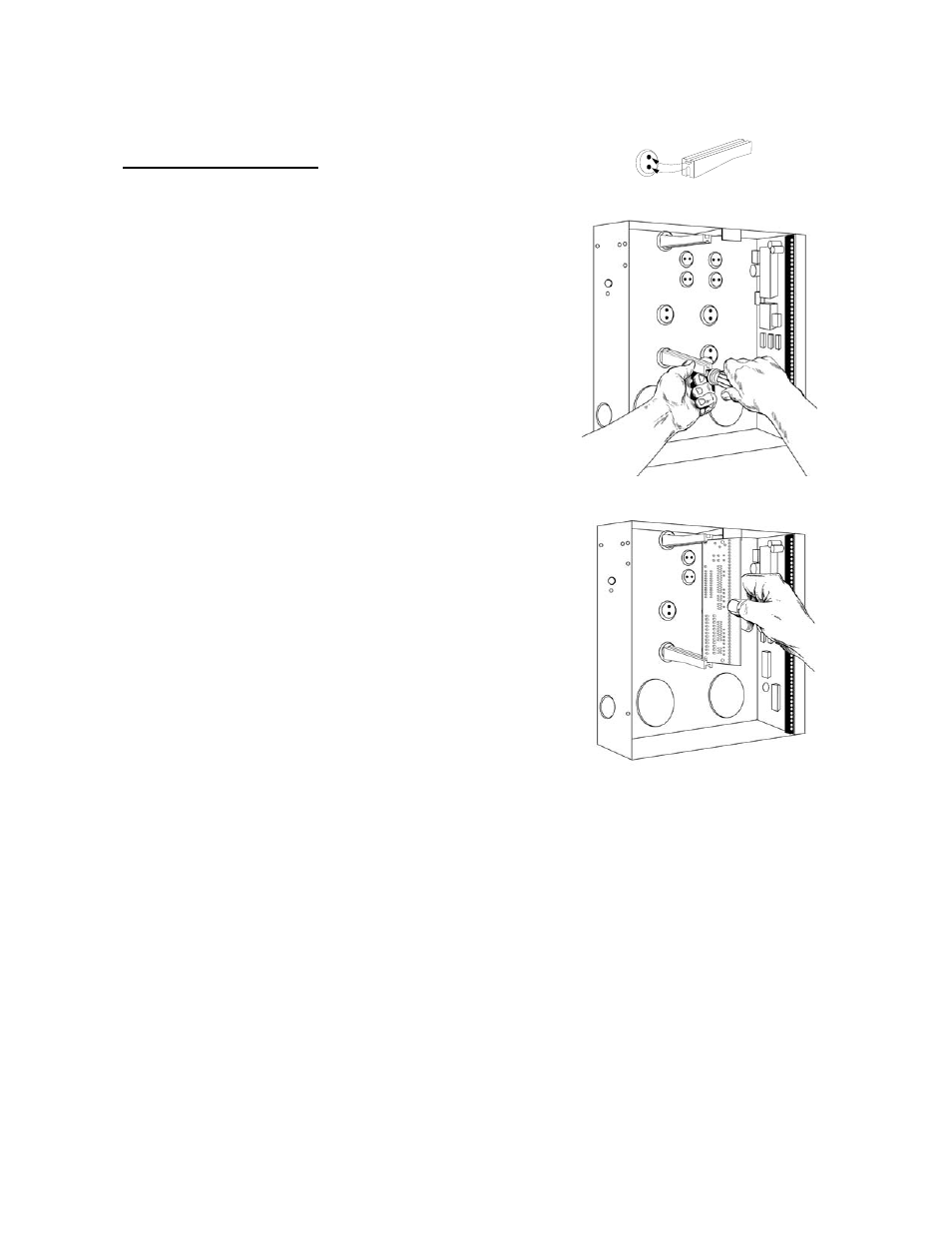

Diagram 1: The black plastic PCB guides are
grooved on one edge where the PC Board will be
seated. The end with the half-moon protrusion fits
into the larger hole. The smaller hole is for the
screw.
Diagram 2: Place the first black plastic PCB guide
in the top insertion point, grooved edge downward.
The half-moon protrusion will be in the large hole.
It does not require force. Insert one of the
provided screws into the smaller hole (from inside
the can) to secure it in place. A screwdriver should
reach through the notch that runs the length of the
guide to tighten the screw. The second PCB guide
should be positioned opposite of the first (grooved
edge up) and placed in the lower insertion point,
using the same procedures described above. Once
mounted, screw it in securely.
Diagram 3: The PC board should slide freely in the
grooves of both guides.
