IC Realtime Flex Series: 64 Channel 2CIF 3U Standalone DVR User Manual
Page 75
65
Time display: You can select system displays time or not when you playback. Please click
set button and then drag the title to the corresponding position in the screen.
Channel display: You can select system displays channel number or not when you playback.
Please click set button and then drag the title to the corresponding position in the screen.
Copy： This function allows you to copy one channel setup to another. After setting in
channel 1, you can click paste button and turn to channel 2 and then click copy button. You
can finish setting for one channel and then click save button or you can finish all setup and
then click save button to memorize all the settings.

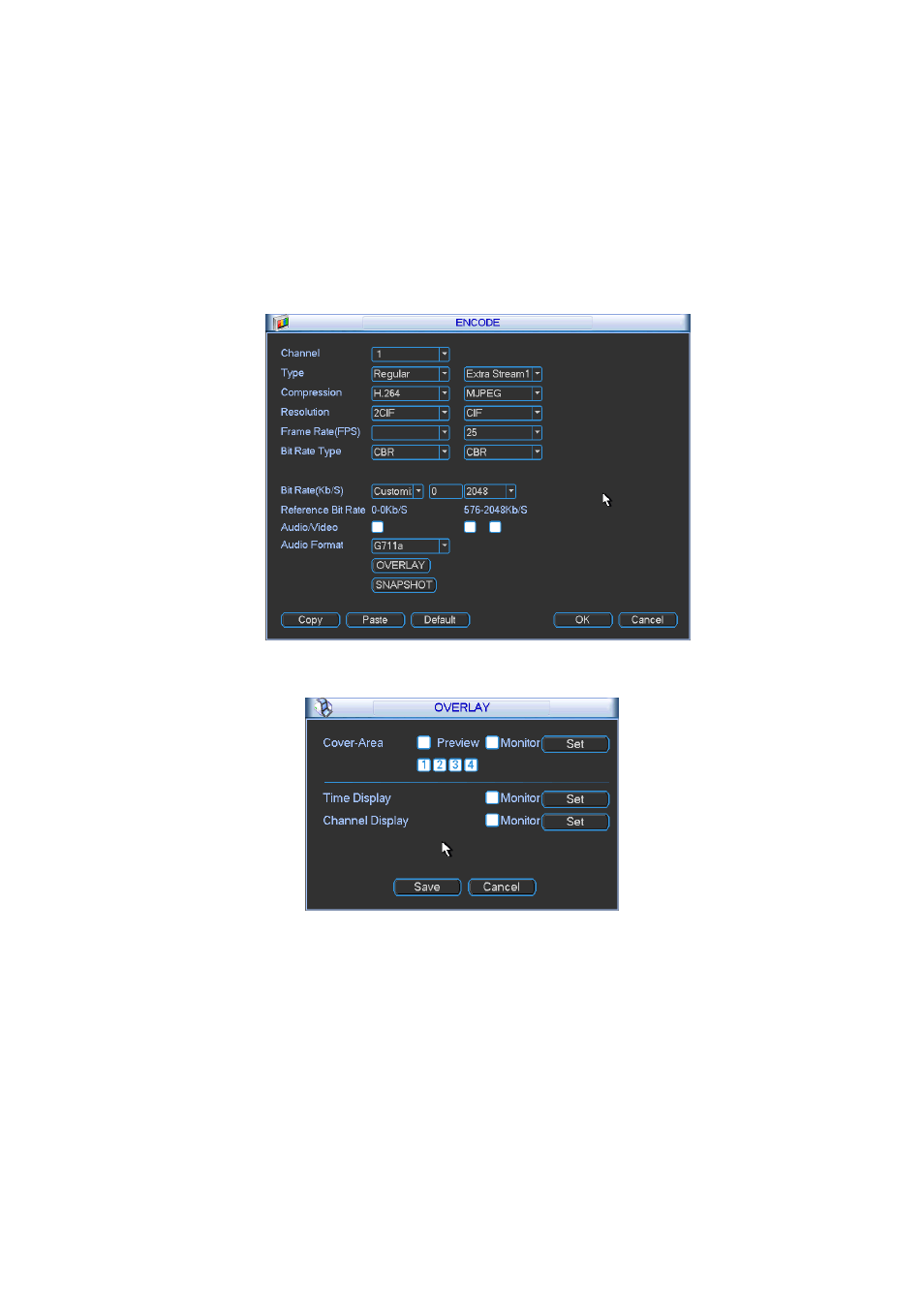

Figure 5-6
Figure 5-7
5.3.3 Schedule
Please refer to chapter 4.4 schedule.
5.3.4 RS232
RS232 interface is shown as below. There are five items. See Figure 5-8.
z
Function: There are various devices for you to select. Console is for you to use the COM or
mini-end software to upgrade or debug the program. The control keyboard is for you to
control the device via the special keyboard. Transparent COM (adapter) is to connect to the
PC to transfer data directly. Protocol COM is for card overlay function. Network keyboard is
