Note:
z
You can connect the HDD data cable and the power cable first and then fix the HDD in the
device.
z Please pay attention to the front cover. It adopts the vertical sliding design. You need to
push the clip first and then put down.
3.4 Rack Installation
Please follow the steps listed below.
z
Use twelve screws to fix the unit
z Please make sure the indoor temperature is below 35℃ (95°f).
z Please make sure there is 15cm (6 inches) space around the device to guarantee sound
ventilation.
z Please install from the bottom to the top.
z If there are more accessories connected in the rack, please take precaution measures in
case the rack power is overload.
3.5 Connecting Power Supply
Please check input voltage and device power button match or not.
We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral
equipments operation such as cameras.
3.6 Connecting Video Input and Output Devices

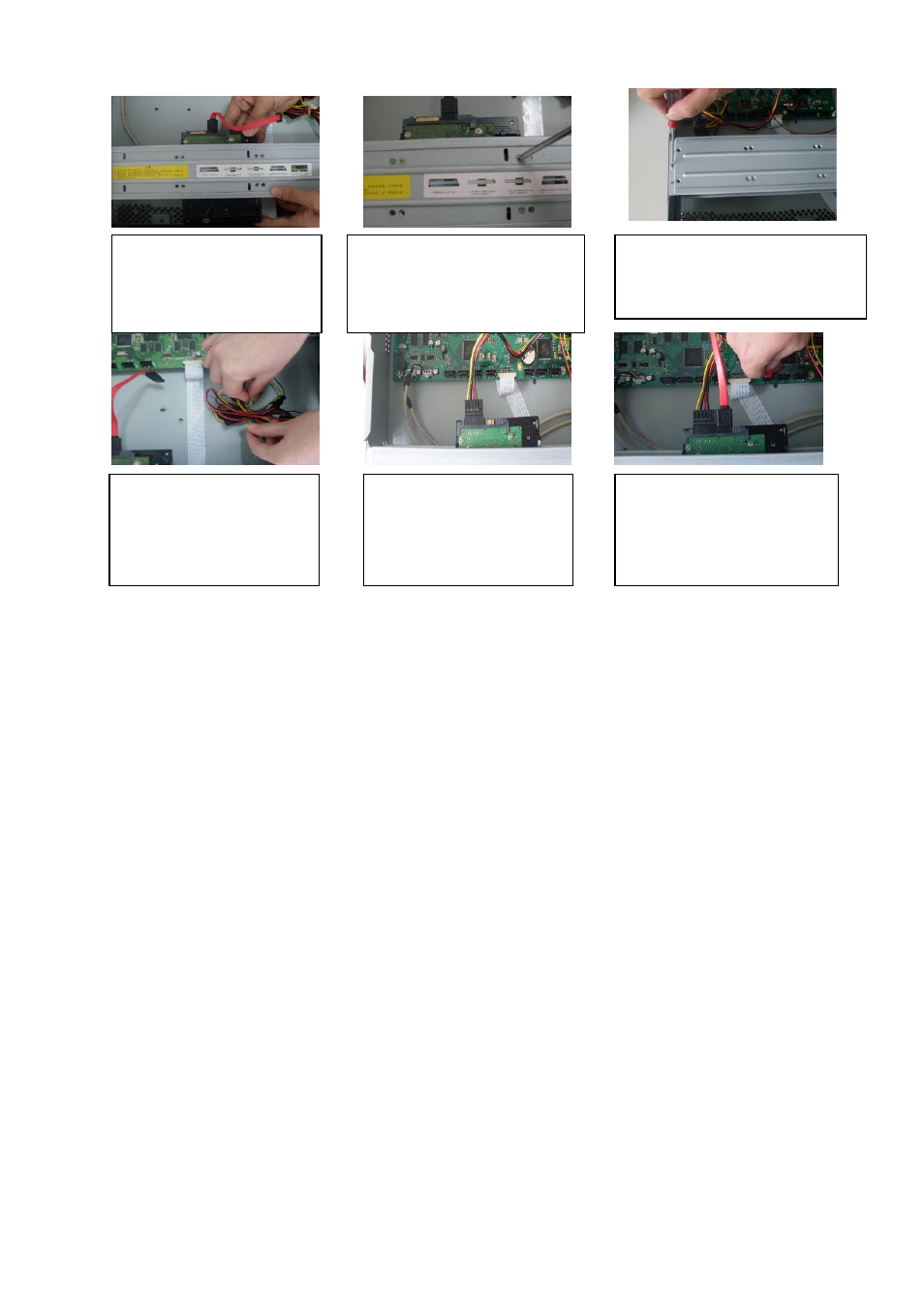

4. Line up the HDD to the
four holes of the HDD
bracket.
5. Use screws to fix HDD. 6. Install the upper bracket and then
Use screws to fix HDD in the
bracket.
7. Unfasten the HDD power
cable.
9.
Use the special data cable to
connect the HDD and the SATA
port. Close the chassis and fix
the screws to secure firmly.
8.
Insert the HDD power
cable.
