58

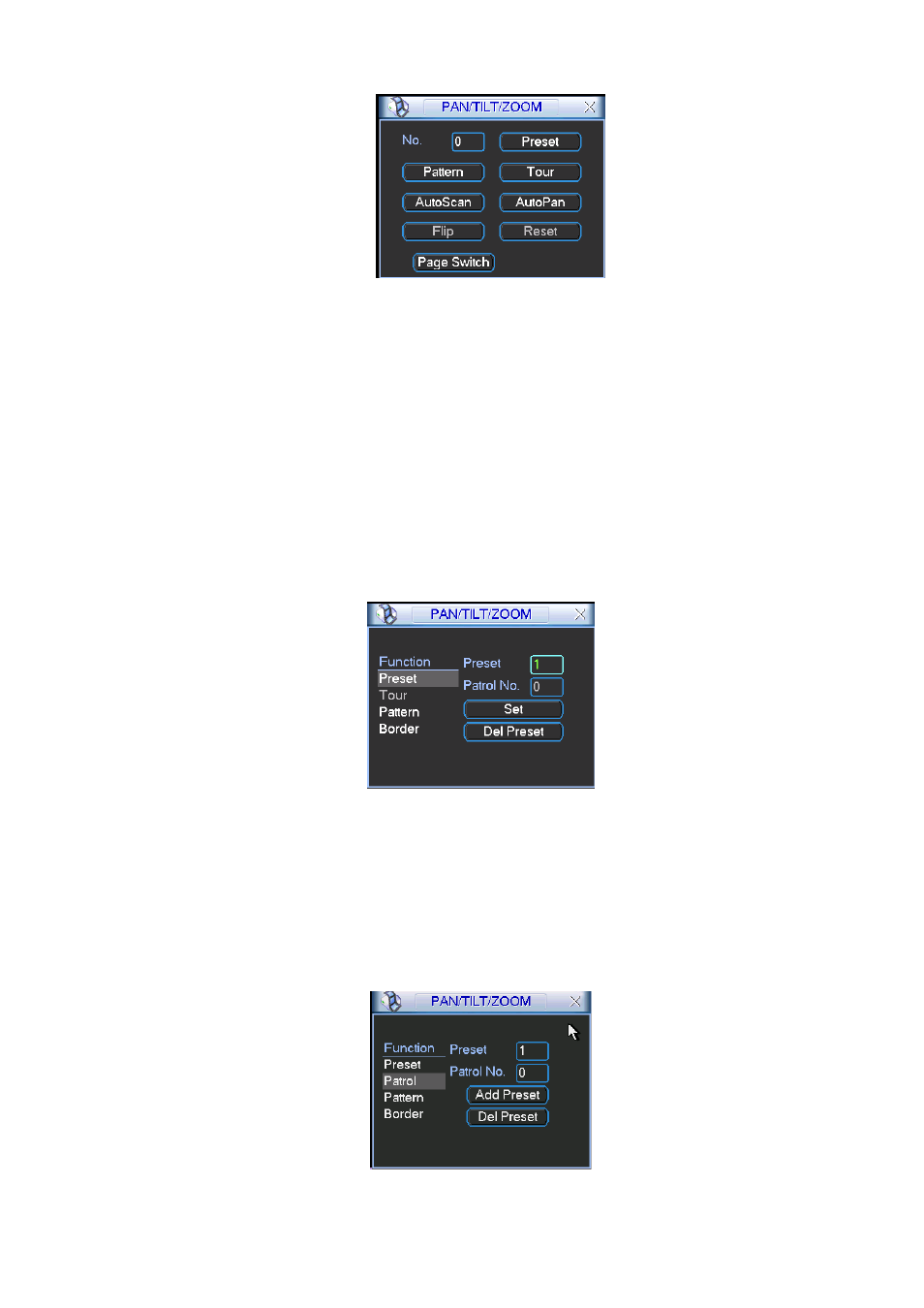

Figure 4-46
Note:
z
Preset, tour and pattern all need the value to be the control parameter. You can define it as
you require.
z You need to refer to your speed dome user’s manual for Aux definition. In some cases, it
can be used for special process.
z The following setups are usually operated in the
X332H332H332H
Figure 4-42, Figure 4-45 and Figure 4-46.
4.9.1Preset Setup
In Figure 4-42, use eight direction arrows to adjust camera to the proper position.
In Figure 4-45, click preset button and input preset number. The interface is shown as in Figure
4-47.
Now you can add this preset to one tour.
Figure 4-47
4.9.2 Activate Preset
In Figure 4-46, please input preset number in the No. blank, and click preset button.
4.9.3 Patrol setup (Tour Setup)
In Figure 4-38, click patrol button. The interface is shown as in Figure 4-48.Input preset number
and add this preset to a patrol (tour). For each patrol (tour), you can input max 80 presets.
Figure 4-48
