IC Realtime Flex Series: 64 Channel 2CIF 3U Standalone DVR User Manual
Page 158
148
Destination IP refers to other systems that receive information.
There are total four groups IP. The record channel applies to one group (optional) only.
Six frame ID groups verification can guarantee information validity and legal.
The start position, length and data can be set according to your protocol and data packet. There
are total four fields.

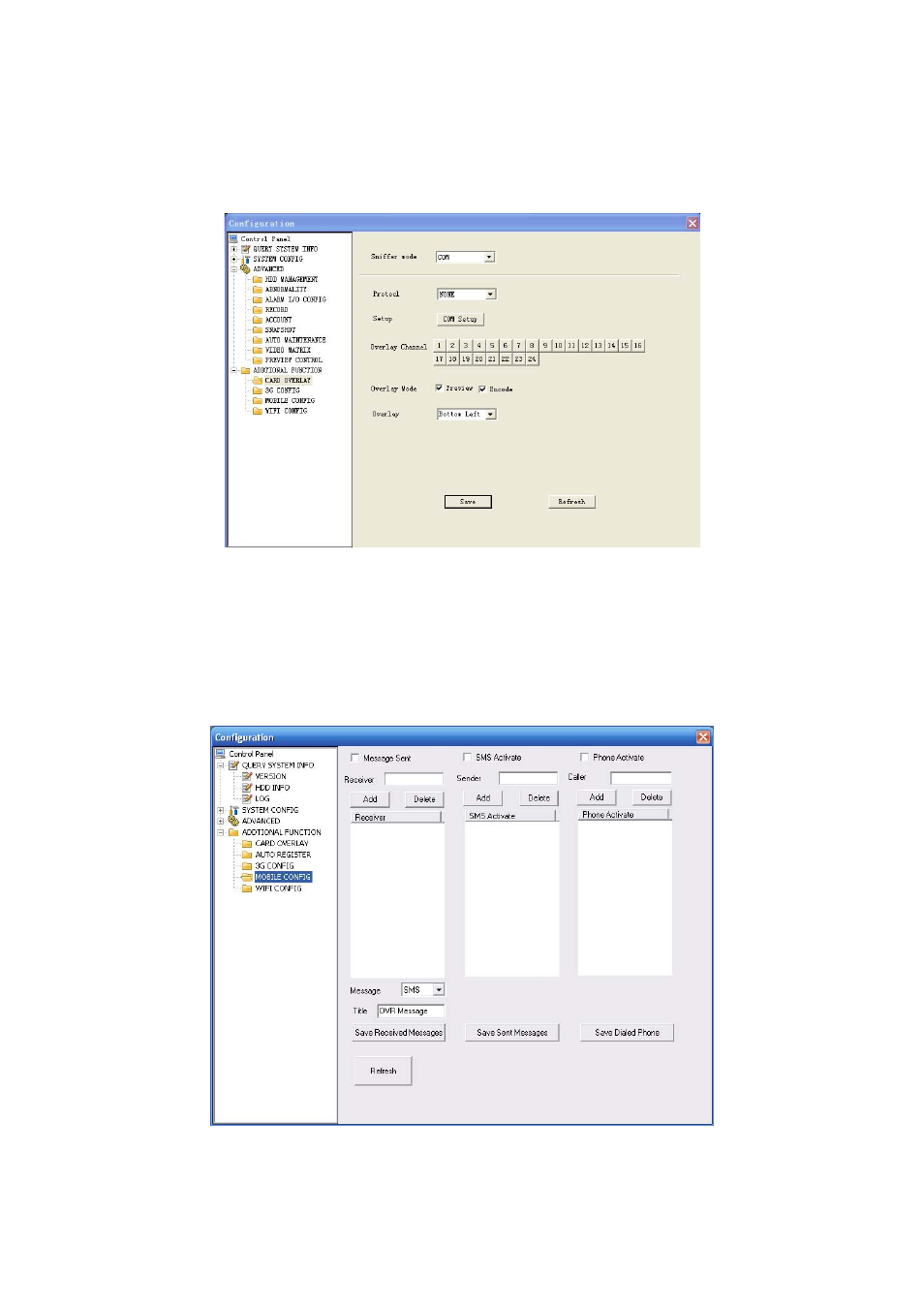

Figure 7-62
7.5.4.3 Mobile Config
The mobile setup interface is shown as in Figure 7-63.
Here you can activate or disconnect device 3G connection such as telephone or mobile phone,
or the alarm activated message No.
Figure 7-63 Mobile Setup
