14
USB port To connect USB storage device, USB mouse.
Remote control
indication light
ACT Remote control indication light
Status indication
light
Status If there is Fn indication light, current status indication light is null.
Power indication
light
PWR Power indication light.
Record light 1-32
It becomes on when system is recording.
For 32-channel series
When the light flashes slowly, it means the corresponding
channel of 1-16 channel is recording now.
When the light flashes fast, it means the corresponding channel
of 17-32 channel is recording now. When the light becomes on,
It means the corresponding 2-channel is recoding now.
IR Receiver IR It is to receive the signal from the remote control.
2.2 Rear Panel
2.2.1 1.5U series

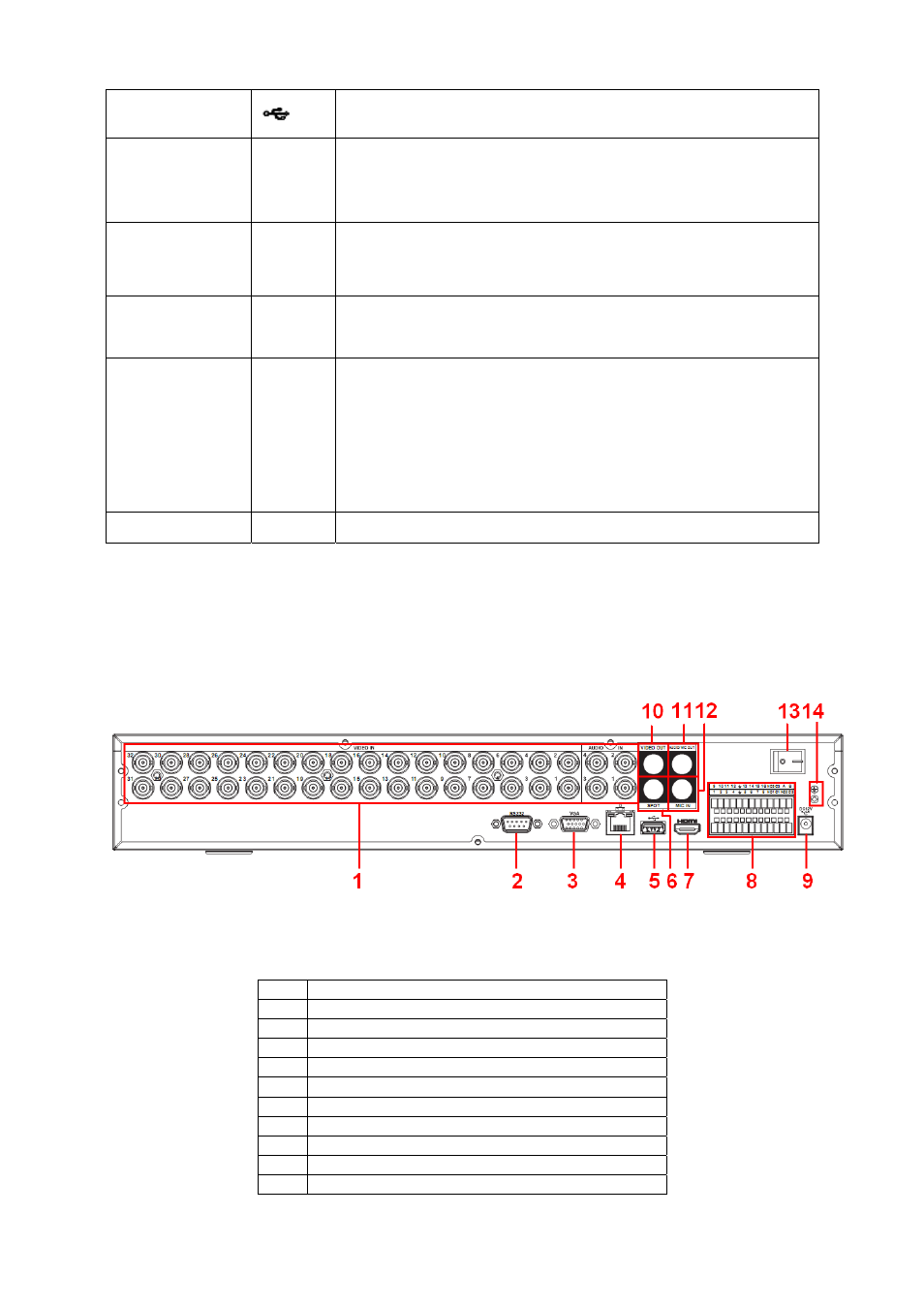

The rear panel of 24/32-ch series product is shown as in Figure 2-4.
Figure 2-4
Please refer to the following sheet for detailed information.
1 Video input
2 RS232 port
3 Video VGA output
4 Network port
5 USB port
6 SPOT output
7 HDMI output
8 Alarm input/Alarm output/RS485 port
9 Power socket
10 Video output
11 Audio/Bidirectional talk output port
