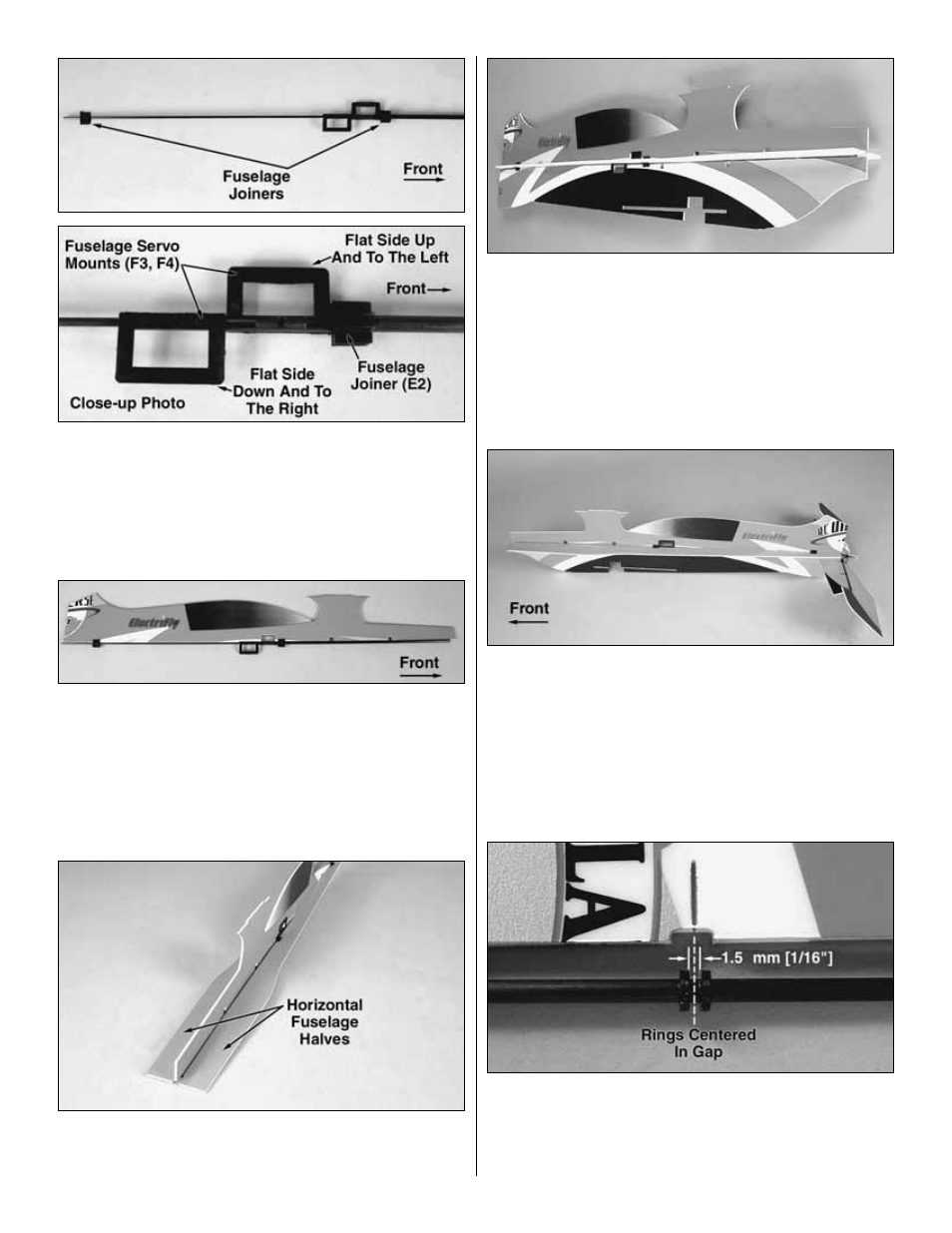

3. Slide a fuselage joiner (E2), two fuselage servo mounts

(F3, F4), (F3 and F4 are the same and are interchangeable),
and another fuselage joiner onto the fuselage tube. With the
tube doubler forward, the front servo mount should point up with
its flat surface on the left, and the rear servo mount should point
down with its flat surface on the right.

4. Position the servo mounts and fuselage joiners so that they

align with the precut slots in the upper vertical fuselage half.

5. Glue the fuselage tube to the upper vertical fuselage half.

6. Glue the left and right horizontal fuselage halves to the

fuselage tube. Make sure they are perpendicular to the
upper vertical fuselage.

7. Glue the lower vertical fuselage half to the fuselage

tube. Make sure to keep it parallel with the upper half and
perpendicular to the horizontal fuselage.

8. Glue the stabilizer into position as far forward in the

stabilizer slot as it will go. Be sure that the stab is centered
left to right and is perpendicular to the fuselage.

9. Slide two hinge retainer rings (C3) onto the rudder

post tube. Test fit the tube onto the fuselage and center the
rings in the gap shown, leaving 1.5 mm [1/16"] between
them. When satisfied with the fit, glue the rings to the tube
and glue the tube to the fuselage.

9
