Whenever the term glue is written you should rely upon
your experience to decide what type of glue to use. When
a specifi c type of adhesive works best for that step, the
instructions will make a recommendation.
●
Photos and sketches are placed before the step they
refer to. Frequently you can study photos in following steps
to get another view of the same parts.
●
The stabilizer, wing incidences, and motor thrust angles
have been factory-built into this model. However, some
technically-minded modelers may wish to check these
measurements anyway. To view this information visit the
web site at www.greatplanes.com and click on “Technical
Data.” Due to manufacturing tolerances which will have
little or no effect on the way your model will fl y, please
expect slight deviations between your model and the
published values.
●
The PT-19 EP is factory-covered with Top Flite ® MonoKote ®
fi lm. Should repairs ever be required, MonoKote can be
patched with additional MonoKote purchased separately.
MonoKote is packaged in six-foot rolls, but some hobby
shops also sell it by the foot. If only a small piece of
MonoKote is needed for a minor patch, perhaps a fellow
modeler would give you some. MonoKote is applied with
a model airplane covering iron, but in an emergency a
regular iron could be used. A roll of MonoKote includes full
instructions for application. Following are the colors used
on this model and order numbers for six foot rolls.
Yellow TOPQ0203
Sapphire Blue TOPQ0226
Missile Red TOPQ0201
Jet White TOPQ0204
Black TOPQ0208
KIT INSPECTION
Before starting to build, take an inventory of this kit to make
sure it is complete, and inspect the parts to make sure they
are of acceptable quality. If any parts are missing or are not of
acceptable quality, or if you need assistance with assembly,
contact Product Support. When reporting defective or
missing parts, use the part names exactly as they are written
in the Kit Contents list.
Great Planes Product Support
3002 N Apollo Drive, Suite 1
Champaign, IL 61822
Telephone: (217) 398-8970, ext. 5
Fax: (217) 398-7721
E-mail: [email protected]

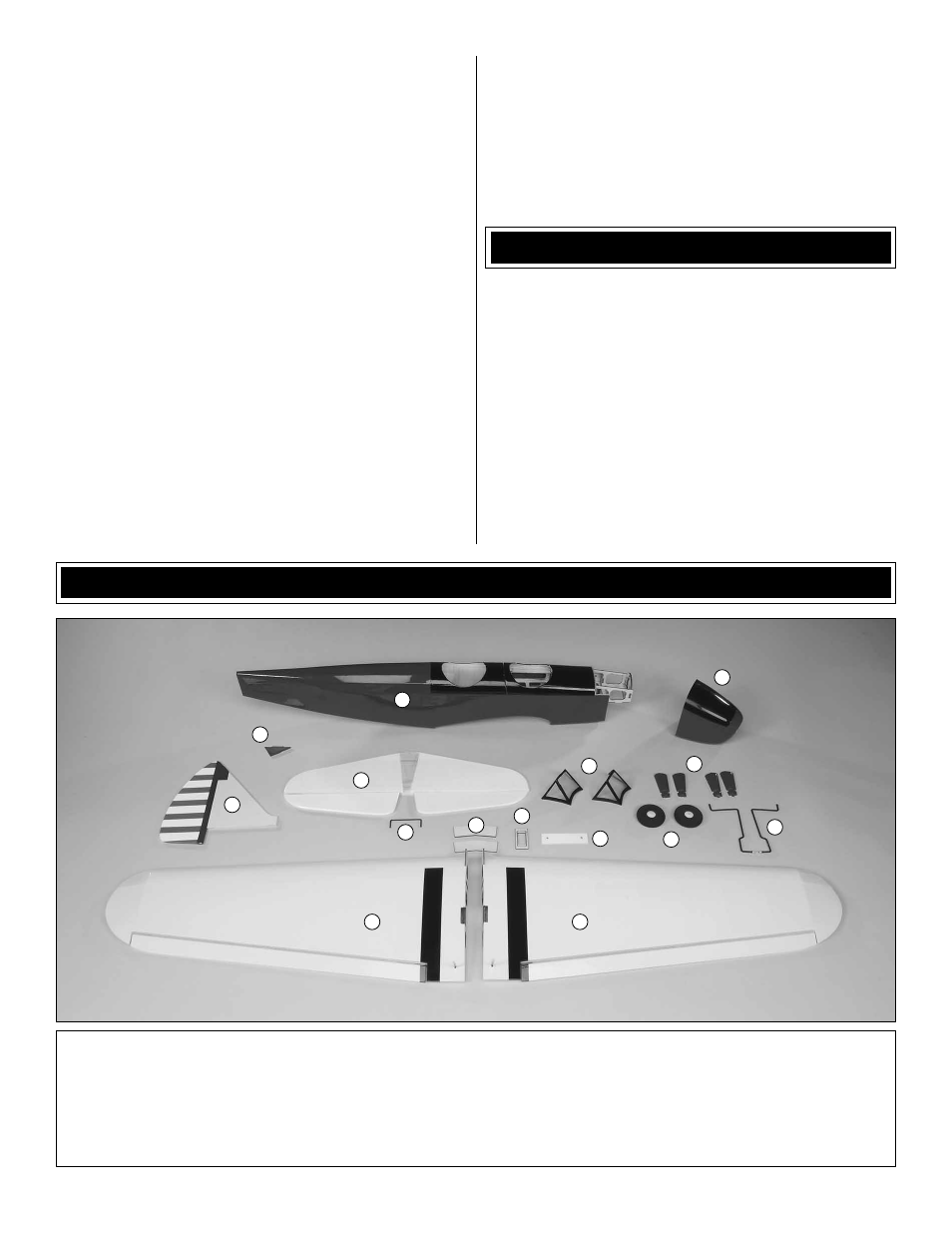

KIT CONTENTS
1. Fuselage
2. Cowl
3. Tail Skid
4. Vertical Fin & Rudder
5. Horizontal Stabilizer & Elevators 6. Elevator Joiner
7. Windscreens
8. Landing Gear Pants
9. Wheels
10. Main Landing Gear Legs 11. Wing Joiners
12. Servo Mounting Plate
13. Wing Bolt Plate
14. Left Wing
15. Right Wing
1
6
2
4
9
10 11
12
13
14 15
8 7
3
5
