12
❏

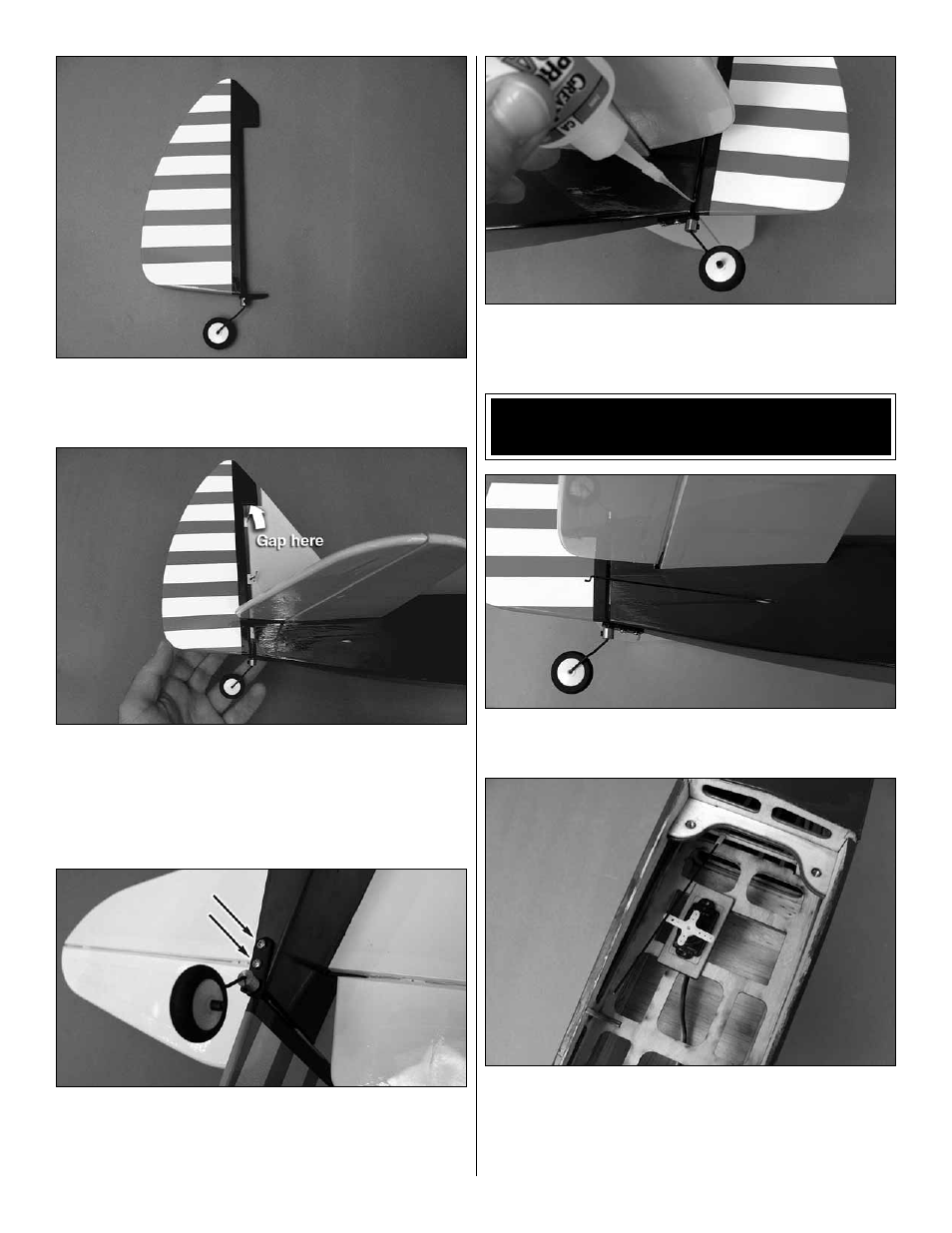

5. Fit the tailwheel assembly to the rudder by sliding the
guide wire into the pre-drilled hole in the rudder. Do not glue
it in place at this time.
❏
6. Prepare three hinges and fi t the rudder to the fi n.
Slide the rudder up enough to leave a gap between the
counterbalance portion of the rudder and the top of the fi n.
Defl ect the rudder left and right a few times as you push it up
against the TE of the fi n. Check for smooth operation. When
you’re satisfi ed, glue the rudder in place.
❏
7. Turn the model upside down and position the tailwheel
strap as shown. Drill two 1/16" [1.6mm] holes through the
fuselage and install the strap using two 2mm x 7mm sheet
metal screws.
❏
8. Tighten the set screw on the wheel collar for the
tailwheel wire and apply a few drops of thin CA into the
tailwheel guide wire.
INSTALL THE ELEVATOR
& RUDDER SERVOS
❏
1. Fit a 1mm x 440mm Z-bend pushrod through the
pushrod guide tube on the right side of the fuselage.
❏
2. Fit your elevator servo to the servo tray in the fuse
as shown. Use a servo mounting plate to fi t your particular
servo to the servo tray. Position the servo on the tray so
that the outermost hole of the servo arm is aligned with the
straight pushrod.
