Page 50: Reset
Chapter 5: Local Management
5-4
2E48-27R/2E49-27R User’s Guide
5.3.1
Console Cable Connection
Use the Console Cable Kit provided with the 2E4X-27R to attach the
management terminal to the 2E4X-27R COM port as shown in
.
Connect an IBM PC or compatible device, running the VT terminal
emulation, to the 2E4X-27R as follows:
1.
Connect the RJ45 connector at one end of the cable (supplied in the
kit) to the COM port on the 2E4X-27R.
2.
Plug the RJ45 connector at the other end of the cable into the
RJ45-to-DB9 adapter (supplied in the kit).
3.
Connect the RJ45-to-DB9 adapter to the communications port on
the PC.

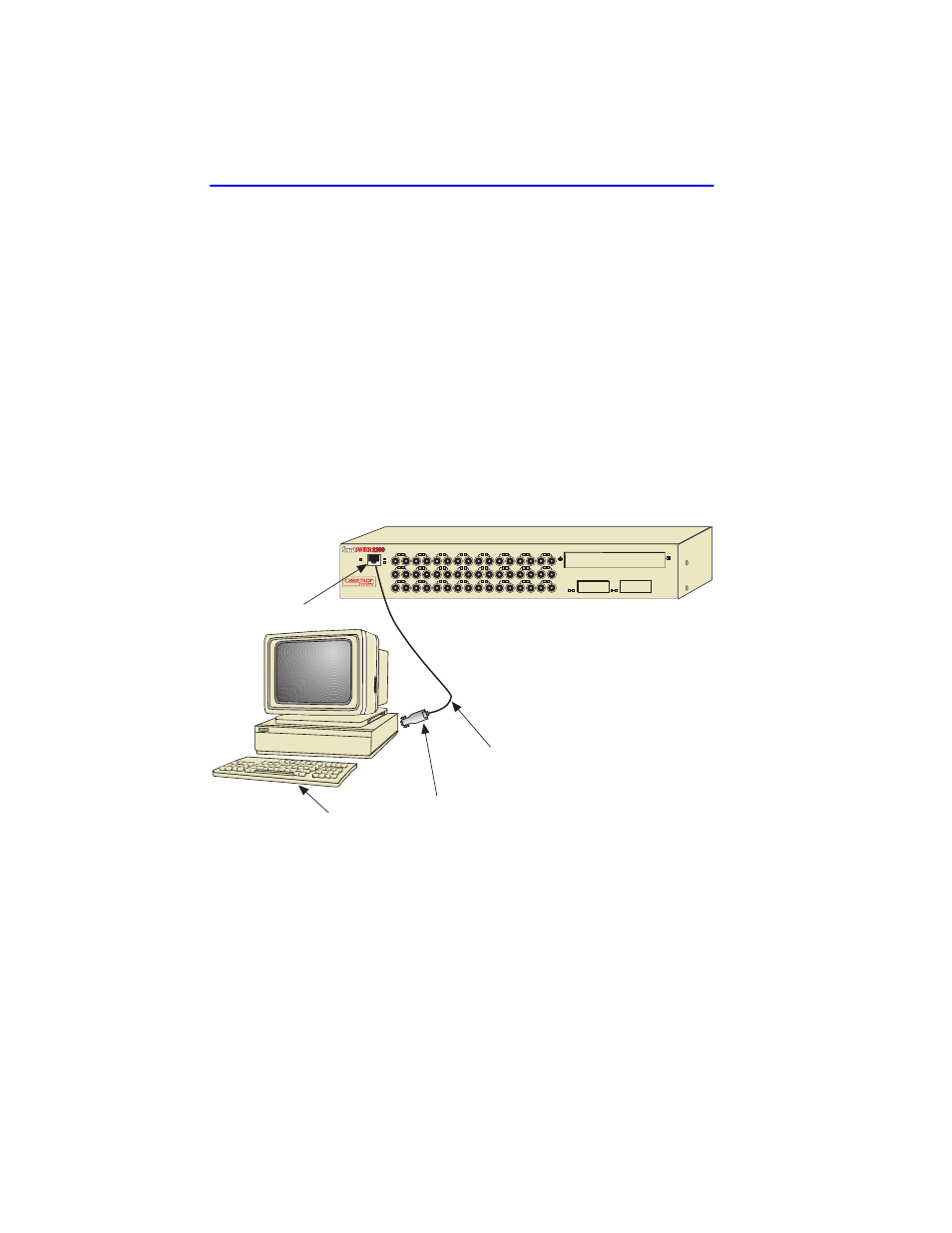

Figure 5-1
Management Terminal Connection
RJ45 COM Port
RJ45-to-DB9
PC Adapter
UTP Cable
with RJ45 Connectors
PC
23141-50
COM
RESET
RX
TX
RX
TX
24
RX
TX
8
RX
TX
16
RX
TX
23
RX
TX
7
RX
TX
15
RX
TX
22
RX
TX
6
RX
TX
14
RX
TX
21
RX
TX
5
RX
TX
13
RX
TX
20
RX
TX
4
RX
TX
12
RX
TX
19
RX
TX
3
RX
TX
11
RX
TX
18
RX
TX
2
10
17
RX
TX
1
RX
TX
9
RX
TX
2E48-27R
26
25
PWR
CPU
