Rack Mounting the 2E4X-27R
Proceed as follows to install the 2E4X-27R into a 19-inch rack:
1. Remove and discard the four cover screws (two from each side)
located along the front edges of each side of the 2E4X-27R.
2. Locate the four 6-32 x 3/8-inch flathead cover replacement screws in
the rackmount kit. Use these screws to attach the rackmount brackets
to the 2E4X-27R as shown in
Figure 3-3 .

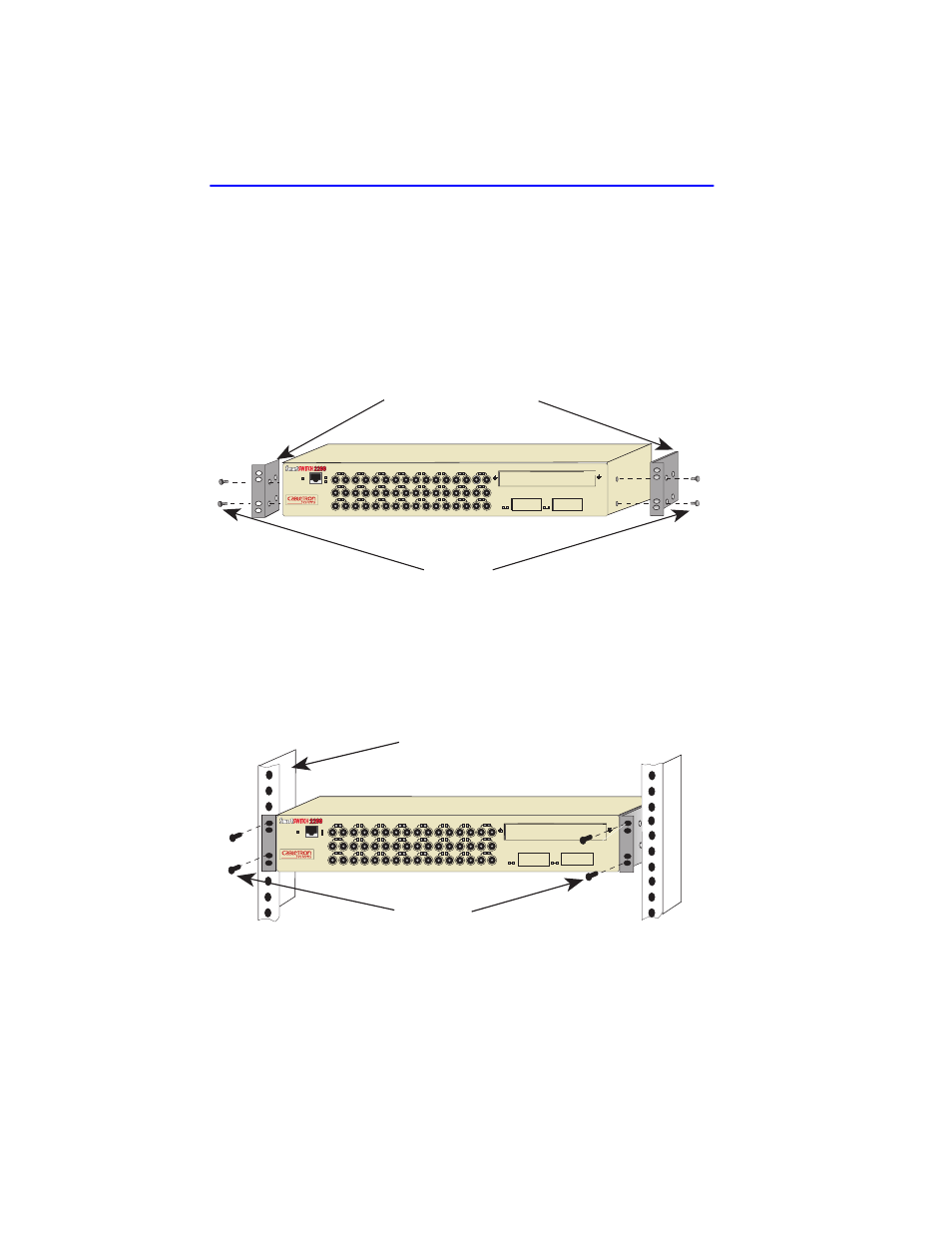

Figure 3-3 Installing the Rackmount Brackets
3. With the mounting brackets installed, position the 2E4X-27R between
the vertical frame members of the 19-inch rack and fasten it securely
with mounting screws as shown in
Figure 3-4 .
Figure 3-4 Installing the 2E4X-27R in a Rack
Screws (4)
Rackmount Brackets (2)
23141-04
