Installing Optional Fast Ethernet Interface Modules
2E48-27R/2E49-27R User’s Guide C-7
C.3 INSTALLING OPTIONAL FAST ETHERNET
INTERFACE MODULES
Figure C-3 shows the locations of the Fast Ethernet Interface Module
connectors on for ports 25 and 26 and the High Speed Interface Module
for port 27.

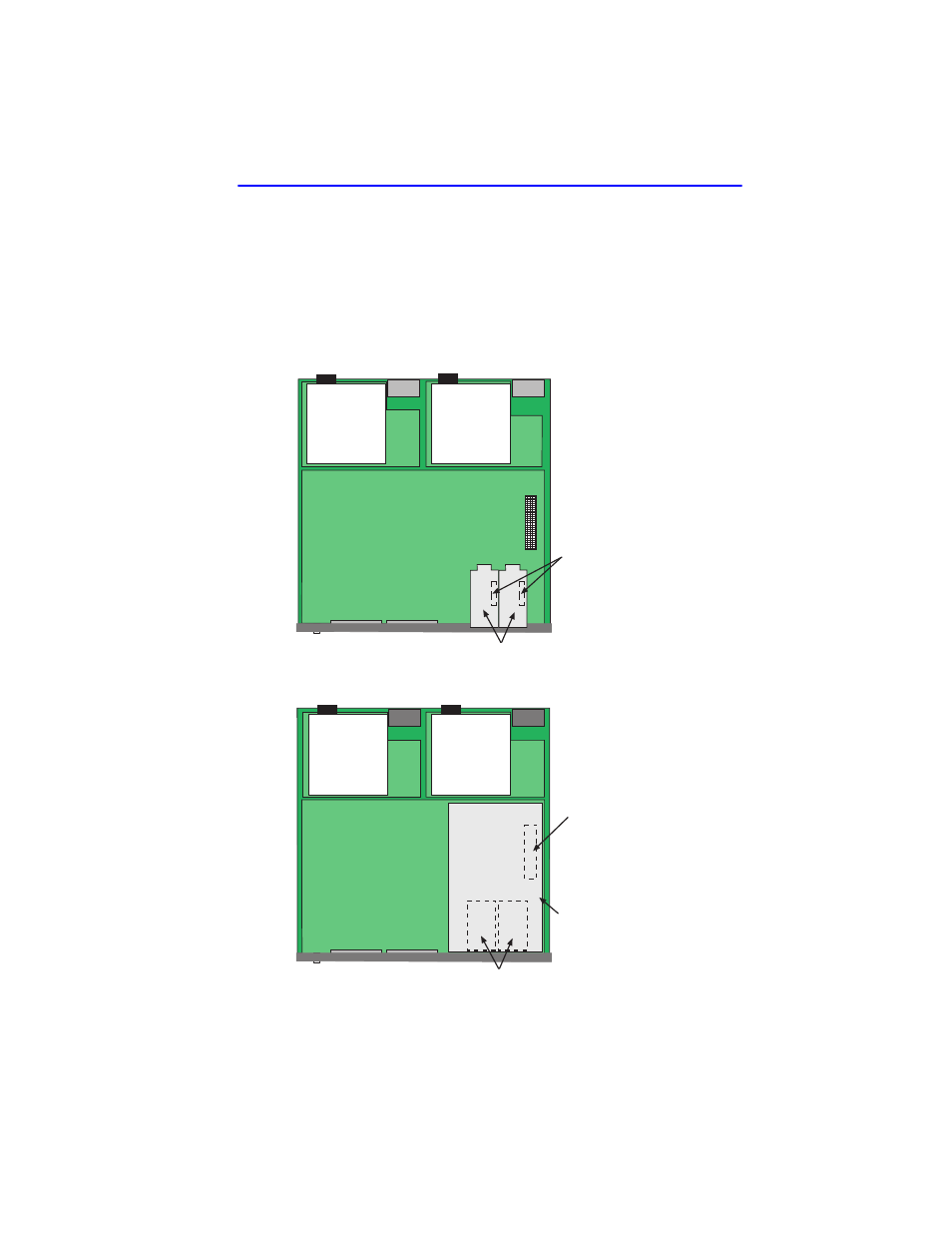

Figure C-3 Fast Ethernet Interface Module Connector Location
23141-11
Optional Fast Ethernet
Interface Modules
Connectors
FRONT PANEL
TOP VIEWS WITHOUT COVERS
Optional HSIM is installed
above the optional Fast
Ethernet Interface Modules
Connector
Optional interface
modules on HSIM FRONT PANEL
Redundant
Power
Supply Primary
Power
Supply
Redundant
Power
Supply Primary
Power
Supply
