FlintWeigh II IPC Technical Manual, Rev. 1.06 November 2011 Page 16 of 36

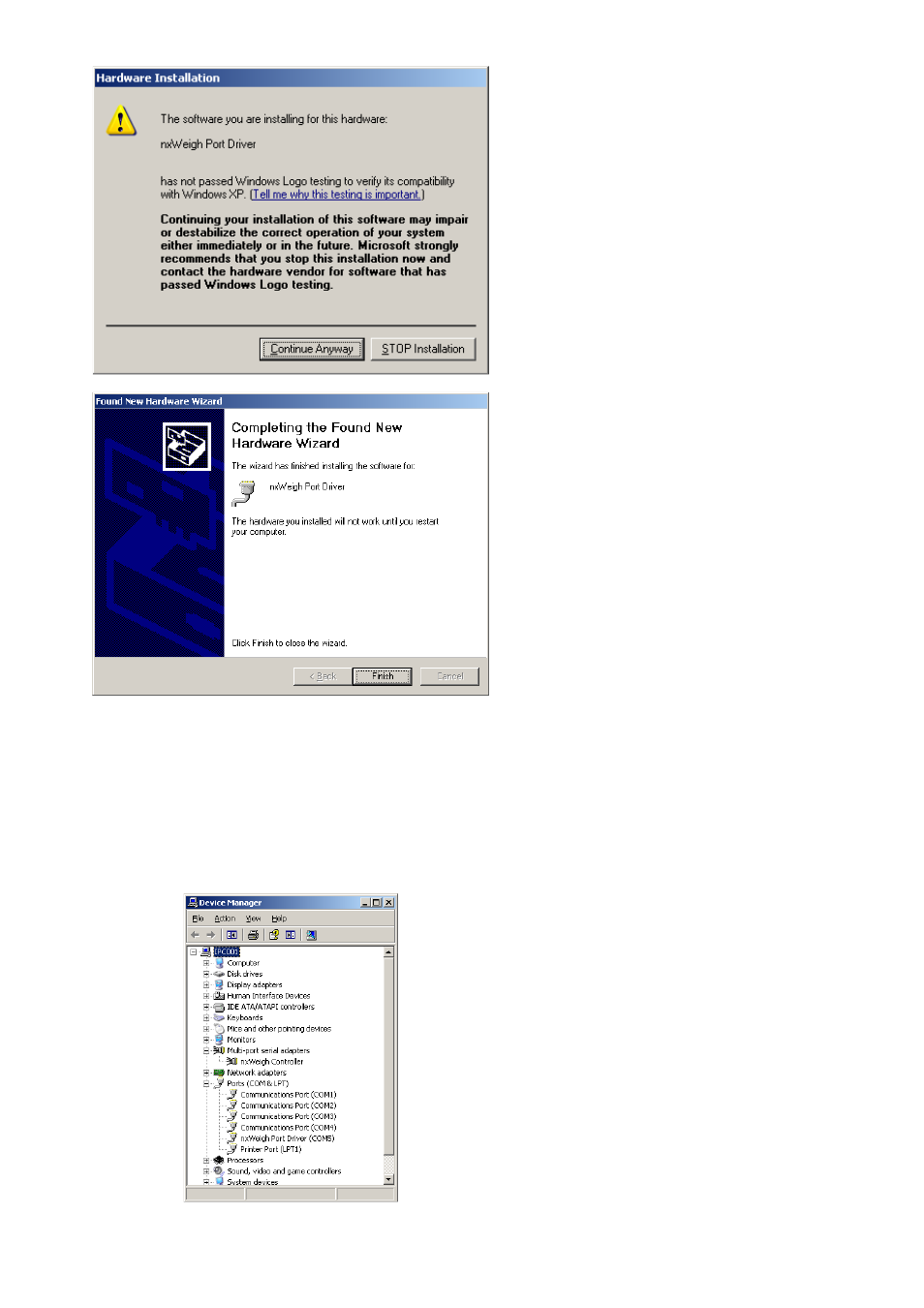

Fig. 5.7: Note about the Windows Logo Test
Confirm by clicking "Continue Anyway".
Fig. 5.8: Completed Installation
After some files from the operating system have
been copied, the card driver installation is finished.
Finish the installation by clicking "Finish".
5.3. Used COM Port
The interface driver of the weighing system controller will use the next free COM port automatically.
For checking or changing the used COM port no. you can proceed as follows:
► Open the Device Manager of the operating system
► Open the section "Connections (COM and LPT)"
The entry "nxWeigh Port Driver" shows the used COM port no.
Fig. 5.9: Device Manager
If you want to change the port no. you can do this
in the following way:
► Select the entry "nxWeigh Port Driver"
► Open the Property window of this port
► Enable the register "Settings"
► Click button "Advanced..."
► Edit the port no.
