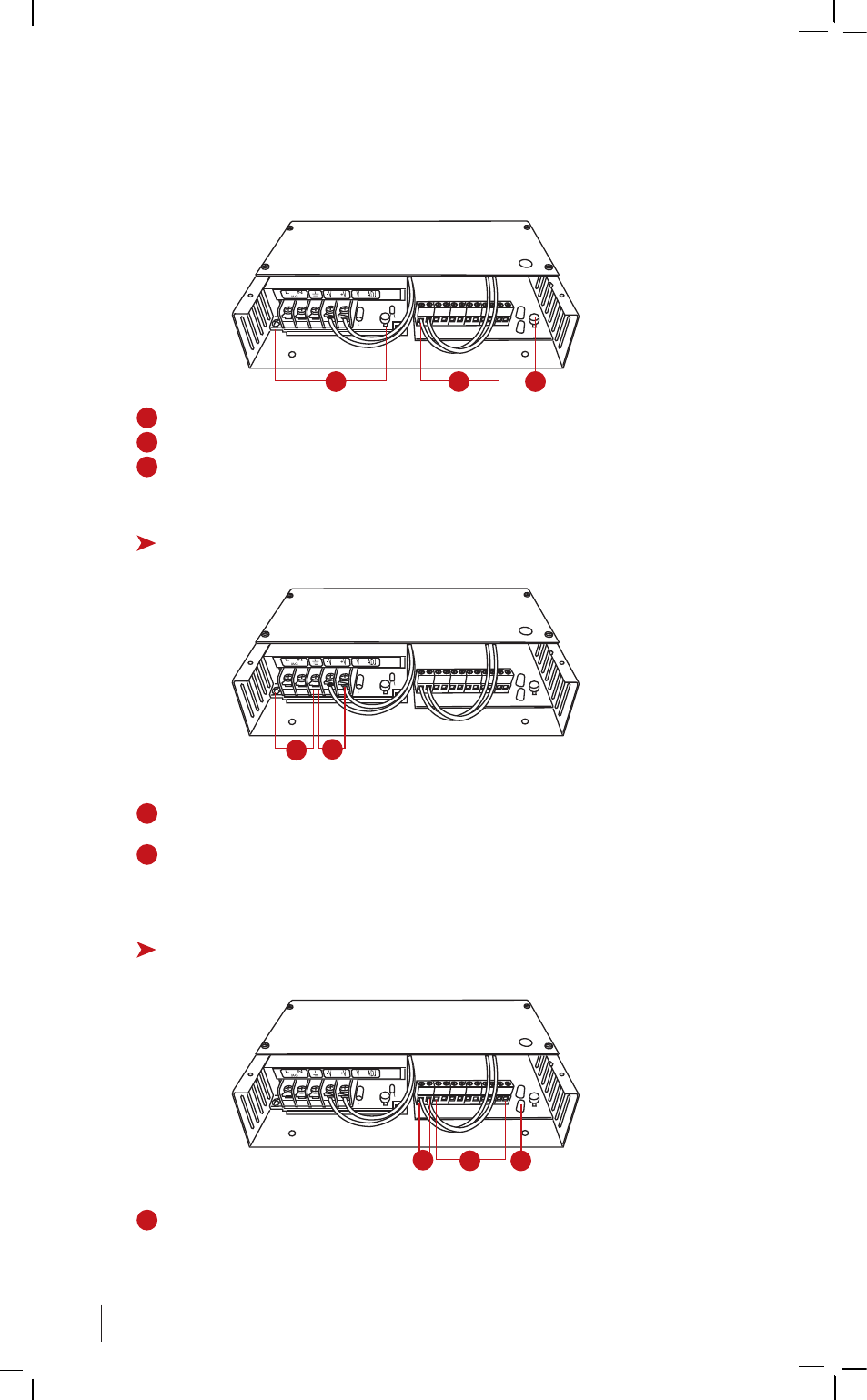

UNDERSTANDING THE DESIGN
AdapTec Plus consists of 2 main modules and a timer:
1 Power supply/power input module
2 Access control/power output module
3 Door lock timer
Power supply/power input module
1 This portion is to be connected to power source with AC110~240V. AC current will
be supplied into this side and a DC 12V 3A current will be generated as output.
2 These two cables, -V and +V are default and are connected to the inner part of
AdapTec. Please do not remove or change these cables.
Access control/power output module
1 These cables connect to a DC12V rechargeable backup battery. During a power failure,
the battery will power up the AdapTec Plus.
