EVCO EC7103 - Manual

Evco S.r
.l. • EC 7-103 • Sheet 1/1
1 PREPARATIONS

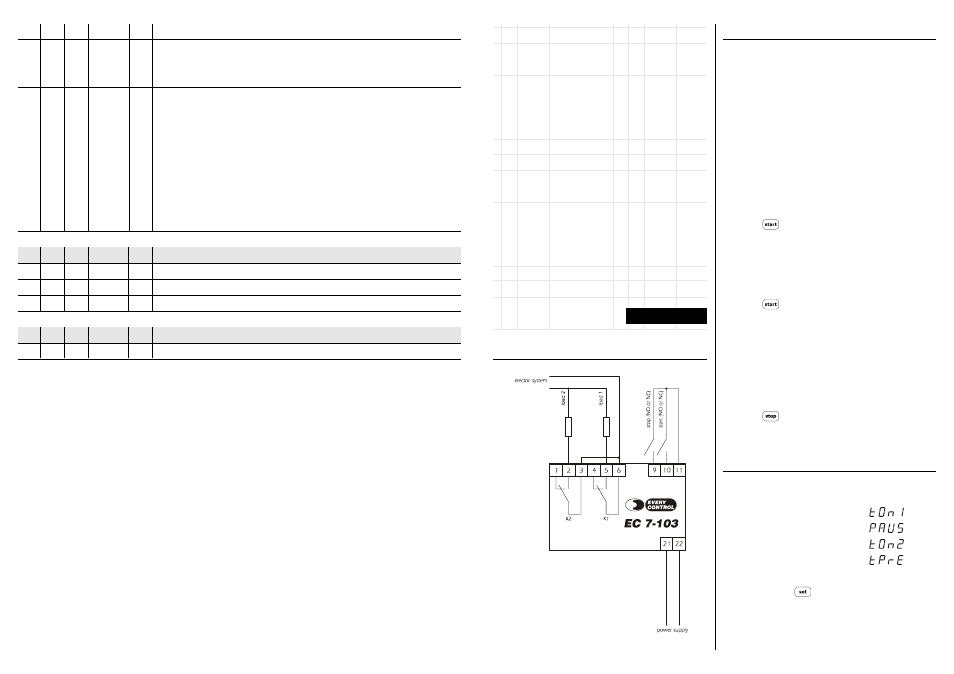

1.1 Electrical connection
smart guide
EC 7-103
Programmable digital timer
Version 1.02 of 28 th March 2006
File ec7103_eng_v1.02.pdf
PT
EVCO S.r.l.
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone 0039-0437-852468 • Fax 0039-0437-83648
[email protected] • www.evco.it
2 OPERATION
2.1 Preliminary information
A full count consists of four phases:
• delay action 1
• action 1 (the load 1 will be ON)
• delay action 2
• action 2 (the load 2 will be ON and the buzzer will utter the
sound you have set with the parameter t3).
As soon as one phase will end, the instrument will automatically
move to the following one.
2.2 How to start the count
If you have to start the count:
• press (3)
(3) if the parameter t4 has value 0000, you could activate the input for remote start
as well; if the parameter t4 has value 0002, you will have to activate this input.
2.3 How to suspend/resume the count
If you have to suspend/resume the count:
• press (4)
(4) if the parameter t8 has value 0000, the function will not be available; if the
parameter t8 has value 0002, you will have to deactivate the input for remote
start.
2.4 How to stop the count
If you have to stop the count:
• press (5)
(5) if the parameter t5 has value 0000, you could activate the input for remote stop
as well; if the parameter t5 has value 0002, you will have to activate this input.
3 COUNT PHASES
3.1 How to set the count phases length
Every phase is associated with a label:
• action 1 label (6)
• delay action 2 label (7)
• action 2 label (8)
• delay action 1 label (9)
If you have to modify the length of one of the phases:
• press and release for selecting the label: the
most significant part of
the display will flash (10) .
ENGLISH
t34 0000 0001 ---- 0000 count showing during action 2 (it is important if t24 ≠ 00:00; 0001 = YES)
t35 0000 0006 ---- 0002 labels the instrument has to show during the procedure indicated at chapter 3
(0000 = no labels, 0001 = tOn1, 0002 = tOn1 and tOn2, 0003 = tOn1, PAUS and tOn2,
0004 = tOn1 and tPrE, 0005 = tOn1, tOn2 and tPrE, 0006 = tOn1, PAUS, tOn2 and tPrE) (15)
t36 0000 0003 ---- 0000 operation after a lack of power supply during the count (0000 = the instrument will interrupt
the count, 0001 = the instrument will interrupt the count, the indication will flash and the
buzzer will utters the sound you have set with the parameter t3, 0002 = the instrument will
resume the count since the beginning of the phase during which the lack of power supply
has taken place, the indication will flash and the buzzer will utters the sound you have set
with the parameter t3, 0003 = it is important if t0, t10 and/or t23 ≠ 0000, the instrument will
resume the count since the lack of power supply has taken place with a maximum error of
60 s, the indication will flash and the buzzer will utters the sound you have set with the
parameter t3)
LABEL MIN. MAX. U.M. DEF. SERIAL NETWORK (EVCOBUS)
L1 1 15 ---- 1 instrument address
L2 0 7 ---- 0 instrument group
L4 0 3 ---- 1 baud rate (0 = 1,200 baud, 1 = 2,400 baud, 2 = 4,800 baud, 3 = 9,600 baud)
LABEL MIN. MAX. U.M. DEF. ACTION 1 LENGTH
tOn1 00:00 (16) (16) 00:00 action 1 length
(12) the unit of measure depends on the parameter t0: if the parameter t0 has value 0000, the maximum value of the parameter will be 99 s and 90 ds; if the parameter t0 has value
0001, the maximum value of the parameter will be 99 min and 59 s; if the parameter t0 has value 0002, the maximum value of the parameter will be 99 h and 59 min
(13) the unit of measure depends on the parameter t23: if the parameter t23 has value 0000, the maximum value of the parameter will be 99 s and 90 ds; if the parameter t23 has
value 0001, the maximum value of the parameter will be 99 min and 59 s; if the parameter t23 has value 0002, the maximum value of the parameter will be 99 h and 59 min
(14) except what you have set with the parameters t12 and t21
(15) if the parameter has value 0000, the value you can set by using the procedure indicated at chapter 3 is action 1 length
(16) the unit of measure depends on the parameter t10: if the parameter t10 has value 0000, the maximum value of the parameter will be 99 s and 90 ds; if the parameter t10 has
value 0001, the maximum value of the parameter will be 99 min and 59 s; if the parameter t10 has value 0002, the maximum value of the parameter will be 99 h and 59 min.
