ELECTRIC CONNECTION
12.1 Preliminary notes

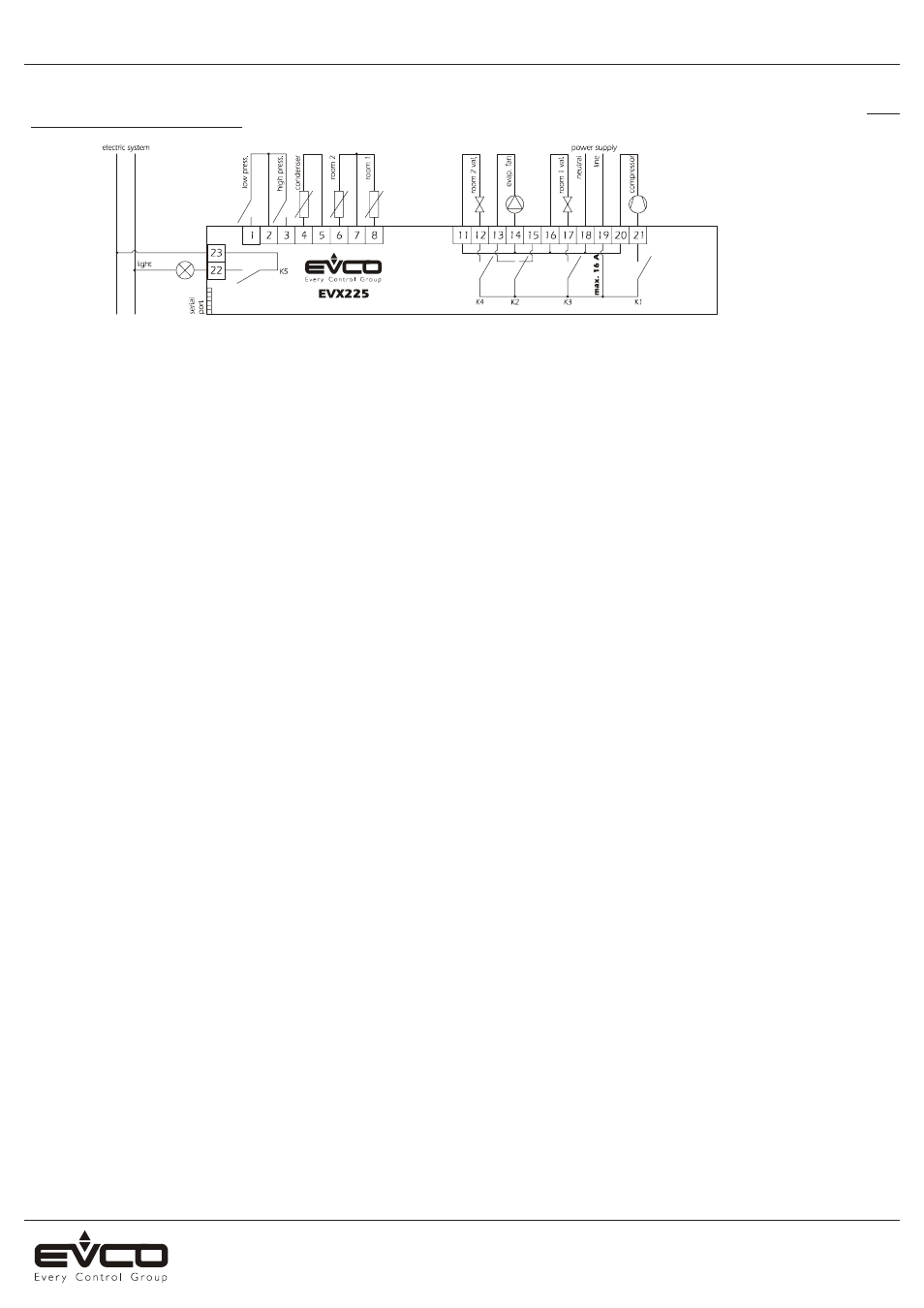

With reference to the electrical wiring diagrams:
• the unit connected to and operated by the fifth outpt depends on parameter u11
• the serial port is the port for communicating with the programming key, the set-up software system and the supervision system (through a serial interface, via TTL, with MODBUS communications protocol); the port
must not be used for these purposes simultaneously.
12.2 Electrical wiring
12.3 Electrical wiring warnings
• do not use electric or pneumatic screwers on the terminal blocks
• if the instrument was brought from a cold place to a hot one, humidity may condense inside the instrument; wait approximately one hour before switching on the power
• make sure that the power supply voltage, frequency, and the electric operating power of the instrument are compatible with the those of the local power voltage
• disconnect the power before performing any type of maintenance operation
• do not use the instrument as a safety device
• for information about the instrument and repairs contact a member of the EVCO sales network.
